Eaton ATS Rack PDU 2.88 kW Max 110-125V 24A 1U 8 Outlet Single-Phase PDU

Elevate your data center reliability with the Eaton ATS Rack PDU, a compact yet powerful power distribution solution engineered for high-demand rack environments. This 1U, single-phase PDU delivers up to 2.88 kW of dependable power at 110–125V across eight NEMA 5-20R outlets, making it an ideal choice for servers, switches, storage arrays, and other critical IT gear. Built for performance and controlled by intelligent load management, it provides remote relay control and real-time monitoring to help you optimize energy use, simplify maintenance, and reduce downtime. Whether you’re outfitting a new rack, upgrading an aging distribution unit, or expanding capacity, the Eaton ATS Rack PDU combines robust construction with smart features to keep your equipment power-ready and easy to manage.

• Powerful 2.88 kW capacity at 110–125V with 24A maximum current delivers steady, scalable power to eight devices in a compact 1U footprint, giving you headroom for routine spikes and future growth.

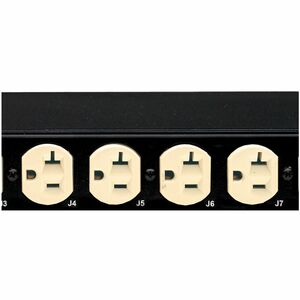

• Eight NEMA 5-20R receptacles provide broad compatibility with common IT gear—from servers and blades to network gear—while offering accessible, front-facing outlets for convenient cabling and labeling.
• Remote controlled relay and integrated load monitoring deliver outlet-level control and real-time visibility into energy use, enabling proactive troubleshooting, streamlined maintenance, and smarter capacity planning.
• Compact 1U rack-mountable design fits standard data center racks, maximizing space efficiency while maintaining rugged construction, reliable operation, and clean cable management for a professional rack environment.
• NEMA L5-30P locking plug input enhances safety and retention in vibration-prone or mobile rack setups, ensuring a secure mains connection for reliable power delivery in demanding deployments.

Technical Details of Eaton ATS Rack PDU

• Power rating: 2.88 kW (max)
• Voltage: 110–125 V
• Current: 24 A
• Phase: Single-phase
• Outlet configuration: 8 x NEMA 5-20R
• Mounting: 1U rack-mountable
• Input plug: NEMA L5-30P locking plug
• Monitoring: Load monitoring with outlet-level visibility
• Control: Remote controlled relay for outlet management
• Form factor: 1U height suitable for standard 19-inch racks

How to install Eaton ATS Rack PDU

• Position the PDU in a standard 19-inch rack and secure it in the 1U slot using the provided mounting hardware.
• Connect the NEMA L5-30P input plug to a compatible 110–125V power source with appropriate circuit protection and grounding.
• Route and connect devices to the eight NEMA 5-20R outlets, taking care to balance the load across outlets and minimize cable congestion.
• Configure the remote relay functionality and enable load monitoring through your data-center management system or Eaton-compatible software to begin real-time monitoring and control.
• Test power delivery by powering on devices, verify outlet status indicators, and document circuit mappings for ongoing power management and future maintenance.

Frequently asked questions

• What is the maximum power output of this PDU? — Up to 2.88 kW at 110–125V, with a 24A maximum current rating, providing reliable distribution for eight outlet connections.
• How many outlets does it have and what type? — Eight NEMA 5-20R receptacles, designed for common IT equipment used in data centers and server rooms.
• Is this a 1U rack-mountable PDU? — Yes, engineered to fit standard 19-inch racks in a compact 1U form factor for space-efficient deployments.
• Does it support remote monitoring and control? — Yes, it includes a remote controlled relay and built-in load monitoring to help manage power usage and perform controlled power cycling as needed.
• What incoming power plug is used? — The PDU uses a NEMA L5-30P locking plug for secure, vibration-resistant connection in suitable environments.
