Eaton Basic PDU 0U — L14-30P Input, 5.76 kW

Power distribution for data centers, server rooms, and lab environments demands reliability, space efficiency, and flexible capacity. The Eaton Basic PDU delivers all three with a compact 0U footprint, a versatile outlet mix, and a robust L14-30P input that supports 120/240V operation at up to 24A. With a total capacity of 5.76 kW, this basic ePDU provides dependable power delivery for rack‑mounted IT gear while keeping installation simple and costs predictable. The 10 ft cord offers flexible reach across rows, cages, or cabinets, making deployment straightforward in standard 19-inch racks. From edge deployments to mid‑size data centers, the Eaton Basic PDU is engineered to meet demanding environments with clear, reliable power distribution that’s easy to install and easy to maintain.

• 0U compact form factor: A space-saving rack‑mountable design that fits into tight data center enclosures without sacrificing capacity or performance.

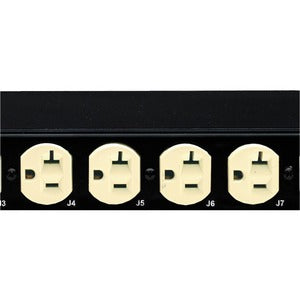

• Versatile outlet mix: Eight 5‑20R outlets, twenty C13 outlets, and six C19 outlets accommodate a wide range of servers, switches, storage devices, and network gear in a single distribution unit.
• L14-30P input for robust power delivery: Provides 120/240V, 60 Hz operation with a continuous rating of 24 A, delivering up to 5.76 kW at 240V for mid‑to‑large deployments.
• Long cord for flexible installation: A 10‑ft (3.0 m) power cord enables easy routing across racks, aisles, and power distribution zones without crowding cables.
• Trusted, compliant design: TAA compliant with Eaton’s reputation for reliability, durability, and compatibility with standard rack infrastructures.

Technical Details of Eaton Basic PDU

• Form factor: 0U, rack‑mountable
• Input plug: NEMA L14-30P, 120/240V, 60 Hz
• Continuous electrical rating: 24 A (maximum continuous load), 5.76 kW at 240V
• Cord length: 10 ft (3.0 m)
• Outlet configuration: 8 x NEMA 5-20R, 20 x C13, 6 x C19
• Mounting: Rack‑mount compatible with standard 19" racks
• Compliance: TAA compliant

How to install Eaton Basic PDU

Installing the Eaton Basic PDU is a straightforward process designed for quick rollout in new or existing racks. Follow these steps to achieve a safe, compliant setup that maximizes uptime and performance.

• 1. Verify power and space: Confirm a suitable 120/240V supply and a dedicated circuit capable of delivering up to 30A (for the L14-30P input) while allowing 24A continuous load on the PDU. Ensure there is enough vertical space in the rack to accommodate the 0U form factor and cable management needs.
• 2. Prepare the rack: Position the PDU in the intended rack location. Use the included mounting hardware to secure the unit to the rack rails, ensuring stability and proper airflow around the unit.
• 3. Connect the input power: Plug the 10‑ft cord end into the L14-30P receptacle or a compatible power distribution source on the rack side, then connect the other end to the appropriate power distribution panel or isolation point. Ensure connections are snug and compliant with local electrical codes.
• 4. Load the outlets: Start connecting IT equipment to the appropriate outlets: reserve critical devices for NEMA 5‑20R if required, and distribute higher‑draw devices (C13/C19) across the PDU to balance load and avoid overloading any single circuit.
• 5. Power on and validate: Turn on the PDU and verify that all outlets are delivering power. Use device power indicators or a connected management tool, if available, to monitor load distribution and ensure none of the circuits exceed recommended limits.
• 6. Organize and document: Route cables neatly using cable ties or organizers to maintain good airflow and simplify future maintenance. Document circuits and outlet mappings for quick reference during audits or upgrades.

Frequently asked questions

• Q: What outlets are included on the Eaton Basic PDU?
• A: The unit provides eight NEMA 5-20R outlets, twenty C13 outlets, and six C19 outlets to support a broad range of IT devices in a single, organized power strip solution.
• Q: What is the input and electrical rating?
• A: It uses a NEMA L14-30P input with 120/240V, 60 Hz operation and a continuous rating of 24 A, delivering up to 5.76 kW at 240V.
• Q: How long is the power cord?
• A: The PDU is equipped with a 10‑ft (3.0 m) cord to accommodate typical rack layouts and spacing.
• Q: Is this PDU compliant with government procurement standards?
• A: Yes. This is a TAA-compliant Basic ePDU designed to meet regulatory and procurement requirements in many government and regulated environments.
• Q: What is the mounting format?
• A: It is a 0U, rack‑mountable basic PDU intended for 19" racks, enabling efficient use of vertical space and simple integration into existing infrastructure.
• Q: Can I mix loads across the outlets?
• A: Yes. The diverse outlet mix supports balanced distribution of servers, storage, and network gear, helping to prevent overloading a single outlet group and supporting cleaner cable management.
