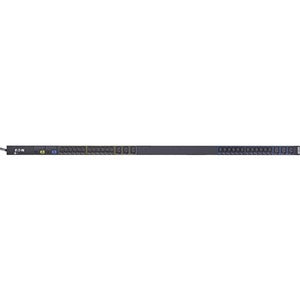

Eaton Basic Rack PDU 0U — L6-30P Input, 1.92 kW Max, 200-240V, 16A, 10 ft Cord, 24 C13 + 6 C19 Outlets

Designed for reliable and cost-effective power distribution in demanding data centers, the Eaton Basic rack PDU delivers essential, high-quality power management in a minimal 0U footprint. This compact, single-phase PDU is engineered to fit the needs of modern IT environments, balancing performance with straightforward installation and procurement. With a power range that suits mid-load racks and a receptacle mix that covers common server, storage, and networking equipment, it’s a practical choice for organizations seeking dependable distribution without the complexity or cost of higher-end models. The Eaton Basic rack PDU is part of a broader line that emphasizes reliability, rugged construction, and ease of integration into 19" racks, making it a staple for startups expanding their data center as well as established facilities upgrading to more efficient, organized power distribution.

• The 0U rack-mount form factor maximizes vertical rack space, enabling dense, orderly cabling while delivering up to 1.92 kW of total distributed power. With a configuration of 24 C13 outlets and 6 C19 outlets, this PDU covers a wide range of IT devices—from blade servers to storage arrays and networking gear. The outlet grips provide secure retention for power cords, reducing accidental disconnections and cable strain in busy data center environments. This combination of capacity and outlet mix helps operators keep critical devices powered and accessible without crowding the rack or complicating cable management.
• Power delivery is built around a robust, simple-to-install input and voltage profile: L6-30P input, 200-240V, 16A, single-phase, paired with a 10 ft cord for flexible placement within the rack and around furniture or other equipment. The 200-240V specification aligns with common data center and edge deployments, while the 16A current rating provides a comfortable headroom for typical IT loads. The length of the cord enables versatile mounting options, supporting clean, organized cable runs from a centralized power source to the PDU and downstream devices.
• Outlet configuration and cable management are designed to support high-density deployments with practical maintenance in mind. The PDU features 24 C13 outlets and 6 C19 outlets, all equipped with grips to help secure cords and simplify reconfiguration as equipment is swapped or expanded. This arrangement supports a broad spectrum of devices, from standard servers to high-performance networking gear, while keeping cords off the floor and away from foot traffic. The combination of C13 and C19 outlets ensures compatibility with a wide array of power cords and devices commonly used in data centers and enterprise IT rooms.
• Reliability, compliance, and long-term value are central to the Eaton Basic line. This PDU is designed for consistent, cost-effective power distribution without unnecessary extras, making it an economical choice for new builds, retrofits, or facilities seeking proven, scalable power management. The rack-mount design and durable construction are complemented by Eaton’s reputation for reliability, supported by a global service network. The unit is TAA compliant, aligning with procurement requirements for government and certain enterprise customers, and providing a trusted option for organizations that must meet strict sourcing guidelines.
• Installation flexibility and space efficiency empower data-center operators to maximize their infrastructure. The 0U footprint is ideal for high-density racks and front-to-back cable routing, enabling clean, accessible layouts in both new installations and upgrades. The PDU’s compatibility with standard 19" racks simplifies integration with existing IT hardware and mounting rails, while the straightforward electrical configuration minimizes installation time and risk. For facilities prioritizing rapid deployment, predictable performance, and straightforward maintenance, this Eaton Basic PDU delivers a dependable power backbone without introducing unnecessary complexity.

Technical Details of Eaton Basic Rack PDU

• Form Factor: 0U rack-mount
• Input: L6-30P, 200-240V, 16A, single-phase
• Cord Length: 10 ft
• Maximum Power: 1.92 kW
• Outlets: 24 x C13 outlets with grips, 6 x C19 outlets with grips
• Components: Outlets configured for versatile IT equipment load
• Compliance: TAA compliant
• Mounting: 19" rack compatible

How to Install Eaton Basic Rack PDU

Installing the Eaton Basic Rack PDU is a straightforward process designed to minimize downtime and simplify maintenance. Follow these steps to ensure a safe, compliant, and reliable setup that maximizes the efficiency of your power distribution in a data center or IT room.

1) Plan and verify electrical requirements — Before installation, confirm that your facility power circuit supports 200-240V, 16A, single-phase operation. Verify the availability of a suitable power source with a 10 ft cord reach and ensure that the circuit can handle the anticipated load (up to 1.92 kW across the connected devices). Consider the layout of your racks to determine the best location for the PDU to minimize cable clutter and provide convenient access to each outlet.

2) Prepare the rack and mounting — Identify a suitable 19" rack with the correct depth to accommodate the PDU and its downstream power cords. Align the PDU with the rack rails, ensuring that it sits securely at the desired height in the 0U space. Use the provided mounting fasteners and follow your facility’s standard rack installation procedures to prevent movement or vibration that could loosen connections over time.

3) Connect the input power — With the rack secure, locate a suitable 200-240V, 16A power source and connect the L6-30P plug on the PDU’s end of the 10 ft cord. Ensure the power source is dedicated to avoid overloading the circuit. Avoid daisy-chaining PDUs or plugging the PDU into multi-tower power strips, which could compromise performance and safety. Confirm that the connection is firm and fully seated to prevent arcing or disconnection during operation.

4) Route downstream power cords — Begin plugging your IT devices into the PDU’s 24 C13 and 6 C19 outlets, distributing load evenly to avoid overloading any single outlet bank. Route cords neatly toward their devices to reduce tangling and make future reconfigurations easier. Use cable ties or Velcro straps where appropriate to maintain a tidy and accessible cabling plan, while ensuring cords do not exert undue stress on connectors or pins.

5) power up and verify — After all connections are secure, switch on power at the circuit or source and verify that the PDU accepts input power and that all outlets are delivering power to devices. Observe for any unusual heat, buzzing, or fault indicators. If your IT equipment isn’t receiving power at a particular outlet, reseat connectors and verify that the devices are plugged into the correct receptacles. Document the installation for future maintenance and audits.

Frequently asked questions

• What outlets does this Eaton Basic Rack PDU provide? It includes 24 C13 outlets and 6 C19 outlets, each with outlet grips to secure cords and improve cable management in busy data centers.
• What is the maximum power rating? The PDU supports up to 1.92 kW of distributed power, suitable for mid-density racks and typical IT deployments without overloading the circuit.
• What is the input configuration? It uses a single-phase L6-30P input operating at 200-240V and 16A, with a 10 ft cord to accommodate flexible rack layouts.
• Is this PDU compliant with procurement standards? Yes, it is TAA compliant, meeting requirements for government and certain enterprise purchasing programs.
• What is the footprint and mounting compatibility? The unit is a 0U, 19" rack-mount PDU, designed to fit standard data center racks and integrate seamlessly with compatible equipment.
• Can this PDU be used in existing racks or only new installations? It is suitable for both new deployments and retrofits, offering a compact, scalable solution for distributing power to IT gear in established rack environments.
