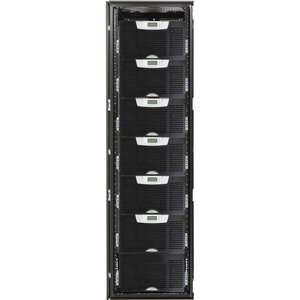

Eaton BladeUPS: Scalable 36 kVA Modular UPS for Rack-Mounted Power Protection

The Eaton BladeUPS is a revolutionary power quality solution designed for modern data centers, telecoms rooms, and critical IT environments that demand uninterrupted performance, scalable protection, and simplified cooling. This modular, 19-inch rack UPS delivers robust power protection from 12 to 60 kW in a single chassis, enabling you to grow without swapping systems. Built to reduce energy use and cooling costs while delivering rock-solid reliability, the Eaton BladeUPS is engineered to keep your essential equipment running smoothly, even under demanding loads and challenging conditions. If you’re seeking a compact, scalable UPS that maximizes uptime, minimizes total cost of ownership, and fits neatly into standard rack footprints, BladeUPS stands out as a premier choice in power protection technology.

• Modular and scalable design: Expand power protection from 12 kW up to 60 kW within a single 19-inch rack, enabling seamless capacity growth as your IT needs evolve.
• Compact 19-inch rack compatibility with fixed connection: A smart, space-saving solution that installs quickly in standard racks while offering a reliable fixed electrical connection for steady performance.
• High efficiency and controlled cooling: Engineered to optimize energy use and reduce cooling demands, with distinct heat profiles for different operating modes (HE mode and Normal mode) to manage thermal load effectively.
• Power metrics that match demanding workloads: 36 kVA / 36 kW rating with an input/output configuration of 208Y/120V and a current of 108 A, providing ample headroom for critical systems while maintaining stable voltage and power quality.
• Ready for networks and expansion: Two units available for fast deployment, with one slot already occupied by a Network Card to enable remote monitoring and management of power protection across your infrastructure.

Technical Details of Eaton BladeUPS

• Power rating: 36 kVA / 36 kW
• Input voltage: 208Y/120V
• Output current: 108 A
• Connection type: Fixed connection
• Form factor: 19-inch rack, scalable from 12 to 60 kW in a single chassis
• Heat dissipation: 4296 BTU/hr in HE mode; 12282 BTU/hr in Normal mode
• Available units: (2) available
• Network card: 1 slot filled with Network Card

How to Install Eaton BladeUPS

• Prepare the installation area: Verify the rack space, ensure adequate ventilation, and confirm electrical room clearances. BladeUPS requires a stable power environment and appropriate clearance for airflow and service access.
• Mount the BladeUPS in the 19-inch rack: Use the included rails and hardware to securely mount the unit in a compatible rack chassis. Ensure the unit is level and firmly fastened to handle the weight and live loads safely.
• Establish electrical connections: Connect the fixed input supply to the appropriate 208Y/120V circuit as specified by the installation manual. Verify that circuit breakers and grounding are correctly configured to support safe operation and fault isolation.
• Install and configure Network Card: If not already present, install the Network Card in the allocated slot to enable remote monitoring, alerting, and management through the UPS management software. Configure network settings according to your IT policies.
• Power-on and validation: Power up the BladeUPS and perform initial self-tests and firmware checks. Validate output voltage, waveform quality, and battery or modular module health. Confirm that monitoring and alarm systems are reporting correctly to your data center infrastructure management (DCIM) tools.

Frequently asked questions

• Q: What makes the Eaton BladeUPS suitable for scalable data center deployments?

  A: BladeUPS is designed as a modular, scalable solution that expands from 12 kW to 60 kW within a single 19-inch rack. This means you can start small and add capacity as your IT load grows, avoiding full system replacement and reducing total cost of ownership while maintaining consistent power quality.

• Q: How does the HE mode differ from Normal mode in BladeUPS, and why does it matter for cooling?

  A: HE (High Efficiency) mode optimizes power conversion and reduces heat output, resulting in lower BTU/hr than Normal mode. This translates to reduced cooling requirements in the data center, helping lower energy costs and improving overall energy efficiency without compromising uptime or performance.

• Q: Can two BladeUPS units be deployed together, and what about redundancy?

  A: Yes. The BladeUPS architecture supports multi-unit configurations in a single rack, enabling higher power protection and redundancy. With two units available for deployment and a configurable network card, you can implement N+1 or other redundancy schemes to maximize uptime for critical workloads.

• Q: What management capabilities does the Network Card enable?

  A: The Network Card provides remote monitoring, real-time alerts, event logs, and integration with power management software. IT teams can proactively manage power quality, schedule maintenance, and quickly respond to events without onsite visits.

• Q: What environments are ideal for BladeUPS?

  A: BladeUPS is ideal for data centers, enterprise IT rooms, and telecom facilities where space is at a premium and scalable, reliable power protection is essential. Its modular rack-mounted design makes it suitable for growing workloads, high-availability systems, and rooms with strict cooling budgets.
