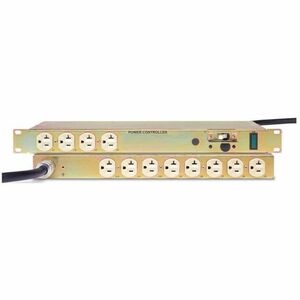

Eaton ePDU TPC12F-A2 12-Outlets 1.92kW PDU

Meet the Eaton ePDU TPC12F-A2, a compact, high-performance power distribution unit designed for modern data centers, server rooms, and network closets. This 1U, horizontal rack-mountable PDU delivers reliable, remote-controlled power distribution across 12 outlets, helping IT teams maximize uptime, simplify energy management, and streamline cabling in dense rack environments. With a 120 V AC input and a robust 1.92 kW power rating, the TPC12F-A2 is built to handle the demanding, continuous power needs of today’s critical infrastructure while offering precise control and visibility into power usage. Whether you’re powering rack-mounted servers, network gear, or storage devices, this Eaton ePDU provides dependable distribution, flexible outlet configuration, and intelligent monitoring to support efficient, data-driven operations.

• 12 x NEMA 5-20R outlets for flexible, dense power distribution: The TPC12F-A2 provides twelve high-capacity NEMA 5-20R receptacles, enabling clean, organized cabling and scalable power delivery to a mix of servers, switches, storage arrays, and other rack-mounted equipment. This outlet configuration is ideal for data centers and IT closets that require multiple devices to share a common power feed while maintaining separate, easily accessible outlets for each device.
• NEMA L5-15P input with 120 V AC supply and 1U horizontal form factor: Designed to fit standard 120 V data-center environments, the PDU uses a NEMA L5-15P inlet and fits in a single 1U rack space in a horizontal orientation. This compact footprint keeps your rack neat and accessible, leaving space for cable management and airflow while delivering reliable power.
• Remote controlled relay and load monitoring for real-time power management: The TPC12F-A2 includes remote power control and load monitoring capabilities, allowing administrators to cycle power to individual outlets or groups, monitor current draw, and identify abnormal power usage across connected devices. This enables proactive maintenance, faster troubleshooting, and improved uptime for critical equipment.
• High reliability, rugged build, and data-center-grade performance: Built to withstand the rigors of continuous operation in busy data centers and server rooms, this Eaton ePDU emphasizes dependable power distribution and a robust enclosure. With precise outlet control and real-time monitoring, it supports consistent performance for essential IT workloads and storage environments.
• Versatile integration with Eaton’s power management ecosystem: The TPC12F-A2 is designed to work seamlessly with Eaton’s broader family of power management tools, enabling centralized control, energy analytics, and unified alerting. This compatibility helps IT teams optimize energy use, plan capacity, and coordinate with other Eaton devices for cohesive infrastructure management.

Technical Details of Eaton ePDU TPC12F-A2 12-Outlets 1.92kW PDU

• Model: TPC12F-A2
• Outlets: 12 x NEMA 5-20R
• Input: NEMA L5-15P, 120 V AC
• Power rating: 1920 W (1.92 kW)
• Height / Form factor: 1U, Horizontal rack-mountable
• Remote power control: Remote controlled relay
• Load monitoring: Yes
• Receptacle type: NEMA 5-20R
• Mounting: Rack-mountable enclosure suitable for standard data-center racks

How to install Eaton ePDU TPC12F-A2

• Plan your rack layout: Identify a suitable 1U space in your equipment rack that provides adequate clearance for ventilation and cable management. Ensure there is a stable, properly grounded power source setup that matches the 120 V AC input requirements of the TPC12F-A2.
• Prepare the rack: If your rack uses front-mill or square-hole mounting, verify you have the appropriate mounting rails and screws. The TPC12F-A2 is designed for horizontal, 1U installation, so position it where outlets remain accessible and away from densely packed cables.
• Mount the PDU: Secure the PDU to the rack using the included mounting hardware. Align the unit with the rack’s vertical posts and tighten fasteners to ensure a secure, vibration-resistant installation appropriate for temperature-controlled environments and near-dense cabling.
• Connect the power input: Plug the NEMA L5-15P inlet into a compatible 120 V power distribution circuit or PDU output, making sure that the circuit can handle the 1.92 kW maximum load. Confirm that the inlet cable is routed cleanly to avoid strain on the plug and to maintain proper clearance for airflow and maintenance access.
• Connect devices to outlets and configure monitoring: Distribute servers, switches, storage, and other devices across the 12 NEMA 5-20R outlets. If you are using Eaton’s management software or interface, configure remote relay control and enable load monitoring for real-time visibility into outlet-level power usage. Test power-on sequence and verify that each outlet reflects the expected status in the monitoring dashboard.
• Power-on validation and ongoing management: After powering on, verify that all connected devices receive stable power, monitor for any uneven current draw, and adjust outlet assignments as needed. Use the remote control features to power-cycle non-responsive equipment, and review load data regularly to optimize capacity and energy efficiency.

Frequently asked questions

• What outlets does the Eaton ePDU TPC12F-A2 provide? It features 12 x NEMA 5-20R outlets for flexible, versatile power distribution to rack-mounted equipment.
• What is the input power specification? The PDU uses a NEMA L5-15P input rated for 120 V AC, suitable for standard office and data-center power environments.
• Does it support remote power control and load monitoring? Yes. The TPC12F-A2 includes a remote controlled relay and load monitoring to manage power and observe consumption in real time.
• What is the physical form factor? This unit is a 1U, horizontal, rack-mountable PDU designed to fit in standard data-center racks while preserving space for airflow and cable management.
• Is the PDU compatible with other Eaton power management tools? It is designed to integrate with Eaton’s broader power management ecosystem for centralized monitoring, control, and analytics, helping you optimize uptime and energy efficiency across your IT infrastructure.
