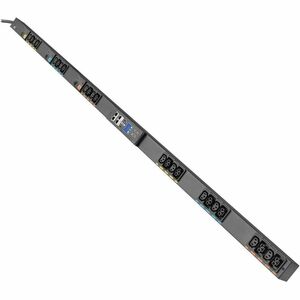

Eaton G4 24-Outlets PDU

The Eaton G4 24-Outlets PDU (EVMA2120A) is engineered for data centers, colocation facilities, and distributed IT environments that demand robust, reliable, and scalable power distribution. This three-phase managed PDU is purpose-built to streamline procurement and deployment within a 42U rack, delivering disciplined power provisioning for dense IT workloads and high-rise racks. Built on Eaton’s trusted engineering, the G4 generation emphasizes improved reliability, enhanced energy visibility, and smarter load management to help data center managers optimize uptime, reduce energy waste, and simplify operations. Designed to support the most demanding deployments, the Eaton G4 24-Outlets PDU integrates seamlessly into enterprise-grade infrastructure, helping IT teams gain granular control over power, track consumption, and ensure devices receive clean, consistent power in mission-critical environments.

• 24 outlets in a compact, rack-friendly footprint to maximize density in a 42U data center rack while keeping cabling organized and accessible.
• Three-phase power distribution engineered for large-scale IT loads, enabling efficient, balanced power delivery across servers, storage, and networking gear.
• Managed PDU capabilities provide remote monitoring and control, enabling proactive management, outage alerts, and policy-based power usage across the rack.
• Rugged, enterprise-grade design tailored for data centers, colocation facilities, and distributed IT infrastructure that require reliable uptime and scalable deployment.
• Designed to simplify procurement and deployment with a proven G4 platform, supporting streamlined asset management and easier capacity planning in dense rack environments.

Technical Details of Eaton G4 24-Outlets PDU

• Model: EVMA2120A G4 Rack PDU
• Outlets: 24 outlets arranged for efficient connection to servers, storage, and network devices
• Phase: Three-phase distribution for balanced load across IT equipment
• Rack compatibility: Fits standard 19-inch racks in 42U configurations for enterprise data centers and colocation facilities
• Product type: Managed PDU designed to offer remote visibility, control, and event management for improved data center operations
• Intended environments: Data centers, colocation facilities, and distributed IT infrastructure requiring reliable power distribution and centralized management

How to Install Eaton G4 24-Outlets PDU

• Prepare the rack: Confirm the 19-inch rack is clean, level, and has adequate space for the PDU and cable management—then verify mounting rails or brackets are available for installation.
• Mount the PDU: Secure the Eaton G4 PDU into the rack using the provided mounting hardware, ensuring a stable and level installation to support weight and ease of access to outlets and ports.
• Connect power feeds: Attach the PDU’s main power input to the data center’s distribution or power feed according to facility standards and electrical codes. Ensure proper electrical protection and labeling for safe operation.
• Link to management: If the PDU includes a network management interface, connect the management port to your IT network or management subnet. Configure IP addressing (static or DHCP as supported) and ensure connectivity for remote monitoring.
• Configure monitoring and alerts: Access the PDU’s management interface to enable outlet-level monitoring, set alert thresholds for current, voltage, and temperature if available, and map each outlet to connected devices for precise usage reporting and chargeback where applicable.
• Test and document: Power up the rack, verify all outlets energize correctly, confirm remote management connectivity, and document the configuration, outlet mappings, and any alert policies for operations teams.

Frequently asked questions

• Q: What is the Eaton G4 24-Outlets PDU best suited for? A: It is ideal for data centers, colocation facilities, and distributed IT deployments that require reliable three-phase power distribution, scalable outlet provisioning, and centralized management across dense rack environments.
• Q: Does this PDU support remote monitoring and management? A: Yes. As a G4 managed PDU, it provides remote visibility and control to help IT teams monitor load, detect faults, and manage power usage from centralized dashboards.
• Q: How many outlets does the EVMA2120A G4 PDU provide? A: It provides 24 outlets, designed to support dense IT deployments within a 42U rack footprint.
• Q: What deployment configurations are recommended for this PDU? A: It is recommended for large-scale, multi-rack data centers and colocation environments where centralized power management, capacity planning, and uptime are critical, especially in 42U rack rows.
• Q: Can the PDU help with energy efficiency and cost controls? A: Yes. With outlet-level visibility and monitoring, administrators can identify under- or over-provisioned outlets, optimize workloads, and implement policies to reduce idle power consumption and improve overall energy efficiency.
