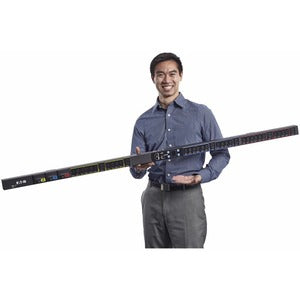

Eaton Metered Input Rack PDU – 0U, 309-460P9 Input, 17.3 kW Max, 200-240V, 48A, 6 ft Cord, Three-Phase, 38 x C13 Outlets

Optimize data center power distribution with the Eaton Metered Input rack PDU. Designed for dense server environments, this compact 0U device delivers precise, per-section metering and robust remote visibility so you can monitor, manage, and optimize energy use across your infrastructure. With a three-phase 200-240V input and a substantial 17.3 kW maximum load, it supports high-density workloads while helping prevent overload and unexpected downtime. The combination of a long, flexible 6-foot cord and 38 IEC C13 outlets makes it easy to connect a wide range of IT equipment while preserving valuable rack space. Best-in-class remote monitoring, integrated reporting, and a local balance display ensure operators gain actionable insight into power usage, allowing proactive capacity planning and smarter asset management across your entire data center or lab environment.

• Remote monitoring of current draw by section via network communication enables granular visibility into power usage, preventing overloads and improving uptime by enabling proactive maintenance across multiple PDUs from a single view.
• Centralized data aggregation with modern software allows you to consolidate metrics from many ePDUs into one accessible dashboard, speeding diagnoses, capacity planning, and energy optimization across the facility.
• 0U rack footprint with robust 3‑phase power supports dense rack deployments. It accepts a 200–240V input at up to 48A and delivers up to 17.3 kW, enabling high-performance workloads while preserving valuable rack space for critical equipment.
• 38 outlets (C13) for flexible IT connections provide ample reach for servers, storage devices, and network gear in professional data center environments, while maintaining a clean, organized rack layout.
• Local display option for phase balance and quick onsite checks helps technicians verify distribution health at a glance, reducing time-to-diagnosis during installation and routine maintenance.

Technical Details of Eaton Metered Input Rack PDU

• Form factor: 0U rack PDU designed for compact, space-saving installation in standard IT racks.
• Input: 309-460P9 input connector configuration for reliable three-phase power delivery.
• Voltage range: 200–240V, suitable for most data center environments and compatible with common commercial power supplies.
• Current rating: 48A continuous current capability to support high-density deployments and peak IT loads.
• Maximum power: 17.3 kW, providing substantial headroom for modern servers, storage, and networking gear.
• Phases: Three-phase power delivery for balanced distribution and improved efficiency in larger racks.
• Outlets: 38 × IEC C13 outlets, offering broad compatibility with standard IT equipment and straightforward cabling.
• Length of cord: 6 ft cord, enabling flexible power routing within the rack and to adjacent equipment or cabinets.
• Remote monitoring capability: Yes — supports network-based monitoring to enable centralized oversight of power usage, load distribution, and performance metrics.
• Local display (optional): Available for quick onsite visibility into phase balance and per-section load metrics without network access.

How to install Eaton Metered Input PDU

Installing the Eaton Metered Input PDU is straightforward for data centers, server rooms, and labs aiming to maximize uptime and power insight. Follow these steps to ensure a safe, compliant, and efficient setup:

• Plan and prepare: Identify the target rack location, ensuring adequate airflow around the PDU and unobstructed access to outlets and the local display (if installed). Confirm the electrical system can supply 200–240V three-phase power with a maximum current of 48A.
• Mount the PDU: Slide the 0U PDU into the selected rack and secure it using the provided mounting hardware. Verify that the unit sits flush with the rack rails and that there is no interference with server rails or cooling airflow.
• Connect the power input: Connect the 6 ft input cord to a certified three-phase power source that matches the 200–240V specification and can sustain up to 48A. Ensure all connections are tight and that the power source is protected by appropriate circuit breakers.
• Route IT equipment: Attach servers, storage, and network devices to the 38 IEC C13 outlets. Distribute loads evenly across outlets to promote phase balance and reduce the risk of overloading any single leg.
• Configure monitoring: Enable and configure remote monitoring in your network management system if you plan to collect per-section current data. If using a local display, calibrate and verify the phase-balance readings, then perform a basic load balance check with representative equipment powered on.
• Test and validate: Power on all connected devices and confirm that the PDU reports expected current draw per section. Validate that alerts, dashboards, and any integrated software reflect accurate measurements and that the PDU communicates correctly with your monitoring platform.

Frequently Asked Questions

• What is the maximum load this PDU can handle? It is rated for up to 17.3 kW at 200–240V with a 48A current limit, suitable for mid- to high-density IT deployments when properly balanced across three phases.
• How many outlets does the PDU provide? The unit offers 38 IEC C13 outlets, providing ample connection points for servers, storage devices, and networking gear.
• Is the PDU compatible with remote monitoring? Yes. The Eaton Metered Input PDU supports remote monitoring over the network, enabling centralized collection of current draw per section and easy integration with data center management software.
• Does it have a local display? A local display is available as an option, offering real-time visibility into phase balance and per-section load without needing network access.
• What is the form factor? The PDU is a 0U rack-mount unit designed to maximize space efficiency in dense racks while delivering substantial power and monitoring capabilities.
• What type of input power does it require? The unit uses a three-phase 200–240V input, with a maximum of 48A current, suitable for typical data center electrical infrastructure.
• Is the PDU suitable for large data centers? Yes. Its metered input capability, remote monitoring, and high kW rating make it well-suited for scalable deployments where centralized power management is critical.
