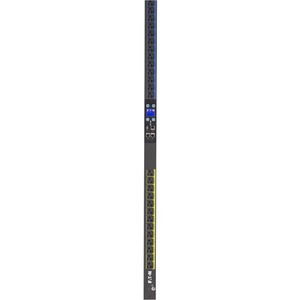

Eaton Metered Input Rack PDU – 0U, L14-30P Input, 24 x 5-20R Outlets, 120/240V, 24A, 10 ft Cord

The Eaton Metered Input rack PDU is a compact, 0U power distribution solution designed for data centers, server rooms, and network closets that demand precise load visibility and scalable power management. This ePDU delivers real-time metering of current draw across multiple sections via network communications, enabling centralized monitoring and proactive capacity planning. With a robust split-phase configuration, L14-30P input, and a dense outlet count, it powers a high-performance rack environment while keeping cables neat and manageable. A local display option provides quick, on-site visibility for phase balance and load distribution, making it easier to balance workloads across generators, UPS, and critical equipment. Designed to fit standard 19-inch racks, this unit optimizes space without compromising reliability or safety.

• Remote metering and centralized monitoring: Real-time current draw data for individual sections is transmitted over a network, allowing you to aggregate energy usage across multiple ePDUs in a single management console for easier capacity planning and energy optimization.
• Metered input with precise protection: The metered input design tracks load with accuracy, enabling informed decisions about equipment placement, load balancing, and power distribution across the rack ecosystem.
• High-capacity, split-phase power: 120/240V operation with a 24A maximum load (5.76 kW), using an L14-30P input to support high-power devices while maintaining efficient, balanced power delivery across phases.
• Dense 24-outlet configuration: (24) 5-20R outlets provide flexible, workstation-friendly connectivity for servers, switches, storage, and other rack-mounted equipment.
• Flexible installation and local visibility: 0U mounting and a 10 ft cord simplify installation in compact spaces, and a local display option helps with quick phase balance checks at the rack.

Technical Details of Eaton Metered Input Rack PDU

• Type: Metered Input rack PDU (ePDU) with remote monitoring capabilities
• Mounting: 0U footprint for unobtrusive, space-saving installation in standard 19-inch racks
• Input: L14-30P connector for 120/240V, split-phase operation
• Current rating: 24 A maximum
• Power capacity: Up to 5.76 kW (dependent on voltage and load)
• Outlets: (24) 5-20R receptacles to accommodate common rack-mount devices
• Cord length: 10 ft cord for flexible routing within rack spaces
• Phase configuration: Split-phase distribution across the rack
• Monitoring features: Remote current draw per section via network communication; there is support for centralized aggregation in compatible software; local display option for phase balance

How to install Eaton Metered Input Rack PDU

• Prepare the rack: Ensure the rack is a standard 19-inch enclosure with available 0U mounting space. Gather the necessary mounting hardware (screws or cage nuts) and a compatible power source for the L14-30P input.
• Power down equipment: Before installation, power down and unplug any devices that will be connected to the PDU to prevent inrush or accidental power cycling during setup.
• Mount the PDU: Slide the Eaton Metered Input PDU into the 0U space at the rear of the rack or wherever space permits. Secure it using the provided mounting hardware, ensuring a firm, level installation with unobstructed cable routing.
• Connect the input power: Plug the 10 ft input cord into a suitable L14-30P receptacle that matches the PDU’s input specification and electrical code requirements. Verify the source is capable of delivering up to 24 A continuous load.
• Route and organize the outlets: Plan the layout of the (24) 5-20R outlets to maximize accessibility and minimize cable clutter. Label circuits if desired to simplify post-installation management and load tracking.
• Configure networking and monitoring: If the model includes network monitoring, connect the PDU to your management network using the available interface (e.g., Ethernet). Configure IP addressing, SNMP or API settings, and any software dashboards you will use to centralize metering data from multiple ePDUs.
• Enable local display (optional): If a local display is installed, configure it for phase balance and load visibility as needed. This provides immediate feedback on current balancing at the rack level.
• Power up and verify: Restore power to the rack and confirm that the PDU powers on correctly. Check the display (if equipped) and verify that metering data is appearing in the management software or the PDU’s local interface. Validate that all outlets are accessible and that loads are being reported accurately.
• Establish alerts and documentation: Set up thresholds for load, imbalance, or overcurrent in your monitoring software to receive proactive alerts. Document outlet mappings to devices for ongoing maintenance and capacity planning.

Frequently asked questions

• What outlets does this PDU provide? It features (24) 5-20R outlets, suitable for common rack-mounted equipment.
• What is the input specification? The PDU uses an L14-30P input and operates at 120/240V, split-phase, with a maximum of 24A.
• How much power can it handle? Up to 5.76 kW maximum, depending on voltage and load distribution.
• Does it support remote monitoring? Yes. The Eaton Metered Input ePDU provides remote monitoring of current draw per section via network communications and can be aggregated with compatible management software. A local display option may be available for phase balance.
• Is it a 0U device? Yes, it is designed to occupy zero rack units (0U), optimizing space in dense rack environments.
• Is a 10 ft power cord included? Yes, the PDU ships with a 10 ft cord for flexible installation.
