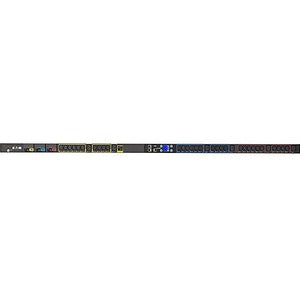

Eaton Metered Input Rack PDU — 0U, L14-30P Input, 5.76 kW Max, 120/240V, 24A, 10 ft Cord

In data centers, network closets, and server rooms, power reliability and visibility are essential. The Eaton Metered Input rack PDU delivers precise power distribution and proactive energy monitoring in a compact 0U footprint designed for standard 19-inch racks. This metered input ePDU provides real-time insight into current draw on individual sections, helping IT and facilities teams optimize capacity, reduce risk of overloading, and simplify reporting. With a built-in local display and modern network connectivity, you can monitor, manage, and aggregate data across multiple PDUs from a single interface, improving operational efficiency and uptime.

• Remote monitoring and centralized management: Real-time current readings for each section are transmitted over the network, enabling you to monitor multiple ePDUs from one dashboard and perform data-driven capacity planning. The system integrates with advanced software to consolidate energy metrics, helping you identify utilization trends, forecast power needs, and optimize rack loading.
• Split-phase, high-efficiency power delivery: The input is an L14-30P connector supporting 120/240V split-phase power, delivering up to 24A and a maximum of 5.76 kW. This configuration is ideal for data center gear that requires robust, balanced power distribution without compromising efficiency or reliability.
• Flexible outlet configuration for mixed equipment: Outlets include eight (8) 5-20R receptacles, twenty (20) C13 outlets, and six (6) C19 outlets, providing versatility to power servers, switches, storage devices, and other IT equipment from a single PDU. The mix supports common today’s rack gear while maintaining manageable cord management.
• 0U form factor with durable construction: The 0U rack design maximizes rack space, leaving your front panel clear for airflow and service access. A 10 ft cord offers flexibility in mounting location and routing, simplifying installation in dense racks or tighter data-center layouts.
• Built for reliability and easy administration: Eaton’s metered input PDUs are engineered for continuous operation in demanding environments and provide straightforward setup for monitoring, alerting, and reporting. The combination of local display and networked metering supports both on-site checks and remote data aggregation from a single source of truth.

Technical Details of Eaton Metered Input Rack PDU

• Model: Eaton Metered Input rack PDU (0U)
• Input: L14-30P, 120/240 VAC, 24 A, split-phase
• Maximum power: 5.76 kW
• Voltage: 120/240 V
• Current rating: 24 A
• Cord length: 10 ft
• Mounting: 0U, 19-inch rack compatible
• Outlets: 8 × 5-20R, 20 × C13, 6 × C19
• Metering: Remote monitoring of current draw by section via network; local display for at-a-glance data
• Network features: Supports centralized data collection and integration with data-center management software

How to install Eaton Metered Input Rack PDU

• Prepare the rack and power source: Ensure your rack is securely mounted in a suitable location with adequate clearance for cabling and airflow. Confirm that the electrical feed matches the L14-30P input requirements and is wired for 120/240V split-phase operation.
• Mount the PDU: Slide the 0U PDU into the appropriate position in the 19-inch rack. Align mounting points and fasten securely to the rack rails, ensuring stability and proper clearance for cables at the front and rear.
• Connect the input power: Plug the 10 ft input cord into the L14-30P receptacle or power distribution outlet that provides 120/240V split-phase power. Verify that the supply can deliver up to 24A sustained current without tripping breakers.
• Route and connect outlets: Plan device placement to balance loads across the eight 5-20R outlets, twenty C13 outlets, and six C19 outlets. Use proper cable management to reduce strain on connectors and promote cooling airflow.
• Configure monitoring and alerts: Power up the PDU and access its local display to verify voltage, current, and outlet-level measurements. Connect the PDU to the management network, assign an IP address, and enable SNMP or other supported monitoring protocols. Validate that the central monitoring software reflects real-time readings from the PDU and that alarms or thresholds are appropriately configured.

Frequently asked questions

• What outlets does this PDU provide? The unit offers eight 5-20R outlets, twenty C13 outlets, and six C19 outlets, supplying power for a mix of servers, switches, storage, and other rack-mounted equipment.
• What input plug is used? It uses an L14-30P input connector designed for 120/240V split-phase power, delivering up to 24 A.
• What is the maximum power rating? The PDU supports up to 5.76 kW, suitable for dense rack deployments while maintaining efficient energy monitoring.
• Does it have a local display? Yes, the PDU includes a local display to view voltage, current, and outlet status at the rack.
• Can I monitor this PDU remotely? Absolutely. Remote metering over the network allows you to aggregate data from multiple ePDUs in a single management interface, enabling centralized monitoring and reporting.
• Is this PDU suitable for standard 19-inch racks? Yes. The unit is designed for 0U mounting in standard 19-inch racks, preserving rack space for equipment and maintaining proper airflow.
• How do I install and configure it? Installation involves mounting the PDU in the rack, connecting the 10 ft input cord to a compatible power source, routing outlets to devices, and enabling network-based metering in your management software. Reference the installation steps above for guidance.
