Description

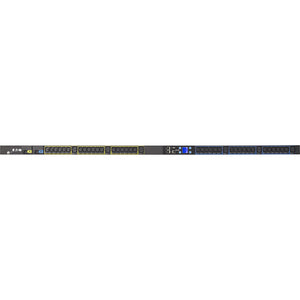

Eaton G3 Metered Input Rack PDU — 0U, L6-30P Input, 5.76 kW Max, 200-240V, 24A, 10 ft Cord, Single-Phase, 36 C13 + 6 C19 Outlets
Experience precise power distribution with the Eaton G3 Metered Input Rack PDU. This 0U, high-density PDU is engineered for data centers and enterprise environments that demand exact metering, reliable power delivery, and scalable management. Its billing-grade accuracy monitors input and branch circuits, providing clear visibility through a local LCD display and optional network connectivity for remote monitoring and reporting. With a robust 5.76 kW maximum load, 200-240V single-phase operation, and a diverse outlet mix (36 C13 and 6 C19), this PDU streamlines energy management while supporting critical IT infrastructure.
- Billing-grade metering with a bright, easy-to-read local LCD pixel display: The PDU measures current, voltage, power, and energy with precision, enabling accurate chargeback, capacity planning, and load balancing at the rack. Operators can quickly verify power usage on-site, while data can be collected remotely for centralized analytics.
- 0U form factor with a versatile outlet configuration: This compact design fits in tight rack spaces without sacrificing capacity. It supplies 36 C13 outlets and 6 C19 outlets, accommodating a wide range of servers, storage devices, and networking gear, reducing the need for additional power distribution modules.
- Rigid 200-240V, 30A input via L6-30P with a 10-foot cord: The beam-for-power input supports high-current, single-phase infrastructure common in data centers. The long cord length provides flexibility in rack placement, enabling cleaner cable management and safer, shorter power runs within the rack and adjacent equipment.
- High-efficiency, scalable power management: With a maximum load of 5.76 kW, the PDU supports dense deployments while maintaining power quality. Metered input helps evenly distribute load across circuits, helping to optimize cooling, energy costs, and overall data-center efficiency.
- Network-ready monitoring and reporting: In addition to the local LCD display, the Eaton G3 Metered Input PDU can be monitored over a network, giving IT teams real-time visibility, alerting, and historical data for audits, reporting, and greenhouse gas reduction initiatives.
Technical Details of Eaton Metered Input Rack PDU
- PDU Type: Metered Input Rack PDU
- Model/Series: Eaton G3 Metered Input ePDUs
- Size/Footprint: 0U rack-mountable design
- Input: L6-30P receptacle
- Voltage: 200-240V
- Current: 24A
- Max Power: 5.76 kW
- Outlets: 36 x C13 outlets, 6 x C19 outlets
- Cord: 10 ft cord length
- Phase: Single-phase
- Display: Local LCD pixel display for metering
- Metering: Measures current, voltage, power, and energy
- Monitoring: Optional network connection for remote monitoring and data collection
How to install Eaton Metered Input Rack PDU
- Prepare the rack and power source: Ensure you have a standard 19-inch equipment rack and access to a 200-240V supply circuit that can provide up to 24A continuously.
- Mount the PDU in the rack: Align the PDU with the rack rails and secure it using the included mounting hardware designed for 0U, space-saving installation. Confirm the device is firmly seated and level for safe operation.
- Connect input power: Plug the 10 ft cord of the PDU into an appropriate L6-30R receptacle or dedicated power source rated for 30A at 200-240V. Verify that the supply circuit protection and breakers are appropriate for continuous load operation.
- Route and organize outlets: Route cords to connected devices, grouping similar loads when possible to optimize cooling and ease future maintenance. Use proper cable management to prevent obstruction of airflow around the rack.
- Configure monitoring and verify operation: Power on the rack and observe the local LCD display to confirm metering accuracy. If network monitoring is enabled, configure the device on your monitoring system to start collecting energy, current, and voltage data for real-time visibility and reporting.
Frequently asked questions
- Q: What is the maximum load this PDU can support? A: The Eaton G3 Metered Input Rack PDU supports up to 5.76 kW (200-240V, 24A) across its 36 C13 and 6 C19 outlets.
- Q: How many outlets are available and what types are they? A: There are 36 C13 outlets and 6 C19 outlets, providing broad compatibility for servers, storage, and networking gear.
- Q: Does this PDU offer remote monitoring? A: Yes, it features a local LCD display for on-rack visibility and supports network connectivity for remote monitoring and data collection.
- Q: What input connector does it use? A: The PDU uses an L6-30P input, suitable for high-current, 200-240V single-phase power supplies.
- Q: What does 0U mean for installation? A: 0U indicates the PDU occupies no rack height, enabling compact, space-efficient installation in tight rack environments while still delivering full power distribution capabilities.
