Eaton Metered Input Rack PDU — 1U, 12 x 5-15R, 1.44 kW, 120V, 10 ft Cord

The Eaton Metered Input Rack PDU is a smart, space-efficient power distribution solution designed for modern data centers, server rooms, and network closets. With a compact 1U form factor, this rack-mountable unit delivers reliable, single‑phase power at 120V and up to 12A (1.44 kW max) to a bank of outlets, while enabling precise energy visibility. The metered input means you don’t just power your equipment—you gain real-time access to essential power data, right at your fingertips. Monitor voltage, current, power, and energy usage across each outlet section from a single interface, so you can optimize capacity, enforce budgets, and improve uptime. Color-coded outlet sections make it easy to identify critical paths and protect important gear, reducing mis-wiring and simplifying maintenance. With a generous 10-foot cord, this PDU fits a wide range of rack layouts and room configurations, giving you flexibility in placement without sacrificing performance. Whether you are deploying a new rack, expanding an existing one, or implementing a chargeback program, Eaton’s metered rack PDU delivers the visibility, control, and reliability you need to manage power intelligently and responsibly.

• Real-time metered input with remote access: View live power data and energy usage from anywhere, enabling proactive capacity planning, cost tracking, and informed procurement decisions.
• 12 outlets with 5-15R receptacles: Ample distribution for servers, storage, and network gear, organized in a compact 1U footprint to maximize rack density.
• Color-coded outlet sections: Quickly identify circuits and protect critical equipment, reducing wiring errors and speeding routine maintenance.
• Compact 1U, 120V, single-phase design: A straightforward power solution that fits standard 19-inch racks and integrates into existing infrastructure with ease.
• Billing-grade accuracy for precise chargebacks: Achieve ±1% energy measurement accuracy to support accurate energy accounting, budgeting, and reporting.

Technical Details of Eaton Metered Input Rack PDU

• Model: Eaton Metered Input Rack PDU, 1U
• Input voltage: 120V
• Current rating: 12A
• Maximum load: 1.44 kW
• Phase: Single-phase
• Outlets: 12 x 5-15R
• Cord length: 10 ft
• Mounting: 1U, 19-inch rack-compatible

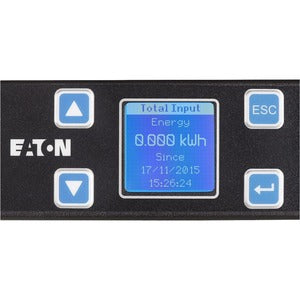

• Metering: Remote monitoring with access to power data across outlets
• Accuracy: Billing-grade ±1% energy measurement

How to install Eaton Metered Input Rack PDU

Installing the Eaton Metered Input Rack PDU is straightforward and designed to minimize downtime while ensuring safe, compliant power distribution in your rack environment. Follow these steps to set up quickly and reliably.

• Prepare the rack: Ensure the rack is properly grounded and rated for 19-inch equipment. Confirm there is adequate clearance at the rear for cable management and airflow.
• Mount the PDU: Slide the unit into the 1U space of the rack and secure it with the appropriate screws, following your rack’s mounting guidelines. Verify that the PDU is level and firmly attached to avoid movement during cable handling.
• Connect the power: Route the 10-foot cord to a suitable 120V power source or PDU branch circuit. Use proper strain relief and cable management to prevent accidental disconnections or interference with airflow.
• Distribute load and configure monitoring: Connect your servers, storage, and networking gear to the 12 outlets (5-15R). Access Eaton’s management interface to enable metering, set thresholds, and configure alerts for voltage, current, and energy usage per outlet or section.

After installation, verify that all devices power on correctly and that the metered data reflects the connected load. Validate that outlet sections align with color coding for quick identification. Regularly review the monitoring dashboard to catch anomalies early, optimize capacity, and support accurate chargebacks or energy budgeting. If you integrate the PDU with broader Eaton management tools or your data center infrastructure management (DCIM) ecosystem, ensure credentials and permissions are configured to maintain secure, role-based access to energy data.

Frequently asked questions

• What does “metered input” mean? Metered input means the PDU not only distributes power to connected devices but also measures and reports energy usage. It provides real-time data on voltage, current, power, and energy, enabling precise tracking of consumption and informed decision-making.
• Can I monitor power data remotely? Yes. The Eaton Metered Input Rack PDU supports remote monitoring, allowing you to access power metrics from wherever you are, through Eaton’s management interface or compatible DCIM tools.
• What is the maximum power this PDU can handle? The unit is rated for up to 1.44 kW (120V, 12A), making it suitable for distributed power to modest rack workloads and a mix of IT devices while avoiding overloading individual circuits.
• How many outlets does it have and what outlets are used? The PDU provides twelve outlets, all of which are 5-15R receptacles, arranged to support a range of servers, storage devices, and networking gear within a 1U footprint.
• What is the benefit of color-coded outlet sections? Color coding helps technicians quickly identify circuits, improves labeling accuracy, reduces wiring errors, and supports faster troubleshooting and maintenance in busy data centers.
• Is this PDU compatible with standard 19-inch racks? Yes. The unit is designed for standard 19-inch racks in a 1U form factor, ensuring uncomplicated integration into most existing rack environments.
