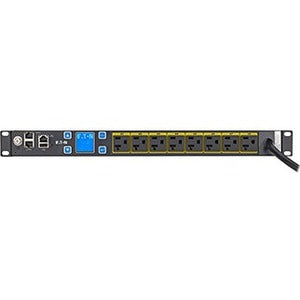

Eaton Metered Input Rack PDU, 1U, 5-20P Input, L5-20P Cord, 10 ft, 100-127V, 8 x 5-20R Outlets

Enhance your data center reliability and operational visibility with the Eaton Metered Input rack PDU. This compact 1U power distribution unit is purpose-built for critical IT workloads, delivering not only robust electrical distribution but also precise, real-time power monitoring. With a locking L5-20P input, a full 10-foot cord, and eight 5-20R outlets, it fits neatly into standard 19-inch racks while providing the exact metering and network-enabled capabilities your modern data-center environment demands. Whether you manage a single server room or a sprawling server farm, this PDU helps you optimize capacity, prevent overloads, and streamline energy management across your entire infrastructure.

• Remote network-enabled power monitoring: The Eaton ePDUs offer remote monitoring of the current draw for individual sections via network communication. This capability enables you to collect, correlate, and analyze power usage data from multiple ePDUs in a single, centralized location. By consolidating information from distributed rack power devices, you can detect anomalies, identify peak loads, and make informed decisions to improve uptime and efficiency across the data center.
• Local display for quick, at-a-glance status: In addition to remote monitoring, the unit features a local display that provides essential load information right at the rack. This is invaluable for technicians performing routine checks or adjustments in a busy data center, allowing rapid assessment of phase balance, current draw, and outlet activity without logging into software interfaces.
• Compact 1U, 19-inch rack-mount design: Designed to maximize space efficiency, this PDU occupies only 1U of rack height and mounts in the standard 19-inch rack system. The 10-foot power cord offers flexible installation options, enabling you to place the PDU where it’s most convenient for service access and cable management while maintaining solid power distribution for your equipment lineup.
• Reliable performance for critical IT workloads: With eight 5-20R outlets, the PDU supports a broad range of devices—from servers and switches to storage arrays and network appliances. The metered input helps you observe real-time energy consumption, supports proactive capacity planning, and contributes to lower operating costs by enabling smarter load distribution and workload optimization.
• Scalable, centralized power management: Eaton ePDUs are built to integrate with enterprise-grade power-management software. This enables you to aggregate data from multiple units, set alert thresholds, and track energy trends across your entire IT footprint. Such centralized visibility simplifies policy enforcement, capacity planning, and resilience strategies in dynamic environments where uptime is paramount.

Technical Details of Eaton Metered Input rack PDU

• Model: Eaton Metered Input rack PDU, 1U, 8 x 5-20R outlets
• Input: L5-20P, 100-127V, single-phase
• Cord length: 10 ft (3.0 m)
• Outlets: 8 x NEMA 5-20R
• Rack compatibility: 1U height, fits standard 19" racks
• Metering: Metered input with current draw monitoring per section; supports centralized reporting via Eaton software
• Applications: Ideal for data centers, server rooms, and IT closets requiring reliable distribution with visibility

How to install Eaton Metered Input rack PDU

• Power down equipment and install the PDU in a standard 19" rack, occupying 1U of vertical space. Use the included hardware and ensure the unit is securely mounted with proper ventilation around the rear to maintain airflow.
• Connect the 10 ft L5-20P input cord to a suitable, closed-circuit power source rated for 100-127V single-phase. Confirm that the circuit can handle the anticipated load to prevent nuisance trips and to preserve uptime.
• Attach IT devices to the eight 5-20R outlets. Plan outlet distribution to promote balanced loading across outlets and ensure critical devices receive priority during fault or maintenance scenarios.
• If you enable network monitoring, connect the PDU’s management interface to your Ethernet network. Configure IP address information, access controls, and alert thresholds in your power-management software to enable real-time monitoring, energy reporting, and alerting.
• Power on equipment and verify operability. Check that the local display reflects accurate load data and that remote dashboards capture the correct current draw per section. Validate metering accuracy and confirm that centralized reporting across multiple ePDUs integrates smoothly with your existing IT systems.

Frequently asked questions

• Q: What voltage and phase does this PDU support?
  A: It supports 100-127V, single-phase input, suitable for standard North American power distributions.
• Q: How many outlets are available?
  A: Eight 5-20R outlets provide flexible connections for a range of IT devices.
• Q: Does the PDU provide metering?
  A: Yes. The unit includes metered input and remote monitoring of current draw per section, enabling detailed load awareness and capacity planning.
• Q: Can it integrate with centralized power management?
  A: Yes. The PDU is designed to work with Eaton’s power-management software, allowing you to aggregate data from multiple ePDUs for holistic visibility and control across facilities.
• Q: What are the physical dimensions and installation footprint?
  A: It is a 1U, 19" rack-mountable PDU with a 10 ft cord, engineered for efficient space use in data centers and IT rooms.
