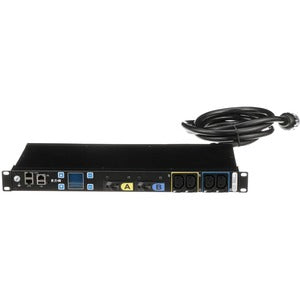

Eaton Metered Input Rack PDU, 1U, L6-30P Input, 5.76 kW Max, 200-240V, 24A, 10 ft Cord, Single-Phase, 16 x C13 Outlets

The Eaton Metered Input Rack PDU is a compact powerhouse engineered for demanding data centers and professional server rooms where space is at a premium and reliable power distribution is non-negotiable. Designed to deliver real-time energy visibility, this 1U rack-mount PDU brings critical power management right to your equipment rack, helping IT teams monitor load, voltage, and current with precision. With a maximum capacity of 5.76 kW and a 16-outlet configuration, it supports a dense array of servers, storage devices, and networking gear while keeping cables tidy and manageable. The metered design enables accurate capacity planning, reduces the risk of overloading circuits, and supports proactive cooling and maintenance planning in busy data center environments.

• Real-time metering: Access immediate data on voltage, current, and power consumption, enabling accurate monitoring and capacity planning to optimize uptime and energy efficiency.
• Compact 1U footprint: A slim profile designed for dense racks, delivering dependable power distribution without sacrificing valuable rack space.
• High-quality input for stability: L6-30P input compatible with 200-240V power sources, supporting robust, consistent delivery to critical IT equipment.
• High-capacity output: Up to 5.76 kW maximum load with a 24A rating, ensuring multiple servers and peripherals can be powered reliably from a single world-class PDU.
• Secure outlets and cable management: (16) C13 outlets with outlet grips provide secure connections and neater cable routing in busy rack environments.

Technical Details of Eaton Metered Input Rack PDU

• Form factor: 1U rack-mountable power distribution unit
• Input: L6-30P, 200-240V, 24A
• Output: 16 x C13 outlets (with outlet grip)
• Max load (rating): 5.76 kW
• Current rating: 24A
• Voltage range: 200-240V
• Phase: Single-phase
• Cord length: 10 ft
• Metering: Real-time electrical metering for precise power management

How to Install Eaton Metered Input Rack PDU

• Prepare your rack area by ensuring there is adequate ventilation and clearance around the cabinet to promote safe operation and easy access to outlets.
• Mount the Eaton Metered Input Rack PDU into a standard 19-inch equipment rack using the appropriate mounting rails or brackets supplied by your rack vendor or integrator. Ensure the unit is securely fastened to prevent movement during maintenance or front-loading cable management.
• Connect the input power using the L6-30P plug. Plug into a dedicated 30A, 200-240V power source that complies with local electrical codes and facility requirements. Verify the circuit is capable of handling the 24A load rating and that protection devices (breakers/fuses) are correctly rated for this configuration.
• Route and connect your devices to the 16 C13 outlets. Use outlet grips to secure cables and maintain an organized front panel. Group critical devices to minimize managed load imbalances and ensure a balanced distribution across the bank of outlets.
• Power on and verify operation. Check the real-time metering readout to confirm voltage, current, and total load align with expectations. Monitor for any unusual readings or deviations and adjust equipment placement or cabling as needed to maintain safe and efficient power distribution.

Frequently asked questions

• Q: What is the maximum power capacity of the Eaton Metered Input Rack PDU? A: It supports up to 5.76 kW, enabling multiple servers and networking devices to draw power from a single unit without overloading the circuit.
• Q: How many outlets does this PDU provide? A: The unit provides 16 C13 outlets with secure outlet grips for neat cable management.
• Q: What is the input specification? A: The PDU uses an L6-30P input and operates on 200-240V with a 24A current rating.
• Q: Is real-time metering available? A: Yes, the PDU includes real-time metering to monitor voltage, current, and power usage directly from the rack.
• Q: What type of phase and form factor does it use? A: It is a single-phase, 1U rack-mountable PDU designed for dense data center deployments.
