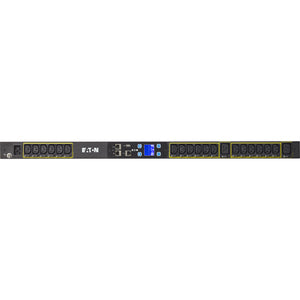

Eaton Metered Input Rack Power Distribution Unit – 0U Form Factor, L6-20P Input, C20 I

Engineered for efficiency, reliability, and precise energy governance, the Eaton metered input rack power distribution unit (PDU) delivers essential power distribution with real-time metering for data centers, server rooms, and high-density IT environments. Its compact 0U form factor fits snugly into standard 19-inch racks, freeing valuable front panel space for equipment while providing robust protection and visibility over your power usage. With a single-phase configuration, 100–240V compatibility, and a 3.84 kW maximum load, this PDU is designed to support a wide range of IT assets and networking gear, from blade servers to multi-rack middleware nodes. The combination of versatile outlets, a long 10-foot cord, and a reliable L6-20P input makes it a flexible solution for installations where space, efficiency, and monitoring matter most. Whether you’re aiming to optimize energy costs, track power trends, or simply simplify cabling in a crowded data center, this Eaton PDU is purpose-built to meet those demands while maintaining uptime and operational clarity.

• Metered power distribution with real-time monitoring to help you track voltage, current, and power, enabling proactive capacity planning and energy efficiency across IT workloads.
• Flexible input and outlets: 100-240V input range with a 10 ft cord and an L6-20P plug; outputs include (18) C13 outlets and (2) C19 outlets to accommodate a mix of servers, switches, storage devices, and other rack-mount gear.
• Compact 0U form factor for space-saving deployment in standard 19-inch racks, providing clean cabling and front-access power distribution without occupying front-panel rack space.
• High-capacity single-phase performance up to 3.84 kW and 16A capacity, enabling reliable power delivery for dense rack environments while maintaining safe headroom for peak workloads.
• Durable, enterprise-grade construction designed for continuous operation in data centers and network labs, with trusted Eaton reliability and built-in protection features to help safeguard critical equipment.

Technical Details of Eaton Metered Input Rack Power Distribution Unit

• Form Factor: 0U
• Input Connector: L6-20P
• Input Voltage Range: 100–240V
• Input Current: 16A
• Maximum Load: 3.84 kW
• Cord Length: 10 ft
• Phase: Single-phase
• Output Connectors: (18) C13 outlets, (2) C19 outlets
• Input/Output Configuration: Metered input with multiple receptacles for mixed device support

how to install Eaton Metered Input Rack Power Distribution Unit

• Power down and unplug equipment that will be connected to the PDU; plan cable routing to maintain clean, organized wiring in the rack.
• Mount the PDU into a 19" rack using compatible mounting rails or hardware; ensure the unit sits securely and that all outlets remain accessible for front-bar access.
• Connect the 10-foot power cord to a suitable 100–240V power source using the L6-20P inlet; verify that the outlet circuit can handle up to 16A continuously without tripping for sustained peak loads.
• Distribute devices across the (18) C13 and (2) C19 outlets to balance current across outlets and prevent single-outlet overload; group critical devices on dedicated circuits where possible.
• Power on the PDU and connected equipment; monitor energy usage through the metering interface to validate load distribution and identify opportunities for optimization in real time.

Frequently asked questions

• Q: What is the form factor and where can I install it?

  A: The PDU has a 0U form factor designed for standard 19-inch racks, making it ideal for dense data centers, server rooms, and network cabinets where space is at a premium.

• Q: What outlets are available on this unit?

  A: It provides (18) C13 outlets and (2) C19 outlets, suitable for a mix of servers, switches, storage devices, and other rack-mount equipment.

• Q: What is the input specification?

  A: The PDU accepts 100–240V at up to 16A with an L6-20P input connector, and it includes a 10-foot cord for flexible power placement in the rack enclosure.

• Q: How much load can it support?

  A: The maximum load is 3.84 kW, providing ample headroom for typical mixed-rack deployments while allowing for efficient energy management.

• Q: Does it offer metered power?

  A: Yes. The unit provides metered input power which enables real-time monitoring of voltage and current to aid with capacity planning and energy optimization.
