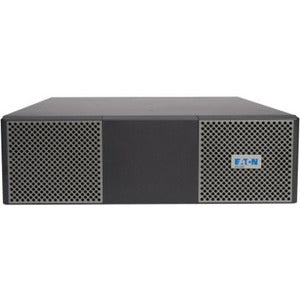

Eaton SC240RT: Extend Runtime for 9PX 8kVA and 11kVA UPS Systems (240VDC, 3U Rack/Tower)

The Eaton SC240RT supercharger is a purpose-built runtime extension for the Eaton 9PX UPS family, designed to protect your critical workloads with scalable battery capacity. This 3U rack/tower accessory lets you add up to 12 Extended Battery Modules (EBMs) to your 8kVA or 11kVA 9PX UPS system or power module, delivering longer runtimes and improved resilience during outages. Built to integrate seamlessly with 240VDC battery circuits, the SC240RT supports smooth upgrades to your existing infrastructure without sacrificing reliability or performance. With hardware included for both rack and tower installations, you can deploy this upgrade quickly in a standard data center rack or on a stable floor-standing setup, preserving valuable space while maximizing uptime for essential services.

• Scalable runtime with up to 12 Extended Battery Modules (EBMs): Expand capacity in steps to match evolving workload demands and outage risk, giving you greater control over backup time and service continuity.
• Full compatibility with the Eaton 9PX UPS family, including 9PX8K and 9PX11K models: Achieves seamless integration with your current UPS configuration and battery management ecosystem for reliable operation.
• Compact 3U rack/tower form factor: Designed to fit standard 19-inch racks or secure floor-standing towers, delivering a space-efficient upgrade without forcing a major redesign of your data center space.
• Installation hardware included for quick, tool-efficient setup: All required mounting rails, fasteners, and DC connection hardware are provided to simplify installation in either rack or tower configurations.
• 240VDC input for straightforward integration with UPS battery circuits: Aligns with the UPS power architecture to streamline wiring, monitoring, and battery management while maintaining robust performance during power events.

Technological Details of Eaton Supercharger for 9PX 8kVA and 11kVA UPS Systems, 240VDC, 3U Rack/Tower

• Model: SC240RT Supercharger for Eaton 9PX UPS (8kVA/11kVA) — 240VDC input
• Compatibility: 9PX8K and 9PX11K UPS systems and their power modules, enabling a cohesive upgrade path for existing installations
• Battery Support: Supports up to 12 Extended Battery Modules (EBMs) to significantly extend runtime during outages
• Form Factor: 3U rack/tower mounting with standard 19-inch width for flexible deployment in data centers or operational environments
• Installation Hardware: Included for secure rack- or tower-mount installation, reducing setup time and complexity
• Voltage: 240V DC input to align with the UPS battery circuits and ensure consistent performance
• Purpose: Expands backup capability, minimizes downtime risk, and preserves business-critical workloads during power interruptions

How to install Eaton SC240RT Supercharger

• Power down the UPS system and disconnect from all power sources following Eaton safety guidelines to protect personnel and equipment during installation.
• Choose an installation location that provides adequate ventilation and accessibility: a standard 19-inch rack space (3U height) or a stable, safe floor-standing tower setup compatible with the SC240RT dimensions.
• Mount the SC240RT in the selected configuration using the included installation hardware; ensure rails are aligned and securely fastened to support the weight of EBMs and the added hardware.
• Connect the SC240RT to the UPS battery system using the recommended DC input connections, following the Eaton installation manual for correct wiring and safety procedures related to 240VDC interfaces.
• Install up to 12 Extended Battery Modules (EBMs) into the designated bays, verifying physical seating and electrical compatibility with the SC240RT and the 9PX UPS platform before powering on.
• Link the SC240RT to the UPS (9PX8K or 9PX11K) using the approved cabling and connectors; confirm all electrical connections are secure and free from debris or insulation that could affect performance.
• Power on the assembly and initiate a UPS self-test to verify proper communication between the SC240RT, EBMs, and the UPS management interface; monitor status indicators for battery health and runtime metrics.
• Document the upgrade in your asset management system, and adjust runtime expectations based on the number of EBMs installed and the typical load profile of your protected systems.

Frequently asked questions

• What is the Eaton SC240RT supercharger? The SC240RT is a battery-runtime-extension accessory designed to attach to Eaton 9PX UPS systems, enabling capacity growth by supporting up to 12 EBMs to extend backup time for 8kVA and 11kVA configurations.
• Which UPS models are compatible? It is designed for the Eaton 9PX family, specifically the 8kVA (9PX8K) and 11kVA (9PX11K) units, including their power modules, to ensure a cohesive upgrade path.
• How many EBMs can I install? You can install up to 12 EBMs with a single SC240RT, allowing you to tailor runtime to your organization’s outage tolerance and service-level agreements.
• What voltage does SC240RT use? The SC240RT operates with a 240V DC input to align with the UPS battery stack and wiring standards used by Eaton’s UPS hardware.
• Is installation difficult? With included hardware and clear mounting guidelines, the SC240RT is designed for straightforward, field upgradable installation in either rack or tower configurations; following Eaton’s instructions will help ensure a smooth upgrade with minimal downtime.
• Will this affect UPS warranty? Upgrading with an authorized Eaton accessory like the SC240RT, when installed per official guidelines, is typically supported; check current warranty terms for your exact model to confirm.
