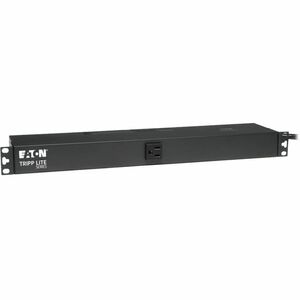

Eaton Tripp Lite Series 1.8kW 120V Single-Phase Basic PDU

Power-up network-grade reliability in a compact, no-frills package. This Eaton Tripp Lite basic PDU delivers clean, dependable distribution of 120V power to multiple devices in dense IT environments. Built for simplicity and durability, the PDU121506 is a single-phase, 1.8 kW power distribution unit designed to support networking, telecom, security systems, audio/video, and sound reinforcement applications. With a 1U rack-mount form factor, 6-foot cord, and a single breakered load bank, it provides essential power delivery where space is at a premium and reliability matters most.

• Single-phase 120V operation with a total power capacity of 1.8 kW, making it suitable for mid-density equipment racks and consolidated loads.
• Thirteen (13) NEMA 5-15R outlets provide ample access for multiple devices, reducing clutter and improving cable management in the rack.
• 6-foot input cord with a 5-15P plug keeps power routing flexible in standard 120V facilities and equipment rooms.
• 1U rack-mount design fits standard 19-inch racks, maximizing space efficiency in data centers, labs, and technical workspaces.
• Single breakered load bank emphasizes simple protection and straightforward power distribution for critical loads in high-density setups.

Technical Details of Eaton Tripp Lite Series 1.8kW 120V Single-Phase Basic PDU

• Model: PDU121506
• Power rating: 1.8 kW
• Input: 120V AC, 5-15P
• Outlets: 13 x NEMA 5-15R
• Cord length: 6 ft
• Cord type: 5-15P input
• Mounting: 1U rack-mount
• Load protection: Single breakered load bank
• Target applications: Networking, telecom, security, audio/video, sound reinforcement

How to Install Eaton Tripp Lite Series 1.8kW 120V Single-Phase Basic PDU

• Prepare your rack space in a standard 19-inch rack and verify that the chassis location can accommodate a 1U device with adequate airflow.
• Mount the PDU121506 in a secure 1U rack position using the appropriate rack hardware. Ensure the unit is level and firmly fastened to prevent movement during cable management.
• Connect the PDU’s 6-foot input cord to a properly rated 120V source using a 5-15P plug. Confirm the receiving circuit and breaker capacity match the expected load.
• Route and organize power cords from your devices to the 13 NEMA 5-15R outlets on the PDU. Use cable ties or management channels to minimize tangling and maximize airflow around the unit.
• Power up the equipment and perform a basic load check. Verify that connected devices receive stable power and monitor for any tripping or overheating indicators.

Frequently asked questions

• Q: How many outlets does the PDU have? A: It features 13 NEMA 5-15R outlets for convenient device connections.
• Q: What is the input plug and voltage? A: The PDU uses a 5-15P input plug at 120V AC.
• Q: What is the maximum power this PDU can distribute? A: The unit is rated for 1.8 kW of total power distribution.
• Q: What is the form factor and mounting type? A: It is a 1U rack-mount PDU designed for standard 19-inch racks.
• Q: Is there a protection feature for loads? A: Yes, it uses a single breakered load bank to simplify protection for connected devices.
