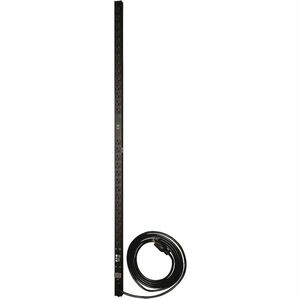

Eaton Tripp Lite Series 1.9kW Single-Phase Local Metered PDU — 120V, 28 x 5-15/20R Outlets, L5-20P/5-20P Adapter, 15 ft Cord, 0U Vertical

The Eaton Tripp Lite Series 1.9kW Single-Phase Local Metered PDU is a premium power distribution solution designed for professional server rooms and data centers where uptime, efficiency, and visibility are non-negotiable. Built to deliver reliable power to critical infrastructure, this PDU combines precise outlet-level metering with flexible input/output options, helping IT teams optimize load, reduce energy waste, and simplify rack management. With a compact 0U vertical footprint, it maximizes rack density without sacrificing performance, making it ideal for dense deployments, edge installations, and space-constrained environments.

• Real-time power monitoring: Access live current, voltage, and power readings to assess load distribution across devices, identify hotspots, and forecast capacity. Real-time metrics support proactive capacity planning, alerting, and more informed procurement decisions for growing IT environments.
• 28 versatile outlets for expansive connectivity: The PDU provides 28 rear-facing 5-15/20R outlets, designed to accommodate servers, storage units, switches, and ancillary equipment. Flexible outlet configurations simplify cable management and reduce clutter while preserving airflow for thermal efficiency in busy racks.
• Dual input/output flexibility with adapters included: Features a locking L5-20P input cord and a convenient L5-20P to 5-20P adapter. This combination supports diverse power configurations and simplifies connections to devices with different plug types, minimizing the need for additional adapters and reducing downtime during maintenance.
• 0U vertical form factor for maximum rack density: This slim, space-saving design sits flush in a standard 19-inch rack, freeing up valuable rack space for IT hardware. The 0U profile enables you to stack more equipment in the same footprint, boosting efficiency in data centers and edge deployments.
• Enhanced safety, reliability, and protection: Engineered with robust enclosure construction, overcurrent protection, and thermal management considerations to sustain uptime in crowded racks. Local metering adds another layer of visibility, helping operators prevent overloads and ensure devices stay within safe operating ranges.

Technical Details of Eaton Tripp Lite Series 1.9kW Single-Phase Local Metered PDU

• Power capacity: 1.9 kW (approximately 15.8 A at 120 V), delivering stable, predictable performance for mixed IT loads without exceeding circuit limits.
• Voltage and frequency: 120 V at 60 Hz, suitable for North American data centers, server rooms, and office IT environments that require consistent power delivery.
• Outlets: 28 x NEMA 5-15/20R outlets, enabling compatibility with a wide range of devices from servers to network gear and storage appliances.
• Input connector: L5-20P locking power input with a 15 ft (4.57 m) cord, providing a secure, code-compliant connection to compatible power sources.
• Adapters included: L5-20P to 5-20P adapter for accommodating devices with different plug types and simplifying deployments without extra accessories.
• Metering capabilities: Local metering delivers real-time readings to help monitor, manage, and optimize energy usage at the outlet row and across the PDU system.
• Mounting configuration: 0U vertical design compatible with standard 19-inch racks, maximizing usable space without adding depth or width to the rack footprint.
• Construction and protection: Rugged enclosure with built-in protections to guard against overloads, short circuits, and overheating in demanding data-center environments.
• Cable length: 15 ft (4.57 m) cord length provides flexible routing while keeping cords within reach for devices in typical rack layouts.

how to install Eaton Tripp Lite Series 1.9kW Single-Phase Local Metered PDU

• Plan your rack layout to ensure adequate clearance for ventilation, cable management, and easy visibility of the local meter display. Position the PDU so operators can read the real-time data without moving devices.
• Install the PDU in a standard 19-inch rack in a 0U vertical orientation. Align mounting holes with the rack’s rails and secure the unit to maintain stability under cable movement and service access.
• Connect the L5-20P input plug to a compatible 120 V power circuit using the included 15 ft cord. Verify that the circuit’s amperage rating matches the PDU’s 15–16 A range, and that the circuit isn’t already near capacity.
• Route the 28 outlets to your devices with mindful cable management. Use Velcro ties or cable combs to keep significant bundles organized and to promote unobstructed airflow around the front and rear of the rack.
• Leverage the local metering to monitor real-time power usage. Set up any available alerts or thresholds to be notified if currents exceed safe limits, helping prevent unexpected downtime.
• For devices with 5-20 or 5-15 plugs, use the included L5-20P to 5-20P adapter as needed to maintain secure, compliant connections and reduce the risk of loose connections during operation.
• Periodically inspect connections, ensure load distribution across outlets remains balanced, and perform routine maintenance checks to sustain uptime, improve energy efficiency, and extend the life of your IT equipment.

Frequently asked questions

• What is the maximum power this PDU can handle? The unit is rated at 1.9 kW (about 15.8 A at 120 V), making it suitable for a wide range of single-phase IT equipment while staying within common circuit limits.
• What type of outlets are on the PDU? It features 28 x NEMA 5-15/20R outlets, supporting both 5-15 and 5-20 plug configurations for flexible device connections.
• What kind of input power does it require? The PDU uses a locking L5-20P input with a 15 ft cord, designed to securely connect to compatible 120 V circuits.
• Does this PDU provide local metering? Yes. Local metering offers real-time visibility into power usage at the PDU, helping manage loads and plan for capacity with precision.
• Is this a 0U rack-mount unit? Yes. The 0U vertical design is intended to maximize rack density by occupying no horizontal rack space, allowing more IT equipment in the same footprint.
• Is an adapter included for different plug types? The package includes an L5-20P to 5-20P adapter to facilitate connections to devices with varying plug configurations.
• How do I read the meter data? Use the local display to view key parameters such as current (A), voltage (V), and power (kW). Some models also accumulate kWh; consult the model’s user guide for specific features.
