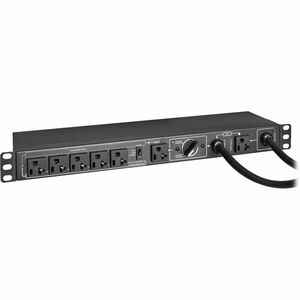

Eaton Tripp Lite Series 100-125V 16A Single-Phase Hot-Swap PDU with Manual Bypass

Power reliability is non‑negotiable in today’s data centers, telecom rooms, and lab environments. The Eaton Tripp Lite Series 100-125V 16A Single-Phase Hot-Swap PDU with Manual Bypass is engineered for reliability in critical environments where uninterrupted power is essential. This advanced Power Distribution Unit (PDU) delivers dependable distribution to network gear, servers, storage, and other peripherals while offering exceptional maintenance convenience. The hot‑swap design means technicians can replace a faulty module or upgrade components without taking down connected equipment, helping to minimize downtime and keep operations running smoothly. The integrated manual bypass provides a safe and straightforward path for service work, allowing maintenance to proceed without interrupting power to the loads that rely on the PDU. The compact 1U form factor makes it ideal for dense rack environments, enabling efficient use of space in data centers, server rooms, and edge deployments. Designed to accommodate a wide range of IT devices, the PDU features six NEMA 5‑20R outlets for flexible device connections and two NEMA 5‑20P inputs to support dual feeds or redundant power configurations. This combination makes it a versatile solution for mixed IT environments where both energy management and uptime are critical. The unit’s rack or wall‑mount capabilities give you deployment flexibility, whether you’re outfitting a standard 19" rack in a data center or outfitting a telecom cabinet in a small office. In practice, this means you can consolidate power distribution while preserving the ability to carry out maintenance with minimal disruption. For organizations pursuing operational excellence, the Eaton Tripp Lite Series hot‑swap PDU with manual bypass represents a pragmatic, scalable approach to power management that aligns with best practices for availability and efficiency. The product’s clean, straightforward design also simplifies cabling and serviceability, which translates into shorter maintenance windows and easier audits. When uptime matters, this PDU helps you balance reliability, space efficiency, and cost‑effectiveness, delivering predictable performance for a wide range of equipment and workloads. The Eaton Tripp Lite Series PDU is built to stand up to the daily rigors of rack‑based deployments and busy data center floors, where cables are moved, devices are swapped, and routine inspections are part of the job. With its emphasis on reliability, flexibility, and ease of use, this PDU is a solid foundation for power distribution in modern IT environments that demand both uninterrupted power and adaptable mounting options to fit evolving infrastructure needs.

• Hot-Swap PDU with Manual Bypass enables maintenance without shutting down connected equipment, reducing planned downtime and speeding repairs.
• Six NEMA 5-20R outlets provide flexible, convenient connections for servers, switches, storage arrays, and peripheral devices.
• Two NEMA 5-20P inputs support dual feeds or a redundant power configuration, enhancing availability in critical workloads.
• 1U rack/wall-mount compatibility offers versatile installation options for dense data centers or space‑constrained closets.
• Operating specifications of 100-125V and 16A single‑phase cover a wide range of compact IT gear commonly deployed in small to mid‑sized deployments.

Technical Details of Eaton Tripp Lite Series 100-125V 16A Single-Phase Hot-Swap PDU with Manual Bypass

• Voltage: 100-125V AC
• Current Rating: 16A
• Phase: Single-Phase
• Outlets: 6 x NEMA 5-20R
• Inputs: 2 x NEMA 5-20P
• Mounting: 1U rack- or wall-mount capable
• Bypass: Manual Bypass feature for maintenance without interrupting power to connected loads

How to install Eaton Tripp Lite Series 100-125V 16A Single-Phase Hot-Swap PDU with Manual Bypass

To ensure a safe and effective installation, plan your layout to maximize accessibility of outlets and inputs while maintaining adequate airflow around the unit. Follow these steps to install the PDU in a standard 19" rack or on a suitable wall-mount location:

• Prepare the mounting surface and confirm there is sufficient space in the 1U height for the PDU and cable management. If mounting in a rack, gather the required rails or mounting hardware appropriate for your rack model. If wall‑mounting, ensure you have secure fasteners suitable for the wall type and weight load.
• Mount the PDU in the chosen location. Use proper hardware to secure it in the rack shelf or to the wall, ensuring it is level and stable to prevent wear on power cords.
• Connect the two NEMA 5-20P inputs to two power sources or a designed dual-feed/critical‑load configuration. Verify that both feeds are active and that circuit protection (breakers) matches the PDU’s rating.
• Route power cords and device cables with care to avoid pinching or strain. Use cable ties or management channels to keep cords tidy and ensure adequate airflow around the unit and surrounding equipment.
• Connect your devices to the six NEMA 5-20R outlets. Distribute loads evenly to prevent overloading a single outlet bank. If you have varying priorities, consider mapping critical devices to separate outlets for easier isolation during maintenance.
• Power on the PDU and perform a basic load test. Engage the manual bypass as required during maintenance activities to confirm that power to connected equipment remains uninterrupted while servicing any PDU components. Return the unit to normal operation after the service is complete and verify load integrity.

Frequently asked questions

• What is a hot-swap PDU with manual bypass? A hot-swap PDU allows modules or components to be replaced while power continues to flow to connected devices. The manual bypass provides a safe path to bypass the affected section during maintenance, enabling technicians to service equipment without powering down the loads.
• How many outlets does this PDU provide? It features six NEMA 5-20R outlets, offering flexible connection options for a range of IT devices and peripherals.
• What are the input connections? The PDU includes two NEMA 5-20P inputs to support dual feeds or redundant power configurations for higher availability.
• What mounting options are supported? The unit is designed for both 1U rack installation and wall-mount deployment, giving you flexibility to fit different space constraints and infrastructure layouts.
• What are the operating specifications? The PDU operates at 100-125V AC with a 16A current rating in a single-phase configuration, suitable for a variety of small to mid‑sized IT deployments.
