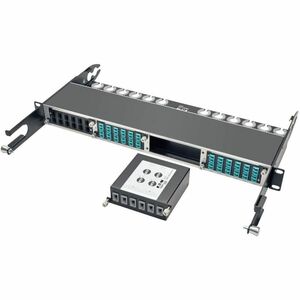

Eaton Tripp Lite N484-2M24-6M12 Breakout Cassette — 100G/120G to 40G High-Density MTP/MPO Breakout (2×24 → 6×12)

Upgrade your data center’s fiber backbone with the Eaton Tripp Lite N484-2M24-6M12 Breakout Cassette, a purpose-built, high-density module that converts 100G/120G network links into multiple, scalable 40G lanes. This breakout cassette is engineered for tight, efficient cabling within Tripp Lite’s N484 chassis family, delivering a streamlined path to greater port density without sacrificing performance. Its dual 24-fiber MTP/MPO connections and six 12-fiber MTP/MPO connections offer a robust solution for consolidating high-bandwidth traffic in a compact footprint. Designed for enterprise-grade reliability, the cassette is built to withstand the rigors of data center environments while maintaining precise fiber alignment and ease of installation.

• High-density breakout design: Two 24-fiber MPO/MTP connectors (male with pins) connect to six 12-fiber MPO/MTP connectors (male with pins), enabling efficient translation of 100G/120G traffic into multiple 40G lanes within a single, compact cassette.
• Broad data-rate versatility: Specifically engineered to support breakout from 100G/120G uplinks down to multiple 40G downstream connections, helping data centers scale throughput without requiring a complete network refresh.
• Chassis compatibility for seamless deployment: Designed for use with Tripp Lite’s N484-00U and N484-01U chassis. This cassette integrates into existing infrastructure to maximize port density and minimize real estate consumption in the rack.
• Clear, robust connector interfaces: Both sides use Male with Pins MTP/MPO connectors, ensuring reliable mating and alignment while simplifying patching and maintenance in busy data-center environments.
• Optimized for modular growth and organization: The breakout cassette promotes tidy cabling, improved airflow, and easier management by consolidating high-fiber links into a single, standardized module that can be reused across multiple chassis configurations as your network evolves.

Technical Details of Eaton Tripp Lite N484-2M24-6M12 Breakout Cassette

• Product family: Eaton Tripp Lite N484 breakout cassette (N484-2M24-6M12)
• Fiber configuration: (x2) 24-fiber MTP/MPO connectors to (x6) 12-fiber MTP/MPO connectors, all with male pins
• Data-rate breakout: 100G/120G to 40G breakout configuration enabled via the two 24-fiber to six 12-fiber mapping
• Chassis compatibility: Designed for use with Tripp Lite N484-00U and N484-01U chassis
• Cassette capacity per chassis: Up to 4 cassettes per N484-01U chassis; 1 cassette per N484-00U chassis
• Connector type: MTP/MPO, male with pins on both the 24-fiber and 12-fiber interfaces

How to install Eaton Tripp Lite N484-2M24-6M12 Breakout Cassette

• Power down the equipment and prepare the N484 chassis area. Ensure you have the appropriate fiber harnesses and label kits ready for the 2×24-fiber and 6×12-fiber connections.
• Remove any existing blanking panels or neighboring cassettes as needed to gain full access to the slot where the breakout cassette will be installed.
• Align the N484-2M24-6M12 cassette with the chassis backplane. Carefully slide the cassette into position, ensuring the connectors engage fully and the module latches securely into place.
• Connect the two 24-fiber MPO/MPO cables (male with pins) to the corresponding 24-fiber ports on the cassette. Then attach the six 12-fiber MPO/MPO cables (male with pins) to the six 12-fiber ports. Maintain proper cable routing to avoid excessive bending and to support orderly downstream connections.
• Confirm that all connections are secure and that the cassette is seated correctly. Reinstall any covers or panels and route cables with appropriate bend radii to protect signal integrity.
• Power up the chassis and perform a basic link test to verify proper connectivity. If available, run a standard acceptance test to ensure signal integrity across all 40G links and verify alignment with upstream 100G/120G ports.
• Label the cassette and its cables for easy identification during future maintenance. Keep a record of port mappings and fiber IDs to simplify troubleshooting and routine upgrades.

Frequently asked questions

• Q: What specific function does this breakout cassette perform? A: It converts high-density 100G/120G links into multiple 40G lanes via a configuration that uses two 24-fiber MPO/MPO connectors and six 12-fiber MPO/MPO connectors, enabling scalable, modular 40G connectivity from a single high-speed uplink.
• Q: Which chassis can this cassette be used with? A: It is designed for use with Tripp Lite N484-00U and N484-01U chassis, allowing flexible deployment across different chassis models within the N484 family.
• Q: How many cassettes can be installed in a single chassis? A: Up to four cassettes can be installed in an N484-01U chassis, while an N484-00U chassis typically accommodates one cassette unit per chassis.
• Q: What type of connectors does the cassette use? A: The cassette uses MTP/MPO connectors, with both the two 24-fiber ports and the six 12-fiber ports featuring male connectors with pins.
• Q: Is this solution suitable for new 100G/120G networks? A: Yes, it is designed to support breakout from 100G/120G uplinks to multiple 40G links, making it a practical choice for data centers pursuing modular growth and efficient cabling.
