Eaton Tripp Lite Series 100Gb/120Gb to 40Gb Breakout Cassette - (x2) 24-Fiber MTP/MPO ( Male with Pins ) to (x6) 12-Fiber OM4 MTP/MPO ( Male with Pins )

Tripp Lite by EatonSKU: 4032436

Price:
Sale price$1,280.00

Description

Eaton Tripp Lite Breakout Cassette: 2×24-Fiber MTP/MPO to 6×12-Fiber OM4 MTP/MPO (100/120 Gb to 40 Gb)

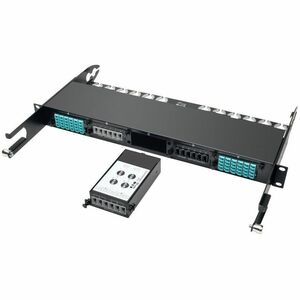

Elevate your data-center fiber backbone with the Eaton Tripp Lite N482-2M24-6M12 Breakout Cassette. This high-density module is engineered to streamline multi-rate, high-bandwidth connectivity by converting two 24-fiber MTP/MPO trunks operating at 100 Gb or 120 Gb into six 12-fiber OM4 MTP/MPO outputs. Ideal for environments that demand scalable uplink/downlink configurations, the cassette integrates seamlessly with Tripp Lite’s N482-01U and N482-02U High Density Fiber Enclosure Panels, delivering exceptional density without compromising signal integrity. The design features male MTP/MPO connectors with pins for secure mating, robust performance, and dependable, long-term operation in busy data centers, enterprise campuses, and HPC clusters.

Whether you’re expanding a current 40 Gb network or migrating toward 100/120 Gb backbones, this breakout cassette provides a versatile, future-ready solution. Its compact footprint reduces cable clutter while maintaining straightforward access for installation, testing, and maintenance. By consolidating multiple fibers into a tidy, modular format, it enables rapid reconfiguration, simplifies fiber management, and supports a wide range of fiber types and transceiver technologies used in modern networking environments.

  • High-density breakout design: Converts (x2) 24-fiber MTP/MPO inputs to (x6) 12-fiber OM4 MTP/MPO outputs, enabling efficient aggregation and distribution of multi-rate signals.
  • Multi-rate compatibility: Specifically engineered to support 100 Gb/120 Gb backbone connections that can be split into multiple 40 Gb channels, reducing the need for additional cable runs and enabling flexible pathway planning.
  • OM4 fiber optimization: Built for high-bandwidth, long-reach operation in modern data centers with OM4 multi-mode fiber to maximize throughput and minimize attenuation across the network.
  • Enclosure-ready design: Designed for use with Tripp Lite N482-01U and N482-02U High Density Fiber Enclosure Panels, delivering configurability and scale within a compact chassis footprint.
  • Reliable, easy integration: Features robust, pin-equipped MTP/MPO connectors for secure engagement, with a straightforward installation footprint that simplifies rack deployment and future upgrades.

Technical Details of Eaton Tripp Lite Breakout Cassette

  • Product type: Breakout cassette for high-density fiber enclosures
  • Fiber type: OM4 multi-mode fiber
  • Inputs: (2) 24-fiber MTP/MPO connectors (male with pins)
  • Outputs: (6) 12-fiber MTP/MPO connectors (male with pins)
  • Breakout mapping: 2×24F to 6×12F MTP/MPO breakout (100 Gb/120 Gb to 40 Gb configurations)
  • Enclosure compatibility: N482-01U and N482-02U High Density Fiber Enclosure Panels
  • Connectivity benefits: Streamlines routing for high-density networks and supports scalable transitions between multi-rate Ethernet standards
  • Pins: Male MTP/MPO connectors with pins for secure mating

how to install Eaton Tripp Lite Breakout Cassette

  • Prepare the enclosure: Ensure the N482-01U or N482-02U chassis is properly mounted and powered down according to site procedures. Verify that the enclosure has available slots for the breakout cassette.
  • Insert the cassette: Align the breakout cassette with the cassette slot in the High Density Fiber Enclosure Panel. Gently slide the module into position until it seats firmly and the latching mechanism engages.
  • Secure the module: If applicable, fasten any mounting screws or latches to lock the cassette in place, ensuring there is no movement that could stress the fiber connectors.
  • Connect trunk and fan-out cables: Attach the (x2) 24-fiber MTP/MPO trunk cables to the input connectors. Route the (x6) 12-fiber OM4 MTP/MPO output cables to their respective endpoints, maintaining clean, orderly cable management to minimize bend radius and crosstalk.
  • Label and test: Label the inputs and outputs for easy future maintenance. Perform a continuity and insertion-loss test to verify proper alignment and signal integrity across all channels before bringing services online.

Frequently asked questions

  • Q: What is the purpose of this breakout cassette? A: It serves as a high-density, modular solution to convert two 24-fiber 100/120 Gb MTP/MPO trunks into six 12-fiber OM4 MTP/MPO outputs, enabling flexible 40 Gb distribution within Tripp Lite N482 enclosures.
  • Q: Which fiber type does it use? A: The cassette uses OM4 multi-mode fiber for the output channels, optimizing bandwidth and reach in data-center environments.
  • Q: What connectors are involved? A: The module features (x2) input MTP/MPO connectors and (x6) output MTP/MPO connectors, all are male with pins for secure mating.
  • Q: Is this cassette compatible with all Tripp Lite enclosures? A: It is designed specifically for use with Tripp Lite’s N482-01U and N482-02U High Density Fiber Enclosure Panels. Confirm enclosure model compatibility before purchase.
  • Q: Can this cassette be hot-swapped or maintenance-only? A: The cassette is designed for use within compatible enclosures and supports standard maintenance procedures; refer to your enclosure manual for hot-swap capabilities and safety guidelines.
  • Q: Does this product come with additional accessories? A: Accessories such as trunk cables and patch cords are typically sold separately; verify bundle options with your supplier for complete deployments.
