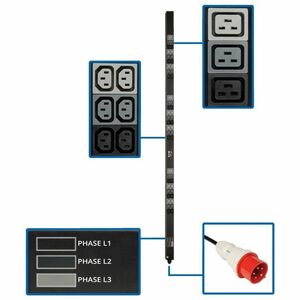

Eaton Tripp Lite Series 11.5kW 3-Phase Basic PDU

Engineered for reliability and efficiency in data centers, network closets, telecom rooms, and audio/video installations, the Eaton Tripp Lite Series 11.5kW 3-Phase Basic PDU delivers robust power distribution with a smart balance across three phases. This 0U, 70-inch unit is designed for demanding environments, offering a comprehensive outlet configuration (36 C13 and 9 C19) and a flexible 6-foot input cord to simplify installation in larger racks and distributed configurations. Ideal for small to mid-sized deployments, it provides essential power distribution without the complexity of advanced monitoring, making it a dependable backbone for critical IT infrastructure.

• High-capacity 3-phase power distribution: Delivers up to 11.5kW of balanced load to multiple devices, helping reduce voltage drop and improve efficiency across servers, storage arrays, networking gear, and other rack-mounted equipment.
• Versatile outlet configuration: 45 total outlets arranged as 36 C13 and 9 C19 sockets, enabling broad compatibility with common server PSUs, storage controllers, and network devices in a single power distribution solution.
• Long, low-profile form factor: A 70-inch 0U design paired with a 6-foot cord provides flexible routing and space-saving integration in large racks, multi-rack rows, or distributed power layouts while keeping front-facing outlets accessible.
• Rugged, industrial-grade input: Red IEC 309 input connector supports 360–415V feeds at 16/20A, making it suitable for data centers and telecom environments that rely on higher voltage three-phase power distribution.
• Reliable basic PDU for mission-critical environments: Built for dependable power distribution with straightforward operation, ideal for deployments that prioritize solid performance and simple management over advanced remote monitoring.

Technical Details of Eaton Tripp Lite Series 11.5kW 3-Phase Basic PDU

• - Get this information from the "specifications" section of the product from https://ec.synnex.com/ using product "UPC" or "SKU" as reference

How to Install Eaton Tripp Lite Series 11.5kW 3-Phase Basic PDU

• Plan your rack layout to accommodate a 70-inch, 0U PDU. Verify that your rack or enclosure can support the length and mounting positions required to align the outlets with front-facing access while maintaining clearance for cables and airflow.
• Power availability: Ensure the facility provides a three-phase feed within the 360–415V range and that circuit breakers and power distribution hardware (16/20A) are sized for the load you intend to place on the PDU. Confirm the building’s electrical code compliance for IEC 309 connections.
• Mounting: Secure the PDU in the rack or designated installation area using appropriate hardware. Given the 0U footprint and long length, support from rack rails or stabilizing brackets may be necessary to prevent movement and protect connected cables.
• Power connections: Connect the 6-foot input cord to the dedicated 360–415V power source using the red IEC 309 input receptacle. Ensure the connection is firm and that the supply is switched off during initial hookup to prevent arcing or equipment damage.
• Device connections: Systematically connect servers, storage devices, switches, and other equipment to the available C13 and C19 outlets. Balance loads across the three phases to optimize performance and reduce the risk of overloading a single phase.
• Cable management and labeling: Route cords neatly to maintain airflow and prevent accidental disconnections. Label outlets and circuits to simplify future maintenance and monitoring tasks.
• Initial power-on and verification: After all devices are connected, power up in a controlled sequence. Confirm that all outlets are delivering the expected voltage and that connected equipment operates normally under load. Periodically re-evaluate load distribution as you scale or reconfigure your rack environment.

Frequently Asked Questions

• Q: What is the power rating and phase configuration of this PDU?
• A: It is an 11.5kW, 3-phase basic PDU designed to distribute power efficiently across multiple rack-mounted devices in data centers and network rooms.
• Q: How many outlets and what types are included?
• A: The unit provides 45 outlets in total: 36 C13 and 9 C19 sockets, suitable for a range of servers, switches, and storage gear.
• Q: What voltages does it support for input and output?
• A: It uses a red IEC 309 input for 360–415V at 16/20A. The outlets supply 208–240V to connected equipment, aligning with common data center power standards.
• Q: What is the physical footprint and mounting format?
• A: The PDU features a 70-inch length with a 0U height, designed for flexible placement in large racks or along rows where space efficiency is critical.
• Q: Does this PDU include built-in monitoring or remote management?
• A: This is a basic PDU focused on reliable power distribution and does not include built-in monitoring features. For monitoring, consider adding compatible trailing edge devices or a separate management solution.
