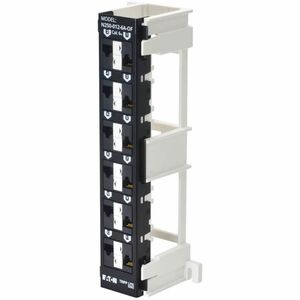

Eaton Tripp Lite Series 12-Port Cat6a Wall-Mount Patch Panel - PoE+ Compliant, 110, 568A/B, RJ45 Ethernet, Offset Ports, TAA

Tripp Lite by EatonSKU: 9611551

Price:
Sale price$104.64

Description

Eaton Tripp Lite Series 12-Port Cat6a Wall-Mount Patch Panel - PoE+ Compliant, 110, 568A/B, RJ45 Ethernet, Offset Ports, TAA

Elevate your network infrastructure with the Eaton Tripp Lite Series 12-Port Cat6a Wall-Mount Patch Panel. Engineered for reliability, scalability, and clean organization, this patch panel delivers high-performance Cat6a connectivity in a compact wall-mount form factor. It is designed for professional deployments where fast cabling, precise terminations, and tidy cable management matter most—from data closets and server rooms to commercial office environments. With 12 front RJ45 ports for quick patching, rear 110 termination for color-coded, secure connections, and PoE+ compatibility for power over Ethernet devices, this patch panel is a versatile backbone for modern networks. Its 568A/B compatibility and offset port arrangement help technicians simplify labeling, testing, and future upgrades while maintaining a neat, professional installation that meets demanding enterprise standards and government procurement requirements (TAA).

  • 12 front-facing RJ45 ports for rapid patching: Streamline everyday network changes by plugging Cat6a patch cables directly into the front of the panel, enabling fast troubleshoot and reconfigurations without removing the rear terminations.
  • Rear 110 punch-down termination with color-coded connections: Terminate cabling efficiently using a standard 110 tooling system, keeping conductors organized and aligned with industry best practices while minimizing the risk of miswiring during installations.
  • Cat6a performance for high-speed networks: Supports 10GBASE-T environments with superior crosstalk reduction and signal integrity, ensuring reliability for bandwidth-intensive applications such as video conferencing, large file transfers, and data center interconnects.
  • Offset port design for improved cable management: The offset RJ45 ports help create cleaner patch runs, easier labeling, and better clearance behind the panel—reducing bend radii strain and improving airflow in crowded racks or wall cavities.
  • PoE+ and TAA compliant: Built to handle power-over-Ethernet deployments while meeting the Trade Agreement Act requirements, making it suitable for enterprise, government, and educational procurement programs and ensuring compatibility with PoE+ devices like IP cameras, access points, and network switches.

Technical Details of Eaton Tripp Lite Series 12-Port Cat6a Wall-Mount Patch Panel

  • Ports: 12 front RJ45 outlets for quick patching and easy access
  • Cable termination: Rear 110 punch-down terminals with color-coded wiring blocks for precise, reliable terminations
  • Standards: Cat6a compliance for enhanced performance and future-proofing of high-speed networks; supports 568A/B termination schemes
  • Design: Wall-mount patch panel with offset port arrangement to optimize space, labeling, and cable routing in tight installations
  • Compliance: PoE+ capable and TAA compliant to meet enterprise and government procurement requirements

How to install Eaton Tripp Lite Series 12-Port Cat6a Wall-Mount Patch Panel

  • Plan your layout: Identify the location on the wall where the patch panel will be mounted, considering cable routing paths, accessibility for patching, and slack management for future expansion.
  • Prepare the mounting area: Verify that the wall box or mounting brackets are properly sized for the 12-port panel and that there is sufficient space behind the panel to accommodate cables and any future terminations.
  • Mount the panel: Secure the patch panel to the wall or a compatible frame using the appropriate screws and mounting hardware, ensuring a level installation for clean cable runs and labeling.
  • Terminate rear cables with 110 punch-down: Route Category 6a cabling to the rear 110 blocks, matching conductor pairs and color codes. Use a 110 punch-down tool to firmly seat each conductor, ensuring solid contact and reliable signal transmission.
  • Route and label front patch cables: Once rear terminations are complete, route front-facing Cat6a patch cables to their corresponding ports. Label each port clearly to facilitate quick troubleshooting and future modifications.
  • Test and verify: After termination, perform a continuity and wire-map test to confirm proper 568A/B termination and correct pair integrity. Validate PoE+ performance if powering devices through the panel or via connected switches.
  • Manage cables for airflow and accessibility: Use cable ties or Velcro to bundle and secure cables neatly, maintaining appropriate bend radii and leaving slack to accommodate future reconfigurations.

Frequently asked questions

  • Do you support PoE+ with this patch panel?

    Yes. The Eaton Tripp Lite 12-Port Cat6a Wall-Mount Patch Panel is PoE+ compliant, allowing power delivery to PoE-enabled devices when used with compatible PoE+ switches or midspans. This enables streamlined deployments for IP cameras, wireless access points, and other powered Ethernet devices while maintaining high-speed data transmission.

  • What networking standards and terminations does it support?

    The panel is Cat6a compliant and supports 568A and 568B termination schemes. Its rear 110 punch-down terminals facilitate color-coded, organized terminations that meet standard networking practices for reliable high-bandwidth performance.

  • Is the patch panel suitable for government or educational procurement?

    Yes. The patch panel is TAA compliant, which aligns with procurement requirements for government and educational institutions, helping organizations meet regulatory and compliance standards when purchasing networking hardware.

  • What environments is this patch panel best suited for?

    It is ideal for data closets, server rooms, and commercial office deployments that require a compact, wall-mount solution with 12 network ports, organized cabling, and straightforward maintenance. Its design supports scalable growth in both small offices and larger enterprise networks.

  • Are there any shielding options or variants available?

    Shielding and variant configurations are not specified in the provided description. For specific shielding options or alternative models, please consult the official product specifications or contact the supplier directly to verify available configurations.
