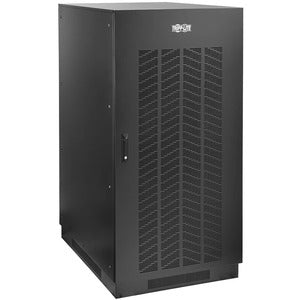

Eaton Tripp Lite Series ±120VDC External Battery Cabinet for 50-100K S3M-Series 3-Phase UPS

This external battery cabinet is designed to extend the runtime of compatible SmartOnline S3M-Series 3-Phase UPS systems. Built to support critical infrastructure in data centers, telecommunications networks, industrial facilities, and security systems, it offers scalable energy storage that helps keep essential operations online during power disturbances. The cabinet accepts a substantial battery capacity, allowing you to tailor runtime to your specific tolerance for outage duration and workload demands. Note that the unit requires 40x 100Ah batteries (not included) to reach its maximum storage capability, making it an ideal choice for facilities that require robust, long-lasting backup power.

• Extended Runtime for Critical Loads — Increase uptime for data centers, telecom networks, manufacturing floors, and security systems by adding a high-capacity external battery cabinet to your S3M-Series UPS.
• Seamless Compatibility with SmartOnline S3M-Series 3-Phase UPS — This cabinet is engineered to connect with compatible S3M-Series units, enabling coordinated power management and streamlined backup operations across multi-rack environments.
• Scalable Battery Capacity — The cabinet is designed to house up to 40 x 100Ah batteries (batteries not included), providing flexible storage to match your protection needs and runtime targets.
• Rugged, Purpose-Built Enclosure — Built to withstand demanding facilities environments, offering secure battery bays and a sturdy external cabinet that integrates with your data center or industrial power infrastructure.
• Centralized Backup Power Management — When paired with the appropriate UPS and monitoring software, the external cabinet supports efficient runtime planning, status monitoring, and orderly shutdowns during extended outages.

Technical Details of Eaton Tripp Lite External Battery Cabinet for 50-100K S3M-Series 3-Phase UPS

• Purpose: External battery cabinet intended to extend runtime for 50-100K SmartOnline S3M-Series 3-Phase UPS installations
• Voltage: ±120VDC battery cabinet configuration for compatible UPS systems
• Compatibility: Specifically designed to connect with SmartOnline S3M-Series 3-Phase UPS units
• Battery capacity: Supports up to 40 x 100Ah batteries (batteries not included)
• Connectivity: Integrates with the UPS for coordinated backup power and monitoring (requires appropriate cables and mounting hardware per manufacturer guidelines)
• Enclosure: Rugged external cabinet designed for data centers, industrial facilities, and other critical environments

How to Install Eaton Tripp Lite External Battery Cabinet

• Plan the installation location in a clean, secure, and well-ventilated area with adequate clearance for maintenance and cable routing.
• Power down and isolate the associated S3M-Series UPS according to the manufacturer’s safety procedures to prevent any risk during installation.
• Verify compatibility between the cabinet, your S3M-Series UPS model, and the intended battery configuration (40 x 100Ah batteries, not included).
• Mount the external cabinet in its designated rack or enclosure footprint and secure it according to the site’s mechanical standards.
• Install and connect the battery modules to the cabinet, ensuring proper polarity and secure electrical connections in line with the UPS integration guidelines.
• Connect the cabinet to the S3M-Series UPS using the recommended DC cabling and interfaces. Confirm proper signal and power wiring, then restore power to the system.
• Power up the UPS and cabinet, run a commissioning test, and configure battery monitoring through the UPS software to verify runtime, health status, and alarm notifications.
• Document the installation, including battery type, quantity, and wiring details, to support future maintenance and battery replacement planning.

Frequently Asked Questions

• What is the purpose of this external battery cabinet? It extends the runtime of compatible SmartOnline S3M-Series 3-Phase UPS systems, providing longer outage protection for critical loads such as data centers, telecom networks, and industrial facilities.
• How many batteries does it require? The cabinet is designed to accommodate up to 40 batteries of 100Ah capacity each. Batteries are not included with the cabinet.
• Is this cabinet compatible with all S3M-Series UPS models? It is intended for use with compatible 50-100K S3M-Series 3-Phase UPS installations. Confirm model compatibility with your UPS documentation before purchase.
• Does it come with installation hardware or cables? This description covers the cabinet itself and battery capacity. Installation hardware and cables are typically provided or specified by the UPS integration guide or your installer, and must be sourced separately if not included.
• Can I monitor the cabinet status from the UPS software? Yes. When correctly connected to a compatible UPS, battery status and runtime information can be monitored via the UPS management software, enabling centralized backup power oversight.
• Who should install this cabinet? A qualified electrical technician or data-center technician familiar with high-availability power systems should perform the installation to ensure safety and proper integration.
