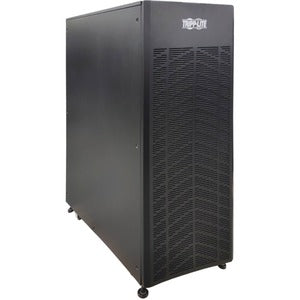

Eaton Tripp Lite External Battery Cabinet for Select 10-30K S3M-Series 3-Phase UPS

Ensure your critical operations stay online when power fails with the ±120VDC External Battery Cabinet designed for select SmartOnline S3M-Series 3-phase UPS systems. This high-capacity external battery solution is purpose-built to deliver extended runtime for data centers, telecommunications networks, industrial facilities, security systems, and emergency response environments. The cabinet pairs seamlessly with compatible S3M-Series UPS units to provide resilient, scalable backup power, helping you protect uptime, prevent data loss, and maintain mission-critical performance even during outages.

• High-capacity battery bank: 20 x 40Ah VRLA ( AGM) batteries deliver robust, maintenance-friendly runtime for critical loads. This substantial stack increases available runtime, enabling longer graceful shutdowns or continued operation during grid interruptions.
• ±120VDC external battery solution: Optimized for compatible SmartOnline® S3M-Series 3-phase UPS, providing a stable DC backfeed that extends runtime without overtaxing the main UPS or facility power systems.
• Extended runtime for essential services: Ideal for data centers, telecom networks, industrial automation, security monitoring, and emergency services where uninterrupted power is non-negotiable and downtime costs are high.
• Rugged, serviceable cabinet: Built to endure 24/7 operation in demanding environments, with straightforward access for inspection, maintenance, and battery replacement, helping reduce maintenance windows and lifecycle costs.
• Easy integration for reliable uptime: Designed for plug-and-play compatibility with select S3M-Series UPS units, enabling a smooth deployment path and quick return on investment while preserving system reliability.

Technical Details of Eaton Tripp Lite Series ±120VDC External Battery Cabinet for Select 10-30K S3M-Series 3-Phase UPS

• Battery type: VRLA ( AGM)
• Number of batteries: 20
• Battery configuration: 20 x 40Ah per battery
• External DC voltage: ±120VDC
• Compatibility: Select SmartOnline® S3M-Series 3-Phase UPS units (10-30KVA range)
• Battery chemistry: VRLA AGM for reliable performance in varied temperatures and environments
• Applications: Data centers, telecommunications, networks, industrial facilities, security, and emergency systems requiring extended backup power
• Package contents: External battery cabinet with 20 x 40Ah VRLA AGM batteries included (where specified by SKU)

how to install Eaton Tripp Lite Series ±120VDC External Battery Cabinet for Select 10-30K S3M-Series 3-Phase UPS

• Verify compatibility: Confirm that your UPS is within the SmartOnline S3M-Series 3-Phase family and that the UPS model supports external ±120VDC battery configurations. Review the user manual or consult technical support if you are unsure about the exact SKU compatibility.
• Power down and prepare: Before installation, power down the UPS and disconnect main input sources to ensure a safe work environment. Confirm that any battery replacement or extension work complies with your facility’s safety protocols and local regulations.
• Position the cabinet: Place the external battery cabinet in a secure, well-ventilated area near the UPS. Ensure there is adequate clearance for maintenance access and cable routing, and follow any manufacturer-recommended mounting or stand requirements if floor mounting or rack mounting is used.
• Connect the DC link: Use the supplied DC interconnect cables to connect the external battery cabinet to the UPS DC input/output terminals designated for external battery banks. Follow the wiring diagram in the installation guide precisely to avoid incorrect polarity or loose connections.
• Secure and inspect: After wiring, secure all connections with the appropriate fasteners, verify cable routing to prevent strain or interference, and inspect physically for signs of damage or wear. Check for proper ventilation signs and ensure there are no obstructed vents in the cabinet or surrounding area.
• Configure UPS settings: Power up the UPS and access its configuration interface to recognize the external battery bank. Enable external battery monitoring if available, and set runtime expectations according to the load profile and desired uptime targets.
• Test and validate: Run a controlled battery discharge or runtime test to validate that the external cabinet provides the expected extension of runtime under your typical load. Monitor voltage, current, and temperature readings during the test to confirm stable operation.
• Documentation and maintenance: Record serial numbers, installation dates, and maintenance windows. Establish a regular inspection and battery health check schedule to ensure long-term reliability and uptime performance.

Frequently asked questions

• Q: What is the primary benefit of using an external ±120VDC battery cabinet with S3M-Series 3-Phase UPS?
  A: The external cabinet provides a substantial boost to runtime, allowing critical loads to remain powered during outages beyond the capabilities of the UPS alone, which is essential for data integrity, equipment protection, and uninterrupted service in high-demand environments.
• Q: What batteries are included in this cabinet?
  A: The cabinet includes 20 VRLA ( AGM) batteries, each rated at 40Ah, forming a high-capacity bank designed for extended backup periods.
• Q: Is this external battery cabinet compatible with all S3M-Series 3-Phase UPS units?
  A: Compatibility is specified for select 10-30K S3M-Series 3-Phase UPS units. Always verify model compatibility with the vendor or reference the product SKU to ensure proper integration.
• Q: How should I approach installation to ensure safety and reliability?
  A: Installation should be performed by qualified personnel following the manufacturer’s instructions. Key steps include verifying compatibility, powering down the system, mounting the cabinet in a suitable location, correctly wiring the DC interconnects, configuring UPS settings, and conducting a runtime test after installation.
• Q: Can this cabinet be used to extend uptime for critical services such as data centers and security systems?
  A: Yes. The external battery cabinet is designed to extend uptime for critical loads, including data centers, telecommunications networks, industrial facilities, security systems, and other operations where continuous power is essential.
• Q: What maintenance considerations come with VRLA AGM batteries?
  A: VRLA AGM batteries are maintenance-free compared to flooded lead-acid types, but they still require periodic inspection, temperature monitoring, and eventual replacement when capacity declines. Use proper safety equipment and follow the manufacturer’s recommended maintenance plan to maximize life and reliability.
