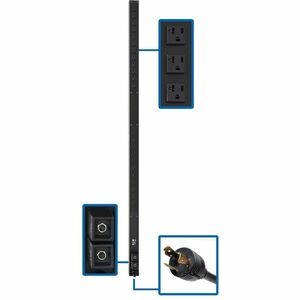

Eaton Tripp Lite Series 2.9kW 120V Single-Phase Basic PDU

The Eaton Tripp Lite Series 2.9kW 120V Single-Phase Basic PDU is a reliable power distribution solution designed to meet the demanding needs of small to mid-size data centers, computer rooms, and network closets. This compact, robust PDU ensures critical equipment receives stable power with the versatility to support a dense rack environment. Built to simplify electrical management, it delivers efficient distribution to multiple devices while fitting neatly into a standard 19-inch rack configuration. Ideal for IT cabinets that require a cost-effective, essential PDU, this model helps you maximize uptime and keep networked systems running smoothly.

• Power capacity and configuration: 2.9 kW at 120V, single-phase operation, providing dependable distribution for racks with diverse equipment while maintaining performance consistency across outlets.
• Outlet count and type: 24 NEMA 5-15R/5-20R receptacles allow flexible connections for a wide range of servers, switches, and peripherals without needing additional adapters or power strips.
• Input and cord: L5-30P locking input connector paired with a 10-foot cord offers secure, versatile power sourcing with ample length to reach standard power outlets in most data centers or equipment rooms.
• Rack compatibility and footprint: Designed for 0U installation with a substantial 63.75-inch depth, enabling full utilization of rack space while keeping cables organized and accessible for maintenance.
• Target applications: Specifically suited for small to mid-size data centers, server rooms, and network closets where a straightforward, dependable PDU is essential for centralized power distribution and equipment reliability.

Technical Details of Eaton Tripp Lite Series 2.9kW 120V Single-Phase Basic PDU

• Power rating: 2.9 kW (120V, single-phase)
• Output receptacles: 24 x NEMA 5-15R/5-20R outlets
• Input connector: L5-30P locking inlet
• Cord length: 10 feet
• Chassis/rack compatibility: 0U rack-mountable with a depth of 63.75 inches
• Voltage and phase: 120V, single-phase

How to install Eaton Tripp Lite Series 2.9kW 120V Single-Phase Basic PDU

• Plan your rack layout and identify a suitable location for the PDU within the cabinet to minimize cable clutter and ensure easy access to outlets.
• Mount the PDU to the 19-inch rack using compatible hardware, ensuring it is securely installed in a 0U position to maximize available space for equipment.
• Connect the 10-foot cord to a properly rated 120V power source, using the L5-30P locking inlet to ensure a secure connection and reduce the risk of accidental unplugging.
• Route and organize cables from servers, switches, and other devices to the 24 NEMA 5-15R/5-20R outlets, labeling outlets if needed to simplify future maintenance and hot-swapping of components.
• Power on the rack and verify that all connected devices receive stable power and that there are no loose connections or cable interference with cooling airflow.

Frequently asked questions

• Q: What is the power capacity of this PDU?
  A: It delivers up to 2.9 kW at 120V in a single-phase configuration, suitable for moderate rack loads.
• Q: How many outlets does the PDU provide?
  A: It features 24 NEMA 5-15R/5-20R outlets to accommodate multiple devices without needing extra power strips.
• Q: What type of input plug is used?
  A: The PDU uses a locking L5-30P input connector with a 10-foot cord for secure, flexible power delivery.
• Q: Is this a 0U rack-mount PDU?
  A: Yes, it is designed for 0U installation, with a deep chassis (63.75 inches) to fit within standard 19-inch racks.
• Q: What environments is this PDU best suited for?
  A: It is ideal for small to mid-size data centers, computer rooms, and network closets needing reliable, centralized power distribution.
