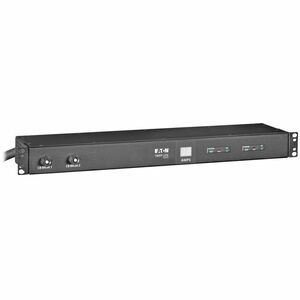

Eaton Tripp Lite Series 2.9kW Single-Phase Local Metered PDU with ISOBAR Surge Protection

Deliver robust, network-grade power to multiple loads while safeguarding sensitive equipment from dangerous surges and spikes. The Eaton Tripp Lite Series 2.9kW Single-Phase Local Metered PDU with ISOBAR Surge Protection offers reliable 120V single-phase power distribution with precise local metering. This unit is purpose-built for telecom, security, data, audio/video, and professional AV installations where uptime and power quality are critical. With its compact 1U rack-mount footprint and a 15-foot cord, it integrates seamlessly into standard racks, cabinets, and enclosures, delivering neat, scalable power management for growing networks and facilities.

• Power distribution you can trust: This PDU delivers up to 2.9 kW across 12 NEMA 5-15/20R outlets from a single 120V source, providing ample capacity to run diverse devices—from network switches and servers to IP cameras and rack-mounted audio/video gear. The design prioritizes balanced load distribution to help prevent nuisance tripping and overheating, while maintaining clean, dependable voltage across all connected devices.
• Integrated ISOBAR surge protection: Built-in ISOBAR surge protection absorbs and diverts transient energy away from connected equipment. With 3840 joules of surge energy absorption, this PDU defends against spikes caused by lightning, switching transients, and power anomalies that can degrade performance or shorten the life of sensitive electronics. The protection circuitry works in real time to reduce the risk of voltage fluctuations that can damage critical components.
• Local metering for real-time visibility: The local metered design provides immediate insights into electrical parameters such as line voltage, current draw, and energy usage for each outlet bank. This visibility supports proactive power management, capacity planning, and energy efficiency initiatives, enabling IT and facilities teams to optimize rack layouts and maintain consistent power quality across devices.
• Flexible input and practical cabling: With an L5-30P input plug and a 15-foot cord, this PDU offers flexible installation options in varied rack environments. The longer cord length simplifies placement in rooms where racks are oriented away from the power source, while the secure L5-30P connection ensures a stable, code-compliant power feed for high-demand equipment. Cable management features also help reduce clutter and improve airflow.
• Rack-mountable and space-efficient: The 1U rack-mount form factor fits neatly into standard server racks and cabinet enclosures, maximizing space efficiency in crowded data rooms or equipment closets. The slim profile allows you to consolidate power distribution without sacrificing performance, while keeping power distribution organized and easy to monitor.

Technical Details of Eaton Tripp Lite Series 2.9kW Single-Phase Local Metered PDU with ISOBAR Surge Protection

• Power rating: 2.9 kW (approximately 24 A at 120 V) to support multiple high-demand devices simultaneously without overloading a single circuit.
• Voltage and phase: 120 VAC, single-phase, optimized for common office, data center, and AV environments.
• Surge protection: ISOBAR circuitry rated at 3840 joules, engineered to absorb and dissipate surge energy efficiently and protect connected equipment from damaging transient events.
• Outlets: 12 NEMA 5-15/20R receptacles, arranged to accommodate both standard and high-current devices while promoting organized cable routing.
• Input plug: L5-30P, offering a secure and compliant connection to compatible power sources and UPS systems where applicable.
• Cord length: 15 ft, enabling flexible placement within racks and rooms with different power source locations.
• Enclosure and rack compatibility: 1U rack-mountable enclosure designed for standard server racks, cabinets, and telecom enclosures, ensuring a compact footprint without compromising durability.
• Local metering: Real-time monitoring of power usage at the PDU level to support energy management and equipment health analysis.

how to install Eaton Tripp Lite Series 2.9kW Local Metered PDU with ISOBAR Surge Protection

• Plan your rack layout to optimize airflow and accessibility. Identify a suitable 1U rack space that allows clear access to outlets and the metering display, while ensuring the 15-foot cord can reach the power source without creating tripping hazards.
• Mount the PDU securely in the rack using the appropriate screws or mounting hardware. Verify that the mounting rails are properly aligned and that the PDU is level to prevent outlet misalignment and strain on cables.
• Connect the PDU’s L5-30P input plug to a compatible 120 VAC power source or an appropriate UPS output. Ensure the circuit can handle the total load (up to ~24 A) and that protections such as breakers or fuses are in place as required by local electrical codes.
• Route the loads to the 12 NEMA 5-15/20R outlets, grouping devices by function (e.g., networking equipment, servers, A/V gear) to simplify monitoring and maintenance. Use cable management accessories to minimize clutter and improve airflow around equipment bays.
• Power on the PDU and verify that the local metering readouts reflect proper voltage and current. Check that all connected devices boot correctly and monitor for any signs of overcurrent on specific outlets. If surge events occur, confirm that surge protection indicators respond appropriately (or consult the user manual for diagnostic indicators).

Frequently asked questions

• Q: What is the primary benefit of a local metered PDU? A local metered PDU provides real-time visibility into power usage at the device or group level. This enables precise capacity planning, energy management, and quicker troubleshooting when electrical issues arise. It helps prevent overloading circuits and supports informed decisions about equipment placement and upgrade needs.
• Q: Is this PDU suitable for a small data center or telecom cabinet? A: Yes. With 2.9 kW of power, 12 outlets, 1U rack-mount form factor, and robust surge protection, this PDU is well-suited for telecom closets, security appliance racks, and small data-center enclosures where space is at a premium and reliability is essential.
• Q: How does ISOBAR surge protection benefit my equipment? A: ISOBAR protection is designed to absorb and dissipate surge energy, reducing the risk of voltage spikes damaging sensitive components. In environments with frequent electrical transients, this protection helps extend the life of network gear, servers, and other critical devices.
• Q: What outlets are available on this PDU? A: The unit provides 12 NEMA 5-15/20R outlets, allowing for flexible connections of a mix of devices typically found in racks and AV installations, while preserving organized cable management.
• Q: How do I install this PDU safely? A: Install in a properly grounded rack, connect to a suitable 120 VAC source using the L5-30P plug, distribute loads across outlets evenly, and ensure that the total connected load does not exceed the 2.9 kW rating. Follow local electrical codes and refer to the user manual for detailed safety instructions.
