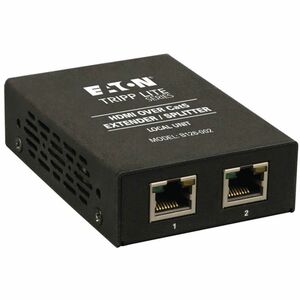

Eaton Tripp Lite Series 2-Port HDMI over Cat5/6 Extender/Splitter – Box-Style Transmitter

The Eaton Tripp Lite Series 2-Port HDMI over Cat5/6 Extender/Splitter delivers dependable, professional-grade performance for distributing high-definition video and audio across long distances using standard Cat5e or Cat6 cabling. This box-style transmitter is engineered for simplicity and reliability in busy environments, from corporate conference rooms to classrooms, retail displays, and digital signage networks. By combining an easy setup with a robust distribution capability, it empowers you to extend a single HDMI source to two displays with synchronized video and audio, while preserving signal integrity, HDCP protection, and consistent performance. The compact enclosure is designed for discreet placement on a desk, in a rack, or mounted behind displays, helping you achieve clean cable management and polished aesthetics. Whether you’re upgrading a small meeting space, aligning content across multiple screens, or building a scalable digital signage solution, this extender/splitter provides a practical, scalable path to richer presentations and engaging multi-screen experiences.

• Extends HDMI video and multi-channel audio from a single source to two displays over standard Cat5e/6 cabling, preserving signal fidelity, color accuracy, and HDCP protection for reliable presentations, training sessions, or digital signage playback.
• Long-distance performance up to 150 ft (45 m) with commonly available Cat5e/6 cables, enabling flexible room layouts, ceiling-mounted projectors, or wall-mounted displays without compromising picture quality or synchronization.
• Box-style transmitter design offers a compact, tidy installation that can sit on a desk, inside a cabinet, or behind displays; its rugged enclosure supports demanding environments and makes wiring neat and accessible.
• Two-port distribution capability allows you to drive two displays from a single HDMI source, facilitating synchronized content across adjacent monitors, split-screen demonstrations, or paired digital signage zones with minimal setup.
• TAA-compliant construction suitable for government and institutional deployments, expanding procurement options for corporate, education, and public-sector projects while maintaining trusted performance and reliability.

Technical Details of Eaton Tripp Lite Series 2-Port HDMI over Cat5/6 Extender/Splitter

• Distance: Up to 150 ft (45 m) when using Cat5e/6 cabling, enabling versatile placement of source devices and displays across large rooms or multiple display zones.
• Configuration: 2-port HDMI extender/splitter arrangement on the transmitter side to distribute a single HDMI source to two remote displays while preserving the integrity of the video and audio signal.
• Connectors and interface: HDMI input on the transmitter paired with RJ45-like outputs to compatible receiver units; supports standard HDMI video with HDCP protection for secure content delivery.
• Enclosure and mounting: Box-style transmitter with a compact footprint designed for easy placement on desks, in cabinets, or mounted in a small rack, delivering a clean, professional installation.
• Compliance and compatibility: TAA-compliant product that works with standard HDMI devices and content; designed to be compatible with common HDMI sources and displays found in business and education environments.

How to install Eaton Tripp Lite Series 2-Port HDMI Over Cat5/6 Extender

• Step 1: Connect your HDMI source device (such as a laptop, Blu-ray player, or media player) to the transmitter’s HDMI input using a standard HDMI cable. Confirm the source is powered on and set to an appropriate output resolution to ensure compatibility with downstream displays.
• Step 2: Run Cat5e or Cat6 cabling from the transmitter to the two remote display locations. Use separate runs if needed for layout flexibility, ensuring each path maintains proper shielding and avoids interference from other cables.
• Step 3: Attach each Cat5e/6 run to the corresponding receiver module at each display location, then connect the receiver’s HDMI output to the display using a standard HDMI cable. Ensure all displays are powered on and ready to receive a signal.
• Step 4: Provide power to the transmitter and any remote receivers (external power adapters as required by your kit). Verify that the router or network environment won’t introduce interference and that the displays are set to the correct HDMI input sources.
• Step 5: Power on the source, transmitters, receivers, and displays, then test the setup. Check video and audio alignment across both displays, confirm HDCP handshake is intact, and adjust any display settings (color, brightness, aspect ratio) to optimize viewing quality.

Frequently asked questions

• Q: What is the maximum distance supported by this extender?
  A: It extends HDMI video and audio up to 150 ft (45 m) when using standard Cat5e or Cat6 cabling, giving you ample range for mid-sized conference rooms, classrooms, or digital signage layouts without sacrificing signal integrity.
• Q: How many displays can be driven from one HDMI source?
  A: The system is designed to distribute content to two displays from a single HDMI source, making it ideal for side-by-side presentations or dual-screen presentations. For more than two displays, additional distribution equipment would be required.
• Q: Do I need external power for the transmitter and receivers?
  A: Yes. The transmitter and any remote receivers typically require external power adapters. Use the power supplies specified by Eaton Tripp Lite to ensure reliable operation and proper handshake between devices.
• Q: Will this extender work with all HDMI devices?
  A: The extender supports standard HDMI devices and HDCP-protected content. While it covers most common HDMI sources and displays, some nonstandard formats or specific EDID scenarios may require additional configuration or adapters.
• Q: Is the product compliant with the Trade Agreements Act (TAA)?
  A: Yes. This model is TAA-compliant, making it suitable for government procurement and other institutional deployments where regulatory compliance matters.
