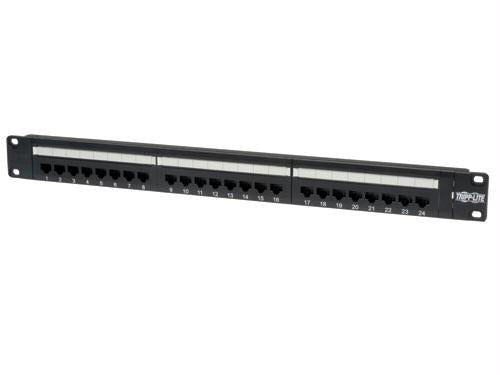

Eaton Tripp Lite Series 24-Port 1U Rack-Mount Cat6/Cat5 110 Patch Panel, 568B, RJ45 Ethernet, TAA

The Eaton Tripp Lite Series 24-Port 1U Rack-Mount Patch Panel is engineered to streamline network deployments in data centers, server rooms, and busy office environments. Designed to accommodate Cat6 and Cat5 cabling, this 24-port patch panel delivers reliable, organized connectivity within a compact 1U footprint. Ready for fast, orderly terminations with 110 blocks, it supports 568B wiring schemes to ensure consistent cross-connects across your Ethernet infrastructure. Built for longevity in demanding rack environments, this TAA-compliant patch panel integrates seamlessly into standard 19-inch racks, helping IT teams simplify cable management, reduce downtime, and scale their networks with confidence.

• Compact 1U design with 24 RJ45 ports provides dense, scalable connectivity in a standard 19" rack, ideal for data centers, server rooms, and growing office networks.
• Cat6 and Cat5 compatibility supports current and legacy Ethernet cabling, enabling smooth upgrades to higher speeds while maintaining backward compatibility with existing installations.
• 110 termination blocks offer fast, clean terminations with reduced risk of cross-connection errors, helping technicians complete installations quickly and reliably.
• 568B wiring compatibility and clear port labeling simplify port mapping, troubleshooting, and future moves, adds, and changes, keeping network administration straightforward.
• TAA-compliant construction ensures suitability for government procurement and regulated environments, backed by a sturdy steel chassis designed for dependable performance in rack-mount applications.

Technical Details of Eaton Tripp Lite Series 24-Port 1U Rack-Mount Patch Panel

• Port count: 24 RJ45 Ethernet ports for comprehensive patching coverage in a single unit.
• Termination: 110-style punch-down blocks for secure, durable terminations.
• Cable compatibility: Cat5e and Cat6 cabling supported for flexible network upgrades and legacy support.
• Wiring standard: 568B compatibility to maintain consistent cross-connects and ease of installation.
• Rack height and mounting: 1U, designed for standard 19" rack enclosure installations.
• Construction: Steel chassis built to handle the rigors of daily data-center life and durable enough for long-term use.
• Compliance: TAA-compliant, suitable for government and other procurement requirements.
• Connector type: RJ45 Ethernet connectors arranged for straightforward patching and minimal cable management issues.
• Application: Ideal for data centers, server rooms, and busy offices seeking organized, scalable network distribution.

How to Install Eaton Tripp Lite Series 24-Port Patch Panel

Installing this 24-port Cat6/Cat5 patch panel is a straightforward process that benefits from planning, labeling, and careful termination. Follow these steps to ensure a clean, reliable network distribution:

1. Plan and prepare: Before mounting, map out your cabling routes, identify device locations, and determine port labeling conventions. Decide which ports will connect to switches, routers, servers, and access points to minimize crossover and confusion during future changes.

2. Mount the panel: Power down relevant equipment and locate an appropriate position within a standard 19" rack. Align the patch panel’s mounting ears with the rack rails and secure it using the included screws or hardware recommended by your rack manufacturer. Ensure the panel sits evenly and does not sag under cable weight.

3. Route and group cables: Run Cat5e or Cat6 cables from devices or upstream patch points to the panel, leaving extra slack for routing and future moves. Use cable management bars or Velcro ties to keep bundles tidy and prevent strain on terminations.

4. Terminate with 110 blocks: Following your chosen wiring scheme, terminate the incoming cables on the 110 blocks. For consistency with most modern networks, align with the 568B color code and verify each pair’s activity using a trusted punch-down tool. Check that each port is correctly mapped to its corresponding switch or device.

5. Label and test: Apply clear, durable labels to each port to simplify ongoing management. Use a cable tester to verify continuity and proper pairing for every connection. Address any miswiring before re-terminating to avoid post-installation issues.

6. Finalize cable management: Tie off and arrange patch cables from the switch side to each port, keeping runs clean and free from tangles. Ensure air circulation around racks and avoid crimping or bending cables beyond recommended radii to preserve signal integrity.

7. Document the installation: Create a network map or inventory sheet detailing port assignments, cable types, and labeling schemes. This documentation will speed future changes and help with troubleshooting and audits.

Frequently asked questions

• Q: What does 1U mean in a patch panel description?

  A: 1U refers to the unit height of the patch panel in a standard 19-inch rack. It represents a single rack unit of vertical space, allowing for compact, space-efficient deployments in data centers and network rooms.

• Q: Does this patch panel support Cat5e and Cat6 cables?

  A: Yes. It is designed to accommodate both Cat5e and Cat6 cabling, providing flexibility for current networks and future upgrades.

• Q: Is 568B a required wiring standard for this panel?

  A: The panel is compatible with 568B wiring, which is a common standard for Ethernet terminations. Always ensure consistency across all terminations to maintain network reliability.

• Q: Is this patch panel suitable for government procurement?

  A: Yes. The product is TAA-compliant, making it suitable for government and other regulated procurement environments.

• Q: How do I ensure a neat installation?

  A: Plan your port labeling, use proper cable management, test every connection after termination, and document port mappings to simplify future moves, adds, and changes.
