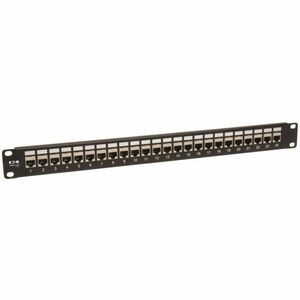

Eaton Tripp Lite Series 24-Port 1U STP Shielded Cat6/Cat5 Feedthrough Patch Panel – RJ45 Ethernet, TAA

The Eaton Tripp Lite Series 24-Port 1U Rack-Mount STP Shielded Cat6/Cat5 Feedthrough Patch Panel is engineered to streamline network cabling while delivering dependable performance in demanding environments. Designed for 24 high-density RJ45 ports, this patch panel combines shielded STP protection with a practical feedthrough design that simplifies termination, improves signal integrity, and keeps your data center or office network organized. Built to handle modern Cat6 and legacy Cat5 cabling, it excels in data centers, server rooms, and professional workspaces where reliable connectivity and tidy cable management are essential. This patch panel is TAA compliant, ensuring accessibility for government and regulated industries, and it fits standard 19-inch racks in a compact 1U profile to maximize rack space without sacrificing performance or scalability.

• Premium 24-port shielded design: This patch panel features 24 RJ45 shielded connectors within a rugged 1U steel enclosure, engineered to minimize electromagnetic interference (EMI) and reduce crosstalk. The shielded construction helps maintain high-speed integrity for sensitive applications such as 1GbE, 10GbE, and future-proofed networks, even in electrically noisy environments. The result is cleaner signal transmission and more reliable data throughput across all ports, ideal for dense rack deployments.
• Cat6/Cat5 compatibility with feedthrough efficiency: Built to support both Cat6 and Cat5 cabling, the feedthrough design enables straightforward terminations and easy cable routing. This versatility allows you to upgrade gradually from older Cat5 infrastructure or integrate newer Cat6 runs without replacing the entire panel. The feedthrough mechanism keeps termination points secure while providing quick access for labeling, testing, and future reconfigurations, ultimately reducing downtime during upgrades.
• Compact 1U, 19-inch rack-mount form factor: Optimized for space-conscious installations, this patch panel occupies just 1U of vertical rack space and conforms to the standard 19-inch width. The result is an efficient solution for network closets and equipment racks where maximizing real estate matters. The sturdy metal housing and clean port layout promote better airflow, easier cable management, and simplified maintenance, even in high-density data centers.
• Durable, reliable construction with easy identification: The enclosure uses rugged steel construction designed to stand up to daily use in professional environments. Front-facing, color-coded labeling and clearly delineated ports enable technicians to quickly identify and connect cables, accelerate troubleshooting, and minimize errors during deployment or maintenance. This practical organization reduces the time spent on cabling tasks and supports scalable growth as your network evolves.
• TAA-compliant, enterprise-ready solution: This patch panel complies with Trade Agreements Act (TAA) requirements, making it suitable for government projects and other regulated deployments. Its compatibility with standard RJ45 Ethernet patch cords and network hardware makes it a versatile choice for commercial networks, education facilities, healthcare environments, and other settings where standardized, compliant networking components are essential for procurement and interoperability.

Technical Details of Eaton Tripp Lite Series 24-Port 1U Rack-Mount STP Shielded Cat6/Cat5 Feedthrough Patch Panel, RJ45 Ethernet, TAA

• Port count: 24 shielded RJ45 ports designed for Cat6 and Cat5 networking standards
• Shielding: STP (shielded twisted pair) housing and connectors to minimize EMI and crosstalk
• Mounting: 1U height, standard 19-inch rack compatibility for easy integration into most racks
• Connectivity: Front-facing RJ45 ports with a feedthrough back design for simplified termination and cable routing
• Compatibility: Supports Cat6 and Cat5 cabling, suitable for a range of network speeds and legacy installations
• Construction: Durable metal enclosure built to withstand demanding data center and office environments
• Compliance: TAA compliant for use in government and other regulated sectors
• Labeling and management: Port labeling options and organized port layout to streamline installation and maintenance

How to install Eaton Tripp Lite Series 24-Port 1U Rack-Mount STP Shielded Cat6/Cat5 Feedthrough Patch Panel, RJ45 Ethernet, TAA

• Step 1: Plan and prepare – Assess your rack space and plan a logical port labeling scheme. Gather the appropriate Cat6 or Cat5 cables, shielded RJ45 patch cords, cable ties, and labeling materials. Ensure the rack is level and secure, and power safety precautions are in place before you begin.
• Step 2: Mount the patch panel – Align the patch panel with the 19-inch mounting rails in your rack. Use the provided screws to secure the panel firmly in place. Confirm that the panel sits level and that there is adequate clearance for cable routing and airflow. The 1U height fits cleanly among other equipment without obstructing airflow or access to rear cabling.
• Step 3: Route and prepare cables – Plan trunk lines and runs for both front (patch panel) and rear (back-end terminations) sides. Maintain proper bend radii (generally at least 1x cable diameter) to protect performance. Keep power and data cables segregated where possible to minimize interference, and use color-coding to simplify future changes.
• Step 4: Terminate on the back and connect front ports – For a feedthrough panel, back-term cable terminations are secured through the panel’s rear access points. Route cables cleanly to the desired front ports and attach corresponding patches or patch cords. Take care to maintain consistent pairing between the network switch, router, or patch panels and the devices they serve, verifying that each port is properly terminated and labeled.
• Step 5: Test and document – Once all connections are made, perform comprehensive testing with a qualified network tester to verify continuity, slant, and proper speed capabilities (Cat6 performance expectations). Document port mappings and update your network diagram to reflect the new panel configuration. Finally, manage cables with ties and Velcro straps to preserve neat airflow and ease future changes.

Frequently asked questions

• Q: What is a feedthrough patch panel, and how does it differ from a traditional passive patch panel? A: A feedthrough patch panel provides pass-through terminations from the rear to the front, simplifying cable routing and testing. It eliminates the need for field-term soldering or punching down on the front, enabling faster deployments and easier reconfiguration.
• Q: Is this patch panel compatible with both Cat5 and Cat6 cables? A: Yes. The design supports Cat5 and Cat6 cabling, allowing you to work with legacy installations or upgrade incrementally to Cat6 as your network demands increase.
• Q: Does the patch panel reduce EMI and crosstalk? A: Indeed. The STP shielded construction helps minimize electromagnetic interference and crosstalk, improving signal integrity for high-speed Ethernet applications and reducing error rates in busy data environments.
• Q: Is this panel suitable for 19-inch racks and 1U installations? A: Yes. It is built to fit standard 19-inch racks and occupies a single 1U of vertical space, making it ideal for compact, high-density deployments in data centers and network closets.
• Q: Is the Eaton Tripp Lite 24-Port Patch Panel compliant with government procurement requirements? A: Yes. This patch panel is TAA compliant, which makes it eligible for government contracts and other regulated procurement processes.
• Q: What maintenance or labeling practices improve long-term performance? A: Adopt a consistent labeling scheme, maintain orderly cable routing with cable management accessories, and perform periodic testing to confirm port integrity. Keeping the patch panel clean and properly labeled reduces downtime and simplifies future upgrades.
