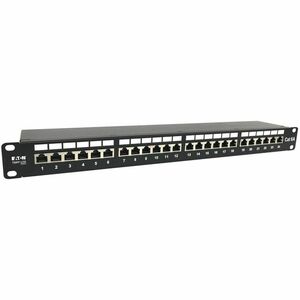

Eaton Tripp Lite Series 24-Port Cat6a Shielded Patch Panel — 10 Gbps, STP, 1U, TAA

Designed for high‑density networks, this Shielded 24-Port Patch Panel delivers reliable, high‑speed Cat6a connectivity in a compact 1U form factor. Built to withstand demanding data center and enterprise environments, it combines robust shielding, precise 110 punch‑down termination, and easy RJ45 connectivity to help you organize and manage your Cat6a cabling with professional precision.

• 24-port Cat6a shielded patch panel offering full RJ45 termination for high‑density networks while preserving signal integrity in crowded rack environments.
• Shielded design (STP) blocks electromagnetic interference (EMI) and crosstalk, ensuring stable, high‑bandwidth performance for critical applications.
• Color‑coded 110 punch‑down slots simplify terminations, speed up installations, and reduce field errors for a clean, organized copper backbone.
• 1U, 19-inch rack‑mount form factor provides space‑saving placement in racks and cabinets, while maintaining compatibility with standard mounting rails and accessories.
• 10 Gbps capacity and TAA compliance support today’s fastest Cat6a networks with a product that adheres to Trade Agreements Act standards for government and enterprise deployments.

Technical Details of Eaton Tripp Lite Series 24-Port Cat6a Shielded Patch Panel

• 24 shielded RJ45 ports for Cat6a cabling
• Cable type: Cat6a compliant
• Shielding: Shielded Twisted Pair (STP) construction
• Termination: 110 punch-down termination slots with color-coded organization
• Form factor: 1U height, 19-inch rack-mountable
• Compliance: TAA (Trade Agreements Act) compliant
• Performance: Supports up to 10 Gbps per port, suitable for high‑speed networks
• Labeling and management: clearly marked ports and blocks for quick identification

How to Install Eaton Tripp Lite Series 24-Port Cat6a Shielded Patch Panel

• Plan spacing and routing: Map your cabling plan, ensuring adequate routing space for cables and proper bend radii to maintain Cat6a performance.
• Mount the patch panel: Attach the unit to a standard 19" rack or cabinet using the included mounting hardware, positioning it where patch cables can reach switches, patch bays, and wall jacks.
• Route shielded cables: Run shielded Cat6a cables to the patch panel, keeping runs tidy with cable management bars or ties to minimize clutter and EMI exposure.
• Terminate with 110 blocks: Use the color-coded 110 punch-down slots to terminate each cable according to your wiring scheme (TIA/EIA standards). Press down firmly to ensure solid contact without damaging conductors.
• Connect to network devices: Attach patch cords from the RJ45 ports on the patch panel to your switch, router, or patch panels, maintaining organized port labeling for easy identification.
• Test and label: After termination, test each link for continuity and performance, labeling ports for future maintenance and troubleshooting.
• Manage and document: Use cable ties and labeling to keep cables neatly arranged, and update your network documentation to reflect the new patch panel layout.

Frequently asked questions

• Q: What network speed can this patch panel support? A: It is designed for Cat6a and supports up to 10 Gbps per port, making it suitable for high‑speed data transfers and modern Ethernet applications.
• Q: Is this patch panel shielded? A: Yes. It uses Shielded Twisted Pair (STP) construction to minimize EMI and crosstalk in challenging environments.
• Q: How many ports does it have? A: It features 24 shielded RJ45 ports, arranged for high‑density deployments.
• Q: What is the form factor? A: The patch panel is a 1U, 19‑inch rack‑mountable unit designed for space‑efficient rack installations.
• Q: Is this product compliant with the Trade Agreements Act? A: Yes, it is TAA compliant, suitable for government and enterprise buyers requiring TAA products.
