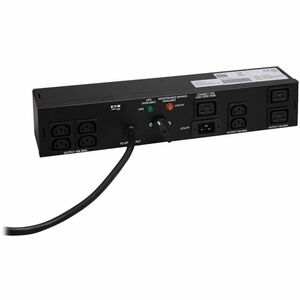

Eaton Tripp Lite Series Hot-Swap PDU – 3.2-3.8kW Single-Phase, 200-240V, 16A, 2U Rack-Mount

The Eaton Tripp Lite Series Hot-Swap PDU is engineered for high-availability data centers and mission-critical IT environments. Designed to enable live-replacements of standard UPS systems with no interruption to connected servers and networking gear, this single-phase hot-swap PDU delivers reliable, scalable power distribution for dense rack deployments. With dual input power cables supporting separate Utility and UPS power sources, a manual transfer switch with clear, lighted status indicators, and a rugged 2U rack-mount form factor, it’s built to minimize maintenance time while maximizing uptime. Whether you’re outfitting a new rack, upgrading existing infrastructure, or consolidating power distribution in a growing data center, this PDU helps you balance load, simplify power routing, and maintain service continuity during maintenance windows.

• Zero-downtime maintenance: The hot-swap design enables live replacement of UPS units or power components without interrupting power to connected servers and networking devices, helping you meet strict uptime requirements and avoid costly outages.
• Dual input power paths for redundancy: Built with dual input power cables to connect to separate Utility and UPS power sources, providing a resilient power path that reduces risk and improves availability in critical racks.
• Manual transfer switch with status indicators: A tactile transfer switch paired with illuminated status indicators simplifies power-path selection and monitoring during maintenance, outages, or routine testing, so you always know which source is active.
• High-capacity, versatile outlet configuration: Equipped with 6 C13 outlets and 2 C19 outlets fed from a single, robust 200-240V supply, supported by dual C20 input connectors for flexible power routing to diverse equipment.
• Rugged, compact 2U rack-mount design: 6 ft (1.83 m) cords and a compact 2U footprint make it ideal for standard IT racks, while delivering reliable power distribution for density-forward environments and ensuring easy integration into existing infrastructure.

Technical Details of Eaton Tripp Lite Series Hot-Swap PDU

• Power rating: 3.2–3.8 kW (dependent on load and configuration) for dependable delivery to high-density servers and networking gear.
• Input voltage and current: 200–240V, 16A nominal operating current, suitable for common data-center power circuits.
• Input connectors: dual C20 connectors to support two independent power paths from Utility and UPS sources.
• Outlet configuration: 6 x C13 outlets and 2 x C19 outlets for flexible device compatibility and balanced load distribution.
• Cord length: 6 ft (1.83 m) input cords to accommodate standard rack installations and convenient power routing.
• Mounting: 2U rack-mount form factor designed for standard IT racks, enabling efficient use of space in dense deployments.
• Key features: hot-swap capability for live maintenance, manual transfer switch with lighted indicators for clear power routing, and robust construction for data-center reliability.

How to Install Eaton Tripp Lite Series Hot-Swap PDU

• Prepare the rack and mounting area: Ensure there is adequate clearance and a stable mounting surface for a 2U device in a standard IT rack. Verify rack rails and hardware are appropriate for the PDU’s dimensions.
• Mount the PDU in the rack: Secure the PDU into the rack’s 2U space using the supplied mounting hardware, ensuring a solid, vibration-free installation and accessible cord routing.
• Connect dual power paths: Attach the dual C20 input connectors to separate 200–240V power sources (one to utility, one to UPS or secondary source). Confirm power sources are properly rated for 16A and within the specified voltage range.
• Route and connect outlets: Plug your critical IT devices into the 6 C13 and 2 C19 outlets, distributing the load to prevent any single branch from exceeding its rating. Use cable management to keep cords organized and reduce strain.
• Configure and test the transfer switch: Use the manual transfer switch to route loads between the two power sources as needed. Power up the equipment and verify that the status indicators reflect the active source, and perform a controlled transfer test to confirm uninterrupted operation during source switching.

Frequently asked questions

• Q: What is the purpose of a hot-swap PDU?

  A: A hot-swap PDU allows live replacement or maintenance of the connected UPS or power components without shutting down the connected servers and networking equipment, helping maintain continuous availability in data centers.

• Q: How many outlets does this PDU provide and what types are they?

  A: It provides 6 C13 outlets and 2 C19 outlets, suitable for a mix of standard server and network devices, all fed from a 200–240V power path.

• Q: What are the input requirements?

  A: Dual 200–240V input paths via two C20 connectors, designed for 16A circuits, enabling separate Utility and UPS power sources for redundancy.

• Q: Is remote management supported?

  A: The specification highlights a manual transfer switch with lighted status indicators for local visibility. There is no stated remote management interface in the provided details.
