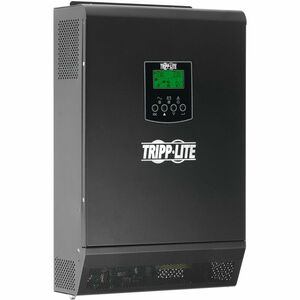

Eaton Tripp Lite Series 3200W 48VDC 230V Sine Wave Solar Inverter/Charger

The Eaton Tripp Lite Series 3200W Solar Inverter/Charger is a compact, all-in-one power solution built for reliability in solar backup, off-grid living, and remote installations. It combines a pure sine wave inverter, a built-in battery charger, and a capable MPPT solar charge controller into a single, streamlined unit. Designed to work with 48V battery banks and deliver 230V AC to your loads, this inverter/charger keeps critical devices running with clean, stable power even when the sun isn’t shining. For campers, tiny homes, cabins, and remote work sites, it provides a dependable backbone for energy independence, simplifying system design while maximizing energy harvest from your solar array.

• All-in-one power solution: 3200W continuous output with pure sine wave AC, ensuring smooth operation for sensitive electronics and modern appliances while delivering reliable backup power for essential loads.
• Integrated 90A MPPT solar charge controller: efficient energy harvesting from your solar array, fast battery recharging, and compatible charging profiles that support common 48V battery chemistries.
• Parallel operation capability: safely scale system capacity by adding additional inverter/chargers, enabling higher total output to meet growing power demands without complicated equipment.
• Hardwire input/output: straightforward integration with existing electrical panels and distributed loads through robust, field-proven hardwired connections designed for dependable performance in demanding environments.
• Designed for solar backup and off-grid reliability: ideal for remote installations, cabins, RVs, and off-grid living where a dependable, clean energy supply is essential to comfort, safety, and productivity.

Technical Details of Eaton Tripp Lite Series 3200W 48VDC 230V Solar Inverter/Charger

• Power rating: 3200W continuous output with 230V AC sine wave, suitable for a wide range of home, RV, and remote-site loads.
• DC input: 48V battery bank compatibility, enabling efficient energy storage and reliable start-up for heavy loads.
• AC output: 230V AC with a pure sine wave waveform, providing clean power that protects sensitive electronics and appliances.
• MPPT solar charger: 90A maximum charging current for efficient solar energy conversion and fast replenishment of your battery bank.
• Parallel operation: supports simultaneous operation with additional units to increase available power and system redundancy.
• Input/Output configuration: hardwired connections designed for secure and durable electrical strand integration with your distribution panel and loads.
• Protection and safety: built-in protections against overload, short circuit, and voltage irregularities to safeguard the inverter, battery bank, and connected devices.
• Application versatility: well-suited for solar backup, off-grid homes, cabins, remote sites, and mobile installations where dependable power is required.

How to install Eaton Tripp Lite Series 3200W 48VDC 230V Solar Inverter/Charger

• Plan your installation in a ventilated, dry location with adequate clearance for heat dissipation and service access. Ensure the mounting surface is sturdy and capable of supporting the weight of the unit.
• Mount the inverter/charger according to the manufacturer’s guidelines, securing it to a stable surface and protecting it from direct moisture and excessive temperature fluctuations.
• Connect the 48V DC battery bank to the inverter’s DC input terminals using appropriately sized cables and fuses or a circuit breaker as required by local electrical codes and the system’s design.
• Wire the AC output to your distribution panel or designated loads using the hardwire connections. Ensure a proper AC disconnect is installed if required by code, and verify voltage compatibility with local standards (230V in many regions).
• Connect the solar array to the MPPT input, ensuring appropriate fusing, combiner boxes, and disconnects are in place. Follow best practices for PV wiring, including proper insulation, strain relief, and protection from the elements.
• Configure MPPT settings and system parameters as needed. If you’re stacking multiple units in parallel, follow the manufacturer’s guidance for parallel wiring, synchronization, and load sharing to achieve balanced performance.
• Power up and perform a basic self-test. Check the status indicators and verify that the inverter provides 230V AC output under load and that the MPPT controller begins charging the battery bank when solar input is available.
• Regular maintenance and inspections: verify connections for tightness, inspect cables for wear, and monitor system performance to ensure ongoing reliability and safety.

Frequently asked questions

• What does a 3200W inverter provide?
  It delivers up to 3200 watts of continuous AC power from a 48V DC battery bank, converting stored energy into 230V AC with a pure sine wave suitable for sensitive electronics and household appliances.
• Why is the MPPT solar charger important?
  The 90A MPPT controller optimizes solar energy capture by adjusting the electrical operating point of the PV array. This results in faster battery charging, higher system efficiency, and better performance in varying light conditions.
• Can I run multiple units in parallel?
  Yes. The inverter/charger supports parallel operation, allowing you to scale capacity and increase available power by adding additional units in a coordinated configuration.
• What about wiring and installation?
  The system is designed for hardwired input/output connections. Plan for a dedicated space in a protected area, use appropriately rated cables, and follow local electrical codes. If in doubt, consult a licensed electrician.
• What applications is this inverter/charger best suited for?
  Ideal for solar backup systems, off-grid cabins, tiny homes, remote work sites, RVs, and any installation requiring reliable, clean power from a 48V battery bank with 230V AC loads.
