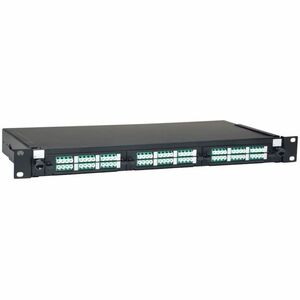

Eaton Tripp Lite Series 36-Port Fiber Patch Panel Enclosure, 1U Rack-Mount (LC/LC)

Tripp Lite by EatonSKU: 3814895

Price:
Sale price$411.84

Description

Eaton Tripp Lite Series 36-Port Fiber Patch Panel Enclosure, 1U Rack-Mount (LC/LC)

The Eaton Tripp Lite Series 36-Port Fiber Patch Panel Enclosure in a compact 1U rack-mount form factor delivers dense, organized fiber connectivity for data centers, server rooms, and modern workspaces. Engineered to keep high-density fiber networks tidy, this LC/LC patch panel enclosure provides reliable performance, scalable fibre management, and easy access for installation, maintenance, and future upgrades. Designed to maximize airflow and minimize signal loss, it enables clean patching, fast deployment, and effortless ongoing management, making it a favorite choice for IT professionals who demand both efficiency and reliability from their patching infrastructure.

  • 36 LC duplex ports in a single 1U footprint, enabling high-density fiber networking in a compact rack enclosure.
  • Durable 19" rack-mountable enclosure with straightforward front access for quick connections and easy cable routing.
  • Built-in cable management features to reduce bend radii, protect delicate fiber, and promote organized, router-friendly layouts across the patch panel.
  • Clear port labeling and color-coded adapters to simplify deployment, maintenance, and future upgrades with minimal downtime.
  • Versatile compatibility for LC/LC fiber links, ideal for data centers, server rooms, and modern home labs requiring scalable, tidy fiber patching solutions.

Technical Details of Eaton Tripp Lite Series 36-Port Fiber Patch Panel Enclosure, 1U Rack-Mount (LC/LC)

  • Port configuration: 36-port LC duplex fiber patch panel (LC/LC).
  • Mounting style: 1U height, 19" rack-compatible enclosure for standard server racks.
  • Port type: LC duplex connectors suitable for high-density fiber terminations and patching.
  • Enclosure purpose: designed to organize and protect fiber connections while providing easy access for maintenance and re-patching.
  • Application: ideal for data centers, server rooms, and workspaces requiring orderly, scalable fiber infrastructure.

How to install Eaton Tripp Lite Series 36-Port Fiber Patch Panel Enclosure

  • Prepare your rack area: verify the rack is clean, stable, and capable of supporting the enclosure’s weight, and gather all required installation hardware (typically 19" rack screws and washers).
  • Mount the enclosure: align the patch panel with the rack rails and secure it to the rack using the appropriate screws. Ensure the unit is level and firmly fastened to support cabling and future adjustments.
  • Plan fiber routing: route incoming and outgoing fiber cables with attention to bend radius requirements. Use the enclosure’s integrated cable management guides or separators to keep cables orderly and separate high- and low-speed paths as needed.
  • Terminate and connect: connect LC duplex patch cables to the corresponding ports, following your network design and labeling scheme. Maintain consistent color coding and port labeling to simplify future maintenance and troubleshooting.
  • Label and test: clearly label each port and perform a continuity or optical test to verify correct connections. Document port mappings for reference, and inspect for any signs of stress or strain on the cables.
  • Finalize setup: close any access doors, secure latches or locks if included, and tidy the surrounding cabling to maximize airflow and reduce the risk of accidental disconnections during routine maintenance.

Frequently asked questions

  • Q: How many ports does this patch panel offer? A: It provides 36 LC duplex ports in a compact 1U, 19" rack-mountable enclosure, suitable for high-density fiber deployments.
  • Q: What mounting style is used? A: The unit is designed for standard 19" racks and occupies 1U of vertical space, enabling efficient use of rack real estate in data centers and server rooms.
  • Q: What connector type does this panel support? A: The enclosure supports LC duplex fiber connectors (LC/LC) for high-speed fiber terminations and patching.
  • Q: Is the enclosure suitable for home labs or small offices? A: Yes. Its 1U, high-density LC port layout makes it a practical solution for home labs, small office networks, and expansions in compact spaces while maintaining professional organization.
  • Q: Are there built-in cable management features? A: The design includes integrated cable management paths to help reduce bend radii, keep cables tidy, and support scalable, reliable fiber layouts.
  • Q: Do you need specialized tools to install this patch panel? A: Basic tools for rack mounting (e.g., screwdriver for rack screws) and standard fiber termination practices are recommended. Always follow your organization’s installation guidelines and the product’s documentation for best results.
