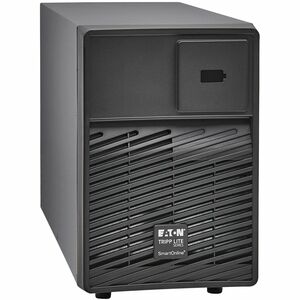

Eaton Tripp Lite Series 36V Extended Battery Module (EBM) for SU1000XLCD SmartOnline UPS Systems, Tower

Tripp Lite seriesSKU: 9040890

Price:
Sale price$642.08

Description

Eaton Tripp Lite Series 36V Extended Battery Module (EBM) for SU1000XLCD SmartOnline UPS Systems, Tower

Maximize uptime and protect your critical IT infrastructure with the Eaton Tripp Lite Series 36V Extended Battery Module (EBM) designed for SU1000XLCD SmartOnline UPS Systems. This 36-volt VRLA battery module delivers enhanced runtime for small to mid-size networks across education, healthcare, government, military, and enterprise environments. Built to withstand demanding conditions in tower deployments, the BP36V EBM seamlessly enhances backup power capabilities, enabling safer work continuity, smoother maintenance windows, and reduced risk of data loss during outages. Whether you’re outfitting classrooms, clinics, or data closets, this EBM provides a reliable, scalable solution to extend the life of your existing UPS investment.

  • Extended runtime for compatible UPS units: The BP36V EBM significantly increases available backup power, allowing essential systems to stay online longer during power interruptions, perform orderly shutdowns, and complete critical data writes without abrupt shutdowns. This is especially valuable in networked classrooms, healthcare devices, and government workstations that demand consistent availability.
  • Robust VRLA battery technology: Valve-regulated lead-acid chemistry delivers dependable performance with low maintenance, reduced venting risk, and a compact footprint. The VRLA design is optimized for controlled environments found in server rooms, IT closets, and tower installations, ensuring reliable operation with minimal odor and easy disposal at end of life.
  • Dedicated compatibility with SU1000XLCD SmartOnline UPS Systems: Engineered to fit the SU1000XLCD series, this EBM provides a precise electrical and mechanical match, safeguarding the UPS against improper connections and ensuring optimal charge/discharge behavior. The integration helps preserve UPS efficiency and longevity while delivering predictable runtime extension.
  • Sales-ready installation for tower configurations: The BP36V EBM is designed to be mounted alongside or inside compatible tower UPS units, enabling clean, space-efficient deployments in IT rooms, classrooms, clinics, and government facilities. The unit’s form factor and modular design simplify inventory management and future scalability as your backup needs grow.
  • Rapid deployment with minimal maintenance: The battery module is engineered for quick swaps and routine checks, reducing downtime during installation or replacement cycles. Once installed, it works in concert with the SU1000XLCD SmartOnline UPS to monitor health, temperature, and charge status, delivering proactive alerts that help you plan preventive maintenance and avoid unexpected outages.

Technical Details of Eaton Tripp Lite 36V Extended Battery Module (EBM) for SU1000XLCD

  • Battery type: VRLA (Valve-Regulated Lead-Acid)
  • Voltage: 36V
  • Fuel/source chemistry: Lead-acid, sealed
  • Form factor: Extended Battery Module (EBM) compatible with SU1000XLCD SmartOnline UPS Systems (Tower)
  • Compatibility: SU1000XLCD SmartOnline UPS Systems, Tower configurations
  • Purpose: Provides extended runtime and enhanced backup power for protected loads
  • Operating considerations: Designed for controlled indoor environments; ensure adequate airflow and temperature range within UPS specification
  • Lifecycle: Field-replaceable battery module designed for long service life and reliable cycling

how to install Eaton Tripp Lite 36V Extended Battery Module (EBM)

Installing the BP36V EBM is a straightforward process that minimizes downtime and ensures proper connection to your SU1000XLCD SmartOnline UPS System. Follow these steps to deploy the module securely in a tower configuration:

  1. Power down and unplug the UPS: Before handling any internal components, shut down all connected equipment and disconnect the UPS from the wall outlet to prevent any electrical hazards or data loss.
  2. Prepare the installation area: Move to a clean, dust-free space with adequate ventilation. Confirm there is enough clearance around the UPS to access the battery compartment and to allow for proper air flow during operation.
  3. Access the UPS battery bay: Remove the cabinet cover or access panel according to the SU1000XLCD user manual. If the UPS has a battery door or tray, carefully open it to reveal the existing battery connections.
  4. Connect the EBM to the UPS: Align the BP36V EBM with the designated battery connectors and slide it into place. Attach any locking or latching mechanisms as specified by the device manual, ensuring a secure fit and proper electrical contact. Verify that the EBM is seated firmly and that all connectors are fully engaged.
  5. Secure and test: Replace the UPS battery tray or panel, then reconnect power to the UPS. Power on the unit and perform a basic health check using the UPS interface to confirm the EBM reports correctly (voltage, runtime, and battery status). If your system supports a self-test feature, initiate a self-test to verify extended runtime operation under simulated conditions.
  6. Monitor and document: Record the installation date, serial numbers, and any health indicators shown in the UPS management interface. Establish a maintenance schedule to inspect the EBM periodically, ensuring temperature, charge levels, and overall performance meet expected thresholds.

Frequently asked questions

  • Q: What does the 36V Extended Battery Module do for my SU1000XLCD UPS?
  • A: The BP36V EBM adds capacity to your UPS’s backup power, extending the runtime available to protect critical devices during outages. This helps you complete safe shutdowns, maintain essential services, and reduce data loss risk in small to mid-size networks.
  • Q: Is the EBM compatible with all SU1000XLCD models?
  • A: The EBM is designed specifically for SU1000XLCD SmartOnline UPS Systems in tower configurations. For non-SU1000XLCD models or different form factors, check compatibility before purchase.
  • Q: How should I maintain the EBM for long life?
  • A: Store and operate the EBM within the UPS manufacturer’s recommended temperature range, ensure adequate airflow around the unit, and perform periodic health checks through the UPS management interface. Replace the module when health indicators show reduced capacity or elevated impedance to maintain reliable backup power.
  • Q: Can I replace the EBM myself, or do I need professional support?
  • A: In many cases, field replacement can be performed by trained personnel following the manufacturer’s guidelines. If you’re uncertain, consult your IT team or a certified service provider to avoid damage or improper installation.
  • Q: Does using an EBM affect UPS warranty?
  • A: Adding or replacing an EBM does not typically void the UPS warranty when performed by authorized personnel and according to the manufacturer’s instructions. Always verify warranty terms with the supplier and keep documentation of installation.
