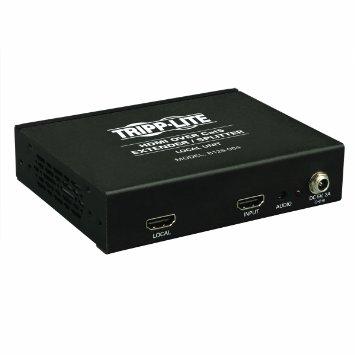

Eaton Tripp Lite Series 4-Port HDMI over Cat5/6 Extender/Splitter, Box-Style Transmitter for Video/Audio, Up to 150 ft. (45 m), TAA

The Eaton Tripp Lite Series 4-Port HDMI over Cat5/6 Extender/Splitter is the ultimate solution for extending HDMI signals over long distances while ensuring exceptional audio and video quality. Perfect for applications such as digital signage, presentations, trade shows, or retail displays, this device allows seamless connection of multiple monitors to a single HDMI source. With a robust set of features and straightforward installation, the Tripp Lite Extender/Splitter is tailored to meet the demands of both professionals and businesses.

• Multiple Display Options: The B126-004 enables you to split one HDMI audio/video signal into five outputs—one local and four remote. This is perfect for setups requiring multiple displays from a single source.
• Extended Transmission Range: This extender can transmit signals up to 150 feet for 1080p (60 Hz) and even up to 200 feet for 1080i (60 Hz), ensuring that your video remains crystal clear over long distances.
• Supports Various Resolutions: The B126-004 can handle a variety of video formats, including 3D signals and multiple resolutions, making it a versatile choice for a wide range of applications.
• High-Quality Audio Output: Not only does the B126-004 provide stunning video quality, but it also supports rich stereo and 7.1-channel surround sound audio, ensuring an immersive viewing experience.
• Easy Installation: Featuring a plug-and-play design, this device requires no additional software or drivers. It comes with all necessary hardware for mounting on walls, racks, or poles.

Technical Details of the Product

• Model: B126-004
• Input Ports: 1 HDMI
• Output Ports: 4 HDMI (1 local and 3 remote)
• Maximum Distance: 150 ft (45 m) for 1080p at 60 Hz
• Supported Resolutions: 1080p, 1080i, 3D
• Audio Compatibility: Stereo and 7.1-channel surround sound
• Installation: Plug and Play
• Mounting Options: Wall, rack, or pole

How to Install

1. Connect the HDMI source to the input port of the B126-004 Extender/Splitter using an HDMI cable.
2. Utilize Cat5e/6 cabling to link the remote monitors to the output ports. For optimal performance, use 24 AWG solid-wire cabling.
3. Mount the device using the included hardware on a wall, rack, or pole as required.
4. Plug in the power adapter and ensure all connections are secure.
5. Power on the source and remote monitors to begin using the extender/splitter.

Frequently Asked Questions

• Can the B126-004 be used with all HDMI devices? Yes, the B126-004 is compatible with all HDMI video sources and works with any operating system.
• How many monitors can I connect using this device? You can daisy-chain up to three B126-004 units, allowing you to connect a total of 13 monitors—one local and twelve remote.
• What is the maximum distance I can extend the signal? The device can extend a 1080p signal up to 150 feet and a 1080i signal up to 200 feet when using the appropriate cabling.
• Do I need additional software to operate the device? No additional software or drivers are required; the device is plug-and-play for hassle-free installation.
• Is the audio quality affected when using the extender? No, the B126-004 maintains high-quality audio, supporting both stereo and 7.1-channel surround sound without degradation.
