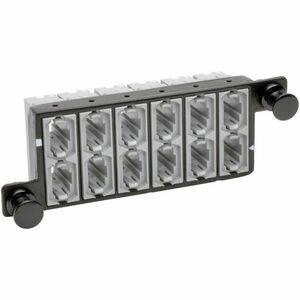

Eaton Tripp Lite Series 40 GB Pass-Through Cassette, (x12) 12-Fiber MTP/MPO ( Female)

The N482-12M12-X2 40 GB Pass-Through Cassette is a high-density fiber interconnect designed to optimize trunking and organization in modern data centers and enterprise networks. This cassette works in perfect harmony with Tripp Lite’s N482-01U or N482-02U Fiber Enclosure Panels, enabling up to twelve 12-fiber MTP/MPO connections in a compact, modular format. Built for reliability and scalability, it simplifies deployment, reduces cable clutter, and supports future growth as fiber standards evolve. With its precise alignment, durable construction, and streamlined installation, the N482-12M12-X2 is an essential component for high-performance 40 Gb networks and beyond. Whether you’re building a new fiber backbone or upgrading an existing enclosure, this pass-through cassette delivers consistent performance, easy maintenance, and a clean, accessible path for fiber connectivity.

• High-density 12-fiber MTP/MPO pass-through: Houses twelve 12-fiber channels in a compact cassette, maximizing port count per rack unit and supporting scalable data-center growth.
• Seamless enclosure compatibility: Specifically designed to install with N482-01U and N482-02U Fiber Enclosure Panels, enabling a cohesive and tidy fiber management system.
• Modular design for easy serviceability: The cassette can be swapped or upgraded without disturbing adjacent modules, reducing downtime during maintenance or migrations.
• 40 Gbps pass-through capability: Facilitates high-speed 40 Gigabit Ethernet and related fiber standards with minimal insertion loss and reliable signal integrity.
• Durable, precise construction: Built for data-center environments with robust ferrule alignment and a sturdy housing that withstands routine handling and cable movements.

Technical Details of Eaton Tripp Lite Series 40 GB Pass-Through Cassette, (x12) 12-Fiber MTP/MPO ( Female)

• Product type: Pass-through cassette for high-density fiber interconnects
• Fiber type and connectors: 12-fiber MTP/MPO, female
• Ports: 12 fiber channels in a single cassette
• Compatibility: Designed for use with N482-01U and N482-02U Fiber Enclosure Panels
• Data rate support: 40 Gbps pass-through capability for 40G Ethernet and related standards
• Construction: Durable housing with precision-aligned ferrules for low insertion loss and reliable performance
• Deployment: Ideal for high-density data-center racks and scalable fiber infrastructures

how to install Eaton Tripp Lite Series 40 GB Pass-Through Cassette

To install the N482-12M12-X2 cassette, start by verifying that your enclosure panel (N482-01U or N482-02U) is ready to receive a new module. Ensure proper grounding, and if necessary, power down the chassis according to your data-center protocol. Remove any adjacent modules only if required to create space for the new cassette, then inspect the internal guides and retention mechanism on the enclosure. Align the cassette with the enclosure’s guide rails and slide it in until it seats firmly and engages the retention clip. Connect your 12-fiber MTP/MPO trunk cables to the female connectors on the cassette, taking care to maintain correct polarity and consistent labeling across all channels. Route the fibers through the enclosure’s cable management system to preserve bend radii and avoid excessive tension. After termination, perform a basic continuity test to verify connections and inspect for any misalignments or damage. Replace any covers or panels to protect terminations and maintain environmental integrity inside the enclosure. For routine maintenance or future expansion, the cassette can be removed and replaced with minimal disruption to adjacent channels, keeping the rest of the network operational.

Frequently asked questions

• Q: What is a 40 GB Pass-Through Cassette? A: It is a modular fiber interconnect module that provides twelve 12-fiber MTP/MPO connections in a single cassette, designed to support high-density deployments and scalable fiber networks.
• Q: Is this cassette compatible with N482-01U and N482-02U enclosure panels? A: Yes. It is engineered to install within these Tripp Lite enclosure panels to create an organized, cohesive fiber management solution.
• Q: How many fibers does each cassette support? A: Each cassette supports 12 fibers via 12-fiber MTP/MPO connections (female).
• Q: What data rate does it support? A: It supports 40 Gbps pass-through, aligning with 40G Ethernet and related optical standards.
• Q: How do I install or replace the cassette? A: Follow the installation steps outlined above and ensure proper handling of fiber terms, labeling, and bend-radius guidelines to preserve performance and reliability.
