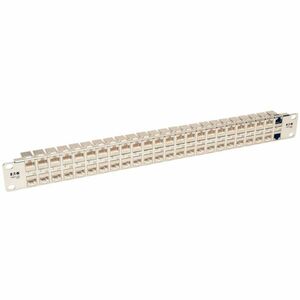

Eaton Tripp Lite Series 48-Port 1U STP Shielded Cat6a Feedthrough Patch Panel – RJ45 Ethernet, TAA

Designed for high-density network deployments, this Eaton Tripp Lite 48-Port 1U STP Shielded Cat6a Feedthrough Patch Panel delivers reliable, high-speed Ethernet connectivity in data centers, telecom rooms, and enterprise racks. Built to meet or exceed Cat6a specifications, it provides robust shielding, future-proof performance, and streamlined management for 10 Gbps networks. With 48 shielded RJ45 connections and a compact 1U form factor, it enables scalable growth while supporting industry-standard wiring schemes such as USOC, T568A and T568B. This patch panel is engineered for durability, compliance, and ease of installation in demanding environments, making it an economical cornerstone for professional networking setups.

• 48-port, 1U rack-mount design delivering high-density Cat6a connectivity in a compact footprint for server rooms and data centers.
• STP shielded construction reduces EMI and crosstalk, helping preserve signal integrity for reliable 10 Gbps Ethernet links.
• Supports multiple wiring schemes—USOC, T568A and T568B—providing flexible termination options that align with industry standards.
• 10 Gbps capable performance ensures fast data transfer for bandwidth-intensive applications, backups, virtualization, and high-speed interconnects.
• Feedthrough patch panel design simplifies cable routing and termination, enabling clean organization and easy migration as your network grows, while remaining compliant with TAA.

Technical Details of Eaton Tripp Lite Series 48-Port 1U Rack-Mount STP Shielded Cat6a Feedthrough Patch Panel, RJ45 Ethernet, TAA

• Model: N254-048-SH-6A
• Ports: 48 shielded RJ45 Cat6a feedthrough ports
• Form factor: 1U rack-mount, standard 19-inch enclosure
• Wiring standards: USOC, T568A and T568B compatibility
• Cat6a performance: Shielded Cat6a (STP) design supports 10 Gbps Ethernet data transfers
• Shielding: STP (Shielded Twisted Pair) construction to minimize EMI and crosstalk
• Patch panel type: Feedthrough panel enabling clean, through-panel terminations
• Compliance: TAA compliant for government and other procurement requirements
• Brand and series: Eaton Tripp Lite Series, engineered for durability and reliability in enterprise installations
• Termination method: RJ45 terminations on both sides for direct patching and streamlined cable management

how to install Eaton Tripp Lite Series 48-Port 1U Rack-Mount STP Shielded Cat6a Feedthrough Patch Panel

• Preparation: Verify your rack is a standard 19-inch, 1U space and that you have the proper mounting hardware (rack screws, cage nuts, and a screwdriver). Plan cable routes to minimize bending and interference with hot-swappable components.
• Mounting the panel: Align the patch panel with the rack’s vertical rails and secure it using the appropriate screws. Ensure the panel is level and firmly fastened to prevent any movement during cable routing.
• Cable routing and management: Run shielded Cat6a cables from the access layer to the patch panel, keeping runs organized with cable ties or management bars. Maintain a minimum bend radius to protect conductor integrity and shielding.
• Termination approach: For a feedthrough design, terminate the inbound and outbound Cat6a cables as dictated by your chosen wiring scheme (USOC, T568A or T568B). Follow best practices to preserve shielding continuity and minimize gaps in shielding along the through-paths.
• Labeling and documentation: Clearly label each port on the panel and maintain an up-to-date wiring diagram. Proper labeling reduces maintenance time and helps technicians quickly identify connections during moves, adds, and changes.
• Testing and validation: After termination, use a qualified Cat6a tester to verify pin continuity, pair integrity, and overall link quality. Confirm that the panel supports 10 Gbps performance on selected ports and that shielding is effectively minimizing EMI.
• Final touches: Secure patch cables and route them to their destinations with appropriate slack. Ensure power and grounding requirements are observed in your rack to maximize shielding effectiveness and network stability.

Frequently asked questions

• Q: What is the primary use of a 48-port 1U feedthrough patch panel? A: This patch panel consolidates and organizes a large number of Ethernet connections in a compact 1U footprint. It serves as a central distribution point in data centers, server rooms, and enterprise networks, enabling clean cabling, scalable growth, and efficient patching for high-density environments.
• Q: Is the panel shielded, and why does that matter? A: Yes. The STP shielded (Shielded Twisted Pair) design minimizes electromagnetic interference and crosstalk, which helps preserve signal integrity for high-speed Cat6a connections and reliable 10 Gbps data transmission in electrically noisy data centers or areas with dense cabling.
• Q: What speeds can this patch panel support? A: The Cat6a specifications and shielded construction support up to 10 Gbps Ethernet data transfer rates when paired with suitable Cat6a-compliant cabling and proper terminations, making it suitable for modern data centers and bandwidth-intensive applications.
• Q: Which wiring standards are supported? A: The panel is designed to be compatible with USOC, T568A and T568B wiring schemes. This flexibility helps meet diverse standards across facilities and simplifies migrations or re-wiring if needed.
• Q: Is this patch panel compliant with government procurement requirements? A: Yes. The product is TAA compliant, which makes it eligible for purchase under various government and public sector procurement programs that require Trade Agreements Act compliance.
• Q: What installation considerations maximize performance? A: To maximize performance, maintain proper shielding continuity, route shielded cables away from power lines to reduce EMI, keep runs short and direct where possible, and ensure correct termination per the chosen wiring scheme. Regular testing after installation verifies that the network meets 10 Gbps capabilities.
