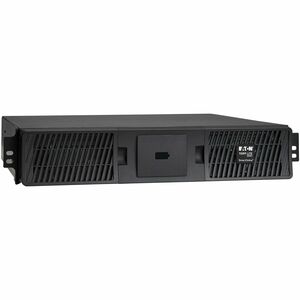

Eaton 48V Extended Battery Module (EBM) for SmartOnline UPS Systems

Boost uptime for critical IT infrastructure with the Eaton Tripp Lite Series 48V Extended Battery Module (EBM) designed for SmartOnline UPS systems. This 2U rack/tower battery module delivers extended runtime to support education, healthcare, military, government, and other IT environments that require resilient power protection in small to mid-size networks. The BP48RT VRLA battery pack is engineered for dependable performance, simple maintenance, and seamless integration with compatible UPS platforms, enabling organizations to keep essential applications running during outages and to perform orderly shutdowns to safeguard data integrity. With its robust design and proven reliability, the BP48RT EBM helps IT teams reduce downtime, safeguard critical data, and extend the life of existing UPS investments.

• Extended runtime for critical workloads: When the power grid falters, the BP48RT EBM provides additional backup time, allowing servers, storage, and networking equipment to stay online longer or to shut down gracefully, reducing the risk of data loss and service disruption.
• VRLA 48V battery technology (BP48RT): Valve-Regulated Lead-Acid chemistry delivers a sealed, low-maintenance solution with reliable performance across a range of operating environments, making it ideal for stacked workloads and mission-critical applications.
• 2U rack/tower form factor: Flexible installation options fit neatly into standard 2U rack spaces or stand upright as a tower, simplifying deployment in data centers, classrooms, labs, and IT closets without sacrificing space or airflow.
• SmartOnline compatibility: Specifically designed to integrate with Eaton Tripp Lite SmartOnline UPS systems, enabling centralized monitoring, synchronized shutdowns, and streamlined management through the UPS interface and management software.
• Easy installation and scalable upgrades: Quick-connect battery modules and a modular approach allow seamless expansion as your IT footprint grows, minimizing downtime and maximizing uptime without replacing existing UPS infrastructure.

Technical Details of Eaton Tripp Lite Series 48V Extended Battery Module (EBM) for SmartOnline UPS Systems

• Battery type: VRLA (Valve-Regulated Lead-Acid)
• Voltage: 48V
• Model/Part: BP48RT
• Form factor: 2U rack/tower
• Compatibility: SmartOnline UPS Systems
• Function: Provides extended runtime to support orderly shutdowns and continued operation during power interruptions
• Installation: Designed for mounting in compatible UPS chassis or rack environments with standard 2U clearance

How to install Eaton Tripp Lite Series 48V Extended Battery Module (EBM)

Installing the BP48RT EBM is a straightforward process designed to minimize downtime and maximize compatibility with existing SmartOnline UPS configurations. Follow these general steps to ensure a safe and effective installation:

• Step 1: Confirm compatibility with your specific SmartOnline UPS model and verify that the BP48RT EBM is approved for use with your system. Review the UPS documentation or consult with your IT supplier if you are unsure.
• Step 2: Power down the UPS according to the manufacturer’s guidelines and, if possible, detach the UPS from any connected equipment to prevent accidental reboot or data loss during service.
• Step 3: Access the battery bay or rear chassis area of the UPS where the approved EBM slots in. Remove any protective screws or covers as instructed in the user manual.
• Step 4: Align the BP48RT with the mounting rails or slots and slide the module into place. Secure it using the provided fasteners or latches to ensure stable operation in both rack and tower configurations.
• Step 5: Connect any required electrical or data interfaces between the EBM and the UPS, ensuring all connections are snug and properly seated. If the UPS supports hot-swapping, follow the recommended procedure; otherwise, complete the installation with the unit powered down.
• Step 6: Reassemble the chassis, reattach any cables, and power the UPS back on. Allow the battery to initialize and perform a self-test via the UPS interface or management software to confirm proper operation and battery health.
• Step 7: Verify runtime estimates and battery status in the UPS management console. If needed, schedule a battery test to confirm performance over time and establish maintenance intervals aligned to your organization’s risk tolerance.

Frequently asked questions

• Q: What is the BP48RT EBM? A: The BP48RT is a 48V VRLA extended runtime battery module designed for use with SmartOnline UPS systems to increase backup time for critical devices and workloads.
• Q: What does a 2U rack/tower form factor mean? A: It indicates the physical size and mounting option of the EBM, allowing installation in standard 2U rack spaces or standing as a tower, depending on your data center layout and equipment configuration.
• Q: Is the BP48RT compatible with all SmartOnline UPS models? A: The EBM is built to integrate with compatible SmartOnline UPS units; always check your specific model’s compatibility list or consult the product documentation for confirmation.
• Q: How does the EBM affect uptime? A: By providing additional battery capacity, the EBM extends runtime during power interruptions, enabling safer shutdowns, continued operation of essential services, and reduced risk of data loss.
• Q: How do I monitor the EBM’s health after installation? A: Use the UPS management software or built-in UPS interface to monitor battery voltage, runtime estimates, and health/status indicators; perform periodic self-tests as recommended by the manufacturer.
