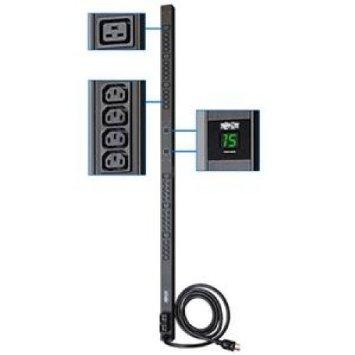

Eaton Tripp Lite Series 5.5kW Single-Phase 208/230V Basic PDU, 38 Outlets (32 C13 and 6 C19), NEMA L6-30P Input, 10 ft. Cord, 0U Vertical

The Eaton Tripp Lite Series 5.5kW Single-Phase 208/230V Basic PDU is purpose-built for IT managers who demand reliable, straightforward power distribution for dense server racks, networking gear, and critical infrastructure. This 0U vertical PDU packs a robust 5.5 kW capacity into a compact footprint, delivering scalable power distribution without the complexity of monitoring or remote management. With a total of 38 outlets—32 C13 and 6 C19—and a NEMA L6-30P input, it’s designed to support high-density deployments in data centers, edge environments, and server rooms. The 10-foot (3.05 m) power cord provides flexible placement, while the 0U vertical design preserves valuable rack space for cabling and airflow. Built for reliability in demanding environments, this basic PDU emphasizes rugged construction and straightforward operation, helping IT teams keep critical equipment powered and accessible when it matters most.

• Space-saving 0U vertical form factor: A compact, rack-friendly design that slides into standard 19" racks without occupying rack depth, freeing valuable space for servers, switches, and storage devices while minimizing cable clutter.
• High-capacity power distribution: 5.5 kW total capacity supports multi-device deployments, delivering reliable AC distribution to a mix of servers, storage, and network gear with headroom for growth across devices in a single rack or small rack cluster.
• 38 outlets for maximum device coverage: Includes 32 IEC C13 outlets and 6 IEC C19 outlets, enabling flexible power provisioning for a variety of equipment—ranging from blade servers to high-performance networking hardware—without needing multiple PDUs.
• NEMA L6-30P input for robust power delivery: A locking L6-30P input connection provides a secure, vibration-resistant power source suitable for 208/230V data center environments, reducing accidental unplugging and improving reliability.
• Long cord and simple setup: A 10 ft (3.05 m) power cord offers ample reach for most racks and rooms, simplifying installation and reducing the need for additional extension cords while keeping cables organized and managed.

Technical Details of Eaton Tripp Lite Series 5.5kW Single-Phase 208/230V Basic PDU

• Total power rating: 5.5 kW capacity, suitable for powering multiple servers, storage arrays, and networking devices in a single rack or small rack environment.
• Outlets: 38 total outlets, consisting of 32 IEC C13 sockets and 6 IEC C19 sockets to accommodate a broad range of equipment with common enterprise power connectors.
• Input configuration: NEMA L6-30P locking input plug, designed for secure connections to 208/230V power sources.
• Cord length: 10 ft (3.05 m) power cord, providing flexible placement within a typical data center or equipment room.
• Form factor: 0U vertical rack-mountable design, optimized for space efficiency in dense racks and behind equipment cabinets.
• Voltage and phase: Single-phase operation at 208/230V, aligning with modern data center power distribution standards.
• Intended use: Basic PDU without built-in monitoring or remote management features, ideal for IT teams seeking a straightforward, cost-effective distribution solution.

How to Install Eaton Tripp Lite Series 5.5kW Single-Phase 208/230V Basic PDU

• Ensure the rack area is clean and accessible, with adequate clearance for ventilation and cable management. Verify that the rack is rated for 0U vertical PDUs and that the space can accommodate a 10 ft cord reach.
• Power down connected equipment if possible, and plan outlet distribution to balance load across the available C13 and C19 sockets to prevent overloading any single circuit.
• Mount the PDU into the rack rails using the included or compatible vertical mounting hardware. Align the device securely so it remains stable during power cycling and maintenance.
• Connect the 10 ft NEMA L6-30P input cord into a suitable 208/230V power source. Ensure the input receptacle is properly rated for 30A and that the connection is firmly seated to prevent arcing or loosening under load.
• Distribute power by connecting servers, switches, and storage devices to the appropriate C13 and C19 outlets. Group critical equipment on separate outlets or zones to facilitate simple load management and ease future expansion.
• Power on the PDU and the connected devices. Check for immediate signs of electrical stress, unusual warmth, or tripped breakers. Verify that all critical devices reach full operating status and monitor for any outlet-specific issues during initial boot.
• Document outlet assignments and keep a rack map for future changes. Regularly review power consumption and ensure you do not exceed the PDU’s 5.5 kW capacity, adjusting load distribution as rack density evolves.

Frequently asked questions

• What is the primary advantage of the 0U vertical design? It preserves valuable rack space while delivering a full 38-outlet distribution in a compact footprint, helping maximize airflow and simplify cable management in dense server environments.
• What devices can be powered with this PDU? The 32 C13 and 6 C19 outlets are suitable for a wide range of IT equipment, including servers, storage arrays, switches, and other networking hardware typically used in data centers and IT closets.
• Is this a monitored or managed PDU? No. This is a Basic PDU focused on straightforward power distribution without built-in monitoring or remote management capabilities, making it an economical choice for standard deployments.
• What voltage and input plug does it use? The PDU operates at 208/230V single-phase and uses a locking NEMA L6-30P input plug for a secure connection to compatible power sources.
• What should I consider for load planning? With a 5.5 kW total capacity, plan to distribute load across outlets to avoid approaching the upper limit. Balance power across devices, and account for startup surges of servers and storage devices when sizing circuits.
