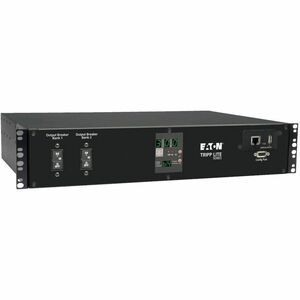

Eaton Tripp Lite Series 5.8kW Single-Phase Switched Automatic Transfer Switch PDU

Experience reliable power distribution for critical IT environments with the Eaton Tripp Lite Series 5.8kW Single-Phase Switched Automatic Transfer Switch PDU. Built for uptime, this compact 2U rack-mount PDU combines switched automatic transfer switching with strategic outlet configuration to protect servers, networking gear, and storage devices from power disturbances. Designed for data centers, server rooms, and edge deployments, it ensures seamless power continuity by automatically switching loads between redundant inputs, delivering clean, organized power to essential equipment while optimizing facility energy use.

• Powerful 5.8 kW capacity in a compact 2U enclosure, ideal for dense IT racks and space-constrained environments
• Two 200-240V L6-30P inputs provide redundant power sources for greater uptime and operational resilience
• versatile outlet configuration: 16 x C13, 2 x C19, and 1 x L6-30R to accommodate a mix of servers, storage, and network gear
• 2U rack-mountable design with standard 19" rack compatibility, streamlined installation, and easy integration into existing infrastructure
• TAA-compliant and backed by a 2-year limited warranty for enterprise and government applications

Techncial Details of Eaton Tripp Lite Series 5.8kw Single-phase Switched Automatic Transfer Switch Pd

• Power rating: 5.8 kW
• Input configuration: Two 200-240V L6-30P inputs
• Outlet configuration: 16 x C13 outlets, 2 x C19 outlets, and 1 x L6-30R outlet
• Form factor: 2U rack-mountable PDU
• Compliance and warranty: TAA-compliant; 2-year limited warranty

how to install Eaton Tripp Lite Series 5.8kW Single-phase Switched Automatic Transfer Switch Pd

• Prepare a clean, ventilated 19" equipment rack space. Ensure the rack has adequate room for airflow and cable management, and verify load capacity for the 2U PDU.
• Mount the PDU into the rack rails, aligning the chassis with existing equipment standards. Securely fasten using the supplied hardware to prevent movement during operation.
• Connect the two 200-240V L6-30P input cords to dedicated power sources or circuits that meet your facility’s electrical requirements. Ensure both inputs are properly seated and secured.
• Route power and data cables with care, separating high-current power cords from network cables to minimize interference. Use cable ties or management channels to maintain neat, safe cabling.
• Power on the PDU and verify the switched automatic transfer mode. Test the transfer capability by simulating a power disruption on one input and observing the load transfer to the alternate input. Confirm each outlet’s readiness by testing connected devices for continuous power delivery.

Frequently asked questions

• What is the primary purpose of this PDU? It provides switched automatic transfer switching for critical loads, delivering reliable, continuous power to connected devices while allowing for flexible input redundancy and organized outlet distribution.
• What devices can be plugged into the outlets? The 16 x C13 outlets, 2 x C19 outlets, and 1 x L6-30R receptacle support a wide range of servers, storage, and network gear commonly used in data centers and edge deployments.
• Is this PDU suitable for rack-mount setups? Yes. The unit is a 2U, 19" rack-mountable PDU designed to integrate seamlessly into standard IT racks.
• Does it require maintenance beyond routine checks? Routine inspections of input connections, load distribution, and battery or power supply status are recommended. The PDU carries a 2-year limited warranty and is TAA-compliant for government and enterprise use.
• How does the automatic transfer switch work? The ATS monitors input power quality and automatically transfers loads to a healthy input if a fault, outage, or unacceptable voltage is detected, helping maintain uptime for critical equipment.
