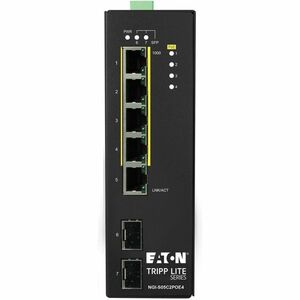

Eaton Tripp Lite Series 5-Port Lite Managed Industrial Gigabit Ethernet Switch

Elevate your industrial network with compact, rugged reliability. The Eaton Tripp Lite Series 5-Port Lite Managed Industrial Gigabit Ethernet Switch is purpose-built for harsh environments where uptime and performance matter. This 5-port switch delivers true Gigabit speeds on every port, with PoE+ up to 30W available to power essential devices directly from the network. Designed for DIN-rail mounting, wide operating temperatures, and rugged construction, it’s ideal for factory floors, automation cabinets, surveillance ecosystems, and edge computing deployments where space is at a premium and resilience is non-negotiable. Whether you’re deploying IP cameras, wireless access points, or IP sensors, this switch offers the right blend of performance, reliability, and ease of use to keep your industrial network running smoothly around the clock.

• Five auto-negotiating Gigabit ports support 10/100/1000 Mbps connectivity, ensuring maximum data transfer speed across all devices on your LAN. Each RJ-45 port intelligently negotiates with connected devices, delivering stable performance in mixed networks and allowing seamless integration of legacy and modern equipment.
• PoE+ support up to 30W per port enables you to power compatible devices directly through the switch. This reduces cabling clutter and simplifies deployment for power-hungry devices such as IP cameras, IP phones, and wireless access points in industrial settings, all without adding separate power injectors on the factory floor.
• 2 GbE SFP slots provide flexible uplink options for fiber or copper transceivers, allowing you to extend reach, segment networks, or create redundant paths without sacrificing performance. SFP uplinks are ideal for long-distance connections between edge devices and central switches or for isolating critical segments in a busy plant.
• Industrial-grade durability and temperature tolerance with a wide operating range (-10°C to 60°C) ensures reliable operation in factory environments where temperatures can fluctuate and equipment is subjected to dust, vibration, and other harsh conditions. This rugged design helps minimize maintenance and downtime in demanding applications.
• DIN-rail mounting and TAA compliance provide easy integration into standard industrial enclosures and procurement through government channels. The compact, enclosure-friendly design saves space in control panels while meeting stringent sourcing requirements, making it an excellent choice for automation and process control environments.

Technical Details of Eaton Tripp Lite Series 5-Port Lite Managed Industrial Gigabit Ethernet Switch

• Ports: 5 x RJ-45 10/100/1000 Mbps Ethernet ports plus 2 x GbE SFP optical/copper uplink slots for flexible network topology.
• PoE Capability: PoE+ support with up to 30W per port to power compatible devices directly over Ethernet cabling.
• Operating Temperature: -10°C to 60°C (-14°F to 140°F) for reliable performance in demanding environments.
• Mounting: DIN rail capable for easy installation in standard industrial enclosures and control panels.
• Compliance: TAA (Trade Agreements Act) compliant for government and enterprise procurement.
• Network Management: Lite Managed functionality to enable essential network control, traffic handling, and segmentation without the complexity of full SNMP-managed switches.
• Form Factor: Compact, rugged enclosure designed for harsh industrial environments where space and durability are critical.
• Application: Ideal for industrial automation, machine-to-machine (M2M) networks, IP surveillance, and edge-computing deployments requiring reliable power delivery and high-speed data transfer.

how to install Eaton Tripp Lite Series 5-Port Lite Managed Industrial Gigabit Ethernet Switch

• Plan your layout and ensure your DIN rail enclosure is rated for the environment. Verify that the mounting surface is clean and that there is adequate clearance for cable runs and cooling.
• Mount the switch securely to the DIN rail in your equipment cabinet. Use standard mounting brackets or clips designed for your enclosure to ensure a firm, vibration-resistant installation.
• Connect your edge devices to the five RJ-45 ports using Cat5e/6/6a Ethernet cables. When deploying PoE devices such as cameras or wireless access points, ensure each device is within the port’s PoE capability and that the total load does not exceed the switch’s PoE budget.
• Install optional GbE SFP modules if your network design requires fiber uplinks or long-distance copper links. Insert SFP modules according to the manufacturer’s directions and connect the corresponding fiber or copper cables to complete the uplink.
• Power on the device and access the Lite Managed interface through the available management port or console, following your organization’s standard configuration procedures. Configure essential features such as port assignment, VLANs, and basic QoS to optimize traffic for critical industrial devices while maintaining network security.
• Test connectivity across the network: verify link status on each port, confirm PoE device startup, and check uplink stability. Monitor for any thermal or performance anomalies and adjust placement, cooling, or cable routing as necessary to maintain reliability in a challenging environment.

Frequently asked questions

• Q: Does this switch support PoE+ on all ports?
• A: Yes. The switch provides PoE+ support, with up to 30W available per port for compatible devices, enabling you to power IP cameras, access points, and other PoE-enabled equipment directly from the switch.
• Q: How many uplink options are available?
• A: The switch includes 2 GbE SFP slots for flexible uplinks, allowing you to use fiber or copper transceivers to connect to core networks or other switches with high performance and extended reach.
• Q: What is the operating temperature range?
• A: It operates effectively between -10°C and 60°C, making it suitable for many industrial environments where temperatures can vary widely.
• Q: Is this switch DIN-rail mountable?
• A: Yes. It is designed for DIN-rail mounting, which simplifies installation in standard industrial control panels and enclosures.
• Q: Is the product compliant with government procurement standards?
• A: Yes. This model is TAA compliant, making it suitable for government and enterprise purchases that require adherence to trade and procurement requirements.
• Q: What kind of management features does it offer?
• A: It provides Lite Managed capabilities, offering essential network control, simple segmentation, and traffic handling suitable for most industrial applications without the complexity of full enterprise-grade switches.
