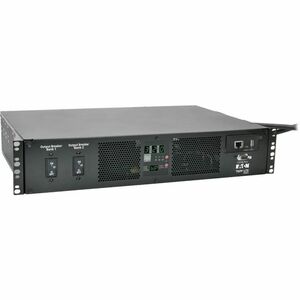

Eaton Tripp Lite Series 7.7kW Single-Phase Switched Automatic Transfer Switch PDU

The Eaton Tripp Lite Series 7.7kW Single-Phase Switched Automatic Transfer Switch PDU is designed to deliver reliable power management for data centers, server rooms, and high-density IT environments. This advanced power distribution unit combines automatic transfer switching with precise outlet control to maximize uptime, protect critical equipment, and simplify load management. Engineered for dense rack deployments, its 2U form factor fits cleanly into standard 19" racks while offering a flexible mix of outlets to power servers, networking gear, storage devices, and telecom equipment. With dual 200-240V IEC309 32A blue inputs, the PDU supports robust redundancy strategies and seamless integration with existing power infrastructure. The unit is TAA-compliant, making it a solid choice for government and enterprise procurement, with a design focused on reliability, ease of maintenance, and scalable power distribution for growing data center needs.

• Dual IEC309 32A blue inputs at 200-240V provide redundant power sources and automatic transfer switching to maintain uptime without manual intervention.
• Sixteen C13 outlets and two C19 outlets offer flexible, high-density power delivery for a wide range of devices, from blades and rack servers to switches and storage arrays.
• 2U rack-mount form factor fits standard 19" racks, enabling efficient use of space in data centers and edge deployments while delivering robust power protection.
• Switched PDU functionality enables outlet-level power management, remote reboot, and controlled maintenance cycles to reduce downtime and streamline IT operations.
• TAA-compliant design supports enterprise and government purchasing requirements, with reliable support and warranty coverage for mission-critical deployments.

Technical Details of Eaton Tripp Lite Series 7.7kW Single-Phase Switched Automatic Transfer Switch PDU

• Power rating: 7.7 kW single-phase with switched automatic transfer capability for reliable load transfer between two sources.
• Input configuration: Dual IEC309 blue inputs at 200-240V, 32A each, enabling robust dual-source redundancy.
• Output configuration: 16 x C13 outlets and 2 x C19 outlets for versatile equipment connections.
• Form factor and mounting: 2U rack-mount design for standard 19" racks, optimizing space in data centers and equipment rooms.
• Compliance: TAA-compliant for government and enterprise procurement; suitable for environments with regulatory requirements.
• Applications: Ideal for data centers, server rooms, telecommunications cabinets, and other high-availability IT deployments requiring managed power distribution and automatic transfer switching.

How to install Eaton Tripp Lite Series 7.7kW Single-Phase Switched Automatic Transfer Switch PDU

Installing this PDU involves careful attention to electrical safety, rack readiness, and proper wiring to ensure reliable performance. The following general steps are designed for qualified technicians who are familiar with electrical installations and local codes. Always refer to the official user manual for detailed instructions, clear wiring diagrams, and safety considerations before proceeding.

• Prepare the rack space: Verify that the installation location has adequate ventilation, a clean environment, and a compatible 19" rack with at least 2U of available height. Confirm room temperatures and clearance for service access.
• Mount the PDU: Slide the unit into the 2U rack space and secure it to the rack rails using the appropriate mounting hardware. Ensure the unit is level and firmly fastened to prevent vibration or movement during operation.
• Connect input sources: Attach the two IEC309 blue input cords to separate power sources that supply 200-240V with 32A each. Ensure each input circuit is rated to handle the full load and that protective breakers upstream are appropriately sized.
• Allocate outlets to devices: Plan outlet distribution for the 16 C13 outlets and 2 C19 outlets based on device power requirements, cable management, and airflow considerations. Use proper cable ties and route cables to avoid obstructing airflow or access to other equipment.
• Enable and configure transfer switching: Activate the automatic transfer switch functionality according to the product manual. Configure any load-shedding rules, monitoring thresholds, and notification settings. Perform a controlled switch test under light and full-load conditions to verify proper operation and alarm signaling.
• Verify safety and commissioning: Confirm that all connections are secure, electrical panels are closed, and there are no signs of overheating. Validate remote monitoring or management features if the unit provides them, and document the installation for future maintenance.

Frequently asked questions

• What is the primary function of this PDU?

  The PDU provides dual-source automatic transfer switching and distributes power to connected devices through a mix of C13 and C19 outlets, enabling reliable uptime and centralized power management for critical IT equipment.

• How many outlets does the PDU provide and what types are they?

  It delivers 16 C13 outlets and 2 C19 outlets, offering flexible power capacity for servers, storage, networking gear, and related devices in a rack environment.

• What do the two inputs mean for redundancy?

  Two IEC309 32A inputs allow you to connect separate power sources (such as utility feeds or generator circuits) so the PDU can automatically transfer loads if one source becomes unavailable, enhancing uptime.

• Is this PDU compatible with remote monitoring or management systems?

  The unit is designed for managed power distribution, with capabilities that typically support outlet-level control and status monitoring. Check the specific management options included with your model or firmware version for compatibility with your monitoring stack.

• Is the PDU suitable for government or enterprise procurement?

  Yes. The PDU is TAA-compliant, which meets procurement requirements for many government and enterprise programs, and it is built to support demanding data center environments.
