Description

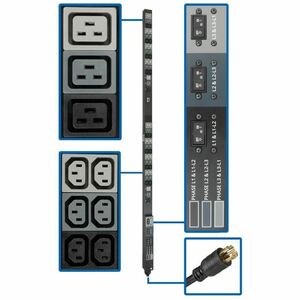

Eaton Tripp Lite Series 8.6kW 208/120V Three-Phase Basic PDU - 48 Outlets (36 C13, 6 C19, 6 5-15/20R), L21-30P Input, 6 ft. Cord, 70 in. 0U Rack
This Three-Phase 208/120V Basic PDU delivers reliable, network-grade power distribution for high-density equipment in small to mid-sized data centers, computer rooms, network closets, and sound/AV setups. Built for versatility and steady performance, it’s an ideal no-frills power distribution solution that keeps critical devices organized, powered, and protected. With a total of 48 outlets arranged to support a range of servers, network gear, and telecom equipment, this PDU from the Eaton Tripp Lite series provides dependable power without unnecessary complexity.
- Powerful yet simple distribution: 8.6 kW capacity with 48 outlets—36 C13, 6 C19, and 6 5-15/20R—designed to accommodate a mix of servers, switches, storage, and ancillary devices in a compact 0U footprint.
- Three-phase 208/120V input for balanced loads: Supports efficient distribution in modern data centers and telecom rooms, helping to optimize cooling and optimize overall power usage across racks.
- Rugged rack-mount design for dense environments: 70 in. 0U rack compatibility ensures a clean, space-saving installation in standard IT cabinets while maintaining easy cable management and access.
- Flexible, industry-ready outlets: The combination of C13, C19, and 5-15/20R receptacles provides broad compatibility with a wide range of IT and A/V equipment, reducing the need for excessive adapters.
- Reliability from a trusted brand: Eaton Tripp Lite is recognized for durable, dependable power distribution solutions tailored to networking, security, data centers, and AV applications.
Technical Details of Eaton Tripp Lite Series 8.6kW 208/120V Three-Phase Basic PDU
- Power capacity: 8.6 kW
- Input voltage: 208/120 VAC
- Phase: Three-Phase
- Outlet configuration: 48 total outlets — 36 x C13, 6 x C19, 6 x 5-15/20R
- Input plug: L21-30P
- Cord length: 6 ft
- Rack compatibility: 70 in. 0U rack
- Type: Basic PDU (no-frills power distribution for network, telecom, security, audio/video, and more)
How to install Eaton Tripp Lite Series 8.6kW 208/120V Three-Phase Basic PDU
- Plan the layout in your cabinet: Verify that your rack and mounting space can accommodate a 70 in. 0U PDU and that there is clear access for cable management and serviceability.
- Power down equipment: Before installation, power down connected devices and ensure the main power supply in the rack area is de-energized to proceed safely.
- Mount the PDU in the rack: Align the PDU with the rack rails or mounting points appropriate for a 0U configuration. Secure it firmly using the provided hardware, ensuring stability and support for the weight of connected cables.
- Connect the input power: Attach the L21-30P input plug to the corresponding power source. Route the 6 ft cord neatly to avoid tension or interference with airflow and other components.
- Distribute loads to outlets: Connect servers, network gear, storage devices, and AV equipment to the 36 C13 outlets, 6 C19 outlets, and 6 5-15/20R outlets. Distribute loads evenly across phases to optimize performance and cooling.
- Cable management and labeling: Use cable ties or Velcro straps (where available) to bundle cables and maintain tidy pathways. Label outlets if needed to simplify maintenance and future changes.
- Power test and verification: Reconnect power, boot devices, and verify that all connected equipment receives stable supply. Check for even load distribution and confirm that any built-in indicators or monitoring features operate correctly.
Frequently asked questions
- Q: What kinds of equipment is this basic PDU best suited for?
- A: It’s ideal for networking gear, telecom equipment, security systems, AV applications, and general IT loads in small to mid-sized data centers, computer rooms, and network closets requiring reliable 208/120V three-phase power distribution.
- Q: How many outlets does it provide and what outlet types are included?
- A: It provides 48 outlets in total: 36 C13 outlets, 6 C19 outlets, and 6 5-15/20R outlets for versatile device connections.
- Q: What is the input configuration?
- A: The PDU uses a three-phase 208/120V input with an L21-30P plug and includes a 6 ft cord for flexible installation in many standard IT racks.
- Q: Is this PDU compatible with 0U rack installations?
- A: Yes. It is designed for 0U rack-mount installations and is specified for use in a 70 in. rack space, facilitating a low-profile footprint within the cabinet.
- Q: Can I manage power distribution more effectively with this PDU?
- A: While this is a basic PDU, it distributes power efficiently across multiple outlets and supports clean, organized cabling. For advanced monitoring and management features, consider integrating a PDU with additional monitoring capabilities.
