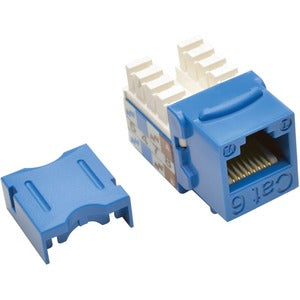

Eaton Tripp Lite Series Cat6/Cat5e 110 Style Punch Down Keystone Jack - Blue, 25-Pack, TAA

Introducing the Eaton Tripp Lite Series Cat6/Cat5e 110 Style Punch Down Keystone Jack - Blue, 25-Pack, TAA. This exceptional product is engineered to deliver flexibility and reliability in any Unshielded Twisted Pair (UTP) Ethernet environment. Whether you're establishing a home network, developing office infrastructure, or supporting a data center, this keystone jack serves as the perfect partner for seamless connectivity and optimal performance.

• Meets High-Performance Standards: The Eaton Tripp Lite Keystone Jack is built to adhere to the stringent standards of UL-certified ANSI/TIA/EIA-568-B.2-1, ensuring compliant and reliable installations. With support for performance up to CAT6 250MHz, it is ideal for high-speed data transfer.
• Versatile Compatibility: This keystone jack is suitable for both Cat5e and Cat6 installations, providing the versatility necessary to adapt to your networking needs. Its compact design allows for seamless integration into conventional face plates, outlet boxes, or panels.
• Dual-Color Coding for Easy Wiring: Featuring dual-color coded labeling that supports both 568A and 568B wiring schemes, the Eaton Tripp Lite Keystone Jack simplifies the installation process. The clear labeling allows for quick identification of the correct wiring method, minimizing errors during setup.
• 25-Pack for Cost Efficiency: Sold in a convenient 25-pack, this product allows you to stock up on keystone jacks without exceeding your budget. Ideal for contractors or DIY enthusiasts, this bulk package ensures you have enough jacks for multiple installations or future projects.
• Compliance with TAA Regulations: The Eaton Tripp Lite Keystone Jack is TAA compliant, making it suitable for GSA Schedule purchases. This compliance guarantees that you are investing in a product that meets governmental procurement standards.

Technical Details of the Product

• Type: Keystone Jack
• Compatible: Cat6/Cat5e
• Frequency: Up to 250MHz
• Wiring Schemes: 568A & 568B
• Compliance: UL, EIA/TIA CAT6, TAA
• Quantity: 25 jacks per pack

How to Install

Installing the Eaton Tripp Lite Keystone Jack is straightforward and can be accomplished in a few simple steps:

1. Prepare your Ethernet cable by stripping the outer insulation to expose the individual wires.
2. Follow the dual-color coding scheme (568A or 568B) printed on the keystone jack for proper wiring.
3. Carefully insert the individual wires into the corresponding slots on the punch-down terminal of the jack.
4. Use a punch-down tool to firmly secure the wires in place, ensuring a solid connection.
5. Finally, mount the keystone jack into a face plate, outlet box, or panel as needed.

Frequently Asked Questions

• What is the maximum data transfer speed supported by these keystone jacks? The Eaton Tripp Lite Keystone Jack supports data transfer speeds up to 1 Gbps when used in Cat6 installations.
• Can I use these keystone jacks in outdoor installations? These keystone jacks are designed for indoor use. For outdoor installations, consider using specialized outdoor-rated keystone jacks.
• Do I need special tools to install the keystone jacks? While installation can be completed without specialized tools, using a punch-down tool is recommended for ensuring a secure and reliable connection.
• Are these keystone jacks compatible with other brands? Yes, the Eaton Tripp Lite Keystone Jacks are designed for compatibility with standard keystone face plates and panels from various manufacturers.
• Is the 25-pack suitable for small installations or should I buy in bulk? The 25-pack is perfect for small to medium installations. If you are a contractor or plan to execute larger projects, consider purchasing multiple packs for cost-effectiveness.
