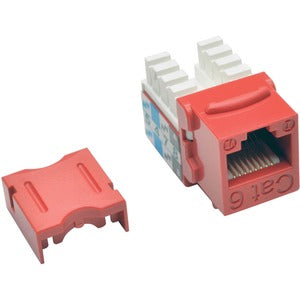

Cat6/Cat5e 110-Style Punch Down Keystone Jack – Red, 25-Pack, TAA

Elevate your Ethernet installations with Eaton Tripp Lite’s Cat6/Cat5e 110 Style Punch Down Keystone Jacks. This red 25-pack delivers flexible termination for Cat5e and Cat6 UTP networks, combining dependable performance with easy upgrades for evolving networks. Designed for professional data centers, offices, classrooms, and facility upgrades, these keystone jacks meet UL-certified ANSI/TIA/EIA-568-B.2-1 standards for Permanent Link/Channel Identification testing on Cat6 cabling, ensuring reliable performance and straightforward certification. With a compact, modular form factor, they integrate seamlessly into standard faceplates and patch panels while providing clear, color-coded identification that speeds installation and reduces errors.

Whether you’re wiring a new build or upgrading an existing network, these keystone jacks offer the versatility your projects demand. The Cat6/Cat5e compatibility allows you to support legacy Cat5e applications while paving the way for higher-speed Cat6 deployments, all in a single, cost-effective package. The red housing provides instant visual differentiation in cable runs and network segments, helping technicians manage complex installations with confidence. Built to endure the rigors of busy IT environments, these jacks combine durable construction with rigorous testing standards to deliver consistent performance over the life of your network.

• Flexible compatibility for Cat5e and Cat6 UTP cabling: Terminate Cat5e and Cat6 networks with a single, reliable 110-style punch-down keystone jack designed for fast, secure terminations and hassle-free upgrades.
• Certified performance and compliance: UL-listed and ANSI/TIA/EIA-568-B.2-1 compliant, with support for Permanent Link/Channel Identification testing on Cat6 installations to simplify certification and diagnostics.
• Durable, color-coded red housing: High-visibility color helps technicians rapidly identify ports, while robust materials and plated contacts ensure long-lasting connectivity in dense racks and panels.
• Modular, space-saving design: Fits standard faceplates and patch panels, enabling tidy, scalable network layouts in data centers, office floors, classrooms, and telecom rooms.
• Cost-effective, bulk packaging: 25-pack offers value for large-scale deployments, with TAA-compliant construction suitable for government and enterprise procurement.

Technical Details of Eaton Tripp Lite Series Cat6/Cat5e 110 Style Punch Down Keystone Jack

• Type: Cat6/Cat5e 110 Style Punch Down Keystone Jack
• Color: Red
• Pack Size: 25-per-pack
• Cable Compatibility: Unshielded Twisted Pair (UTP) Cat5e and Cat6
• Termination: 110-style punch-down
• Connection: RJ45 8P8C
• Mounting: Keystone jack for standard faceplates and patch panels
• Compliance: UL-listed; ANSI/TIA/EIA-568-B.2-1; TAA compliant
• Identification: Supports Permanent Link/Channel Identification testing for Cat6 installations

How to install Eaton Tripp Lite Series Cat6/Cat5e 110 Style Punch Down Keystone Jack

• Plan your cabling layout to determine the exact location of each keystone jack and ensure the pathway supports the required cable radius and bend limits.
• Prepare the Cat5e or Cat6 cable by stripping the outer jacket back approximately 1 inch (25 mm) and neatly arranging the wire pairs without excessive untwisting.
• Untwist each pair just enough to reach the termination slots on the 110-style jack, following the 568B color code: orange, green, blue, and brown pairs.
• Insert each conductor into its corresponding color-matched slot on the jack and use a 110-style punch-down tool to terminate the wires securely to the contacts.
• Inspect the terminated wires for a clean, even seating in the slots; trim any excess lead flush with the jack if needed to prevent interference with the modular faceplate.
• Snap the punched-down keystone into the faceplate or patch panel module and secure the assembly in its intended location. Route any cable slack to prevent strain on the termination.
• Test the installed link with a certified network tester to verify continuity, pair integrity, and overall performance. Confirm proper channel identification and compliance with Cat6 or Cat5e specifications as applicable.

Frequently asked questions

• Q: What networks are these jacks compatible with? A: The jacks are designed for Cat5e and Cat6 Unshielded Twisted Pair (UTP) cabling, supporting a broad range of Ethernet deployments from legacy to higher-speed applications.
• Q: How many jacks are in a pack? A: Each pack contains 25 keystone jacks, making bulk deployments and large-scale projects cost-effective.
• Q: Are these jacks TAA compliant? A: Yes, the jacks are TAA compliant, suitable for procurement by government and enterprise buyers.
• Q: What color are the jacks, and does the color matter? A: The jacks are red, which provides quick visual identification to help organize ports and network segments in complex installations.
• Q: Are these UL-listed and ANSI certified? A: Yes, they are UL-listed and ANSI/TIA/EIA-568-B.2-1 compliant, ensuring reliable performance and certification compatibility for Cat6 installations.
