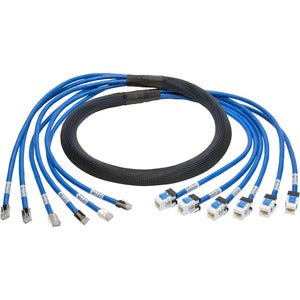

Eaton Tripp Lite Series Cat6a 10G Pre-Terminated Copper Trunk Assembly (6x RJ45 M/F), Blue, 6 ft. (1.83 m)

The Eaton Tripp Lite Series Cat6a 10G Pre-Terminated Copper Trunk Assembly (6x RJ45 M/F), Blue, 6 ft. (1.83 m) is the ultimate solution for your networking requirements. Engineered for maximum efficiency, this 6-foot assembly enhances your data center installations, optimizing performance while saving time and resources. With factory-terminated and rigorously tested cables, you can concentrate on what truly matters—your connectivity.

• Effortless Installation: The N261-006-6MF-BL is fully factory-terminated, bundled, and tested. This ensures that anyone can set it up quickly and efficiently, providing a hassle-free installation process that saves both time and effort.
• Enhanced Cable Management: With six certified and channel-tested Cat6a cables bundled together, this assembly significantly reduces cable clutter. It helps maintain a clean and organized data cabinet, which is essential for effective network management.
• Superior Connection Quality: Each end of the assembly features an unshielded female RJ45 keystone jack and a male RJ45 plug with gold-plated 50µ contacts, ensuring optimal connectivity and minimal signal loss for reliable data transmission.
• Robust Construction: Constructed with 23 AWG solid conductor wire, the assembly is built for durability. Its blue CMR-rated PVC jacket provides excellent robustness and flame resistance, making it suitable for various indoor installations.
• Quick Identification: The assembly includes 18-inch breakout legs conveniently labeled on the ends, allowing quick identification and easy patching in switches and patch panels. This feature simplifies network management and troubleshooting.

Technical Details

• Product Name: Eaton Tripp Lite Series Cat6a 10G Pre-Terminated Copper Trunk Assembly
• Part Number: N261-006-6MF-BL
• Cable Type: Augmented Cat6a
• Length: 6 ft. (1.83 m)
• Conductor Gauge: 23 AWG Solid Conductor Wire
• Jacket Material: CMR-rated PVC
• Connector Types: 6x RJ45 M/F (Unshielded Female RJ45 Keystone Jack and Male RJ45 Plug)
• Gold-Plated Contacts: 50µ
• Certification: Meets or exceeds ANSI/TIA-568-C.2 standards
• Backward Compatibility: Compatible with Cat6 and Cat5e installations

How to Install

Installing the Eaton Tripp Lite Series Cat6a Trunk Assembly is straightforward. Follow these simple steps for a seamless setup:

1. Unpack the assembly and ensure all components are intact.
2. Identify the labeled breakout legs for easy patching.
3. Connect the male RJ45 plug into the appropriate networking device (switch, router, etc.).
4. Use the female RJ45 keystone jack to connect to the patch panel or wall outlet.
5. Once connected, verify the integrity of the connection by testing the network functionality.

Frequently Asked Questions

What is the maximum data transfer rate of this assembly?

The Eaton Tripp Lite Series Cat6a assembly supports a maximum data transfer rate of 10 Gbps.

Is this assembly suitable for outdoor use?

No, the Eaton Tripp Lite Series Cat6a assembly is designed for indoor use only. Ensure proper installation in dry, ventilated areas.

Can I use this assembly with older Cat6 or Cat5e equipment?

Yes, the assembly is backward compatible with Cat6 and Cat5e installations, allowing for flexible use in your networking environment.

How does the labeling on the breakout legs help?

The labeling on the breakout legs simplifies the identification process, making it easier to manage and patch your network connections efficiently.

What testing has been done on this assembly?

All cables in the assembly are 100% factory-terminated, bundled, and tested to ensure they meet or exceed ANSI/TIA-568-C.2 performance standards.
