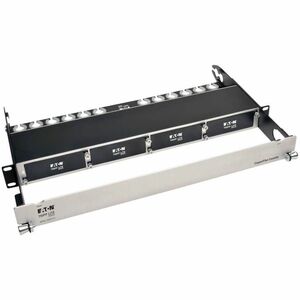

Eaton Tripp Lite Series Copper/Fiber Enclosure for 4 High-Density Cassettes, 1U

The Eaton Tripp Lite Series Copper/Fiber Enclosure for 4 High-Density Cassettes, 1U, offers an efficient way to manage your networking equipment while ensuring a compact and organized setup. This innovative and versatile enclosure is designed to fit standard 19" racks and supports up to four high-density cassettes, making it ideal for modern networking applications. With flexibility in connectivity and a range of compatible cassettes, this enclosure is the perfect solution for both small and medium enterprises (SMEs) and larger setups.

• Space-efficient Design: The N484-01U features a sleek 1U design, allowing you to optimize your rack space while accommodating multiple networking connections effortlessly.
• Versatile Connectivity: This enclosure supports a variety of cassettes such as 10Gb, 40Gb, and 100/120Gb options, enabling seamless integration with existing networking equipment.
• Passive SFP+ Hub: The innovative N484-12SFP-K passive SFP+ hub cassette ensures distributed redundancy between multiple 40Gb devices, enhancing reliability and performance.
• Easy Installation: Designed for hassle-free setup, the Eaton Tripp Lite enclosure connects easily to your existing cabling infrastructure, making it a perfect choice for SMEs.
• High Port Density: With the capability to support up to 48 ports of Duplex LC, MTP, CAT5e/6 RJ45, or SFP+, this enclosure meets the growing demands of today’s networking applications.

Technical Details of the Product

• Model: N484-01U
• Rackmountable: Yes (19" standard)
• Height: 1U
• Cassette Capacity: Up to 4 High-Density Copper/Fiber cassettes
• Supported Cassettes: LC, MTP fiber, SFP+, RJ45 copper
• Port Density: Up to 48 ports (Duplex LC, MTP, CAT5e/6 RJ45, SFP+)
• Passive Hub: Yes (N484-12SFP-K)
• Compatibility: Supports 10Gb, 40Gb, and 100/120Gb equipment

How to Install

Installing the Eaton Tripp Lite enclosure is a straightforward process. Follow these simple steps for a hassle-free setup:

1. Select a suitable 19" rack to mount the enclosure.
2. Secure the N484-01U chassis to the rack using the provided screws and mounting brackets.
3. Choose your desired cassettes based on your networking requirements and insert them into the chassis.
4. Connect the appropriate cables to the cassettes, ensuring that all connections are secure.
5. Once everything is connected, power on your devices and perform a quick functionality check.

Frequently Asked Questions

• What types of cassettes can I use with the N484-01U? You can choose from a range of cassettes, including LC, MTP fiber, SFP+, and RJ45 copper, depending on your networking needs.
• How many ports does the enclosure support? The N484-01U can support up to 48 ports of Duplex LC, MTP, CAT5e/6 RJ45, or SFP+.
• Is the N484-12SFP-K hub cassette compatible with all devices? The N484-12SFP-K is designed for use with 40Gb devices, providing redundancy across multiple connections.
• Can I use this enclosure in a small business environment? Yes, the Eaton Tripp Lite enclosure is especially well-suited for Small and Medium Enterprises (SMEs) needing efficient network management.
• Is there any heat emitted from the passive hub? The N484-12SFP-K hub cassette is fully passive, meaning it adds no additional heat or cooling load to your setup.
