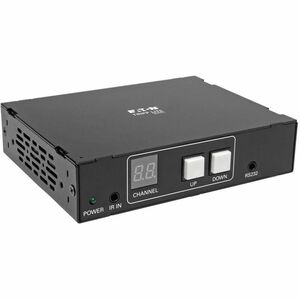

Eaton Tripp Lite Series DisplayPort to DVI/HDMI over Cat5/6 Extender Kit, 1080p 60 Hz, Serial and IR Control, 328 ft. (100 m), TAA

Effortlessly distribute high-definition DisplayPort video and audio from a laptop, media server, or other DP source to DVI or HDMI displays across long distances with this robust transmitter/receiver extender kit. Built for digital signage, classrooms, trade show booths, and corporate environments, the kit delivers crisp 1080p video at 60 Hz over standard Cat5/6 cables, while enabling RS-232 serial and IR control for remote management. Designed to meet demanding commercial needs, it supports ongoing operation, reliable signal integrity, and convenient installation in busy venues. Whether you’re extending content in a lecture hall, mounting displays around a showroom floor, or delivering synchronized content across multiple displays, this extender kit provides a flexible solution that integrates with existing infrastructure.

• Long-distance, high-definition extension: Extend DisplayPort video and audio, plus RS-232 serial and IR control, up to 328 ft (100 m) over standard Cat5/6 cable for flexible installations in schools, offices, and venues.
• 1080p 60 Hz performance: Delivers crisp, fluid HD video with digital audio from a DisplayPort source to a DVI or HDMI display, ensuring your content remains engaging and readable from a distance.
• Display compatibility and versatility: Transmitter connects to a DisplayPort source and outputs to a DVI or HDMI display at the remote end, supporting digital signage boards, projectors, LCD panels, and LED walls that accept DVI/HDMI inputs.
• Remote control and management: RS-232 serial and IR remote control capabilities enable centralized management of displays and media players, ideal for wall-mounted kiosks, classrooms, trade show booths, and multi-display networks.
• Commercial-grade reliability and compliance: TAA-compliant construction is built for frequent use in education, enterprise, and government deployments, offering dependable performance in demanding environments.

Technical Details of Eaton Tripp Lite Series DisplayPort to DVI/HDMI over Cat5/6 Extender Kit

• Video and audio transmission: Extends DisplayPort video and audio to a DVI or HDMI display over Cat5/6 cabling
• Maximum distance: Up to 328 ft (100 m) between transmitter and receiver
• Supported resolution: Up to 1080p at 60 Hz
• Control interface: RS-232 serial and IR remote control support for remote management
• Connectors and outputs: Transmitter to DisplayPort source; receiver to DVI/HDMI display
• Compliance: TAA-compliant design suitable for government, education, and enterprise deployments
• Power requirements: Includes power adapters for both transmitter and receiver units

How to install Eaton Tripp Lite Series DisplayPort to DVI/HDMI over Cat5/6 Extender Kit

• Plan your layout: Determine the locations of the DisplayPort source, transmitter, receiver, and target display. Confirm that Cat5/6 cabling between the transmitter and receiver runs unobstructed within the 328 ft (100 m) maximum distance.
• Connect the DisplayPort source: Attach a DisplayPort cable from your computer, laptop, or media server to the transmitter’s DisplayPort input. Ensure the source device is powered on and set to an output resolution compatible with 1080p60.
• Link the display side: Connect a DVI or HDMI cable from the receiver’s DVI/HDMI output to your display. Confirm the display is set to the correct input (DVI or HDMI) and that it’s powered on.
• Run Cat5/6 cabling: Use standard Cat5/6 cables to connect the transmitter and receiver. For best results, use high-quality cables and avoid channels with excessive interference or multiple bundles that could affect signal integrity.
• Power up: Plug in the power adapters for both the transmitter and receiver units. Allow the units to boot and establish a link; indicator LEDs on each unit will confirm connectivity.
• Configure and test: If needed, adjust EDID settings or resolution on the source to ensure compatibility with the remote display. Test RS-232 and IR control by sending commands from the control device to verify remote management is functioning correctly.
• Optimize placement: Mount or position the units to minimize environmental interference and ensure easy access for maintenance. Route cables neatly to reduce wear and accidental unplugging.

Frequently asked questions

• Q: What is the maximum distance between the transmitter and receiver? A: Up to 328 ft (100 m) using Cat5/6 cable.
• Q: What resolutions does it support? A: It supports up to 1080p at 60 Hz for reliable, high-definition video.
• Q: Which displays are compatible? A: The receiver outputs to DVI or HDMI displays, so any monitor, projector, or LED wall with DVI or HDMI input can be used.
• Q: Does this kit carry audio along with video? A: Yes, it extends DisplayPort video and audio from the source to the remote display.
• Q: Can RS-232 and IR control be used for remote management? A: Yes, the kit includes RS-232 serial and IR control capabilities for centralized or remote operation.
• Q: Is the kit suitable for government or enterprise deployments? A: The product is designed as a commercial-grade extender and is TAA-compliant, making it appropriate for such environments.
