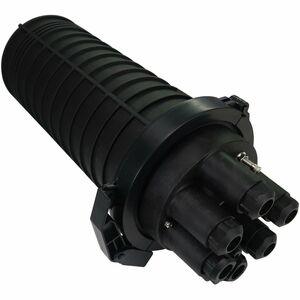

Eaton Tripp Lite Series Fiber Splice Dome Enclosure — 144-Fiber Capacity, IP68 Rated

Designed for rugged outdoor fiber networks, the Eaton Tripp Lite Series Fiber Splice Dome Enclosure delivers durable protection, top-grade reliability, and on-site splicing flexibility. The compact N600D-0144-6 model is engineered to accommodate six splice trays and up to 24 unterminated cables, giving installers the freedom to adjust fiber lengths and connection types right at the job site. With an IP68 rating and weatherproof construction, this enclosure shields delicate splices from rain, dust, UV exposure, and temperature swings, ensuring long-term network performance even in challenging environments. Its modular design and compact footprint make it a versatile choice for street cabinets, pedestal deployments, or underground installations where space is precious but capacity counts. Whether you’re building a new fiber backbone or expanding an existing network, this dome enclosure provides a scalable, reliable solution that reduces downtime and simplifies field splicing.

• Six splice trays accommodate up to 24 unterminated cables, delivering on-site splicing flexibility and the ability to adjust cable lengths and connection types as your network evolves.
• High fiber capacity with support for 144 fibers, enabling dense deployments while keeping a compact, orderly enclosure footprint for outdoor installations.
• IP68-rated protection guarantees robust ingress resistance against water, dust, and immersion, safeguarding splices in wet and harsh outdoor conditions.
• Rugged, weatherproof construction designed for outdoor use, with a modular interior that simplifies maintenance, upgrades, and future expansions.
• Designed for versatile deployment (underground or above-ground), the enclosure blends compatibility with existing fiber networks and offers dependable performance in a variety of field environments.

Technial Details of Eaton Tripp Lite Series Fiber Splice Dome Enclosure

• Model: N600D-0144-6
• Splice trays: 6
• Fiber capacity: 144 fibers
• Ingress protection: IP68 rated
• Application: Outdoor fiber cable runs and on-site splicing
• Design: Compact, scalable splice dome enclosure suitable for harsh environments

how to install Eaton Tripp Lite Series Fiber Splice Dome Enclosure

To maximize protection and performance, follow these general installation steps. Always refer to on-site safety guidelines and local codes when working with outdoor fiber networks.

1) Plan and prepare: Determine the routing path for the outdoor fiber cables, ensuring a clean descent into the enclosure and an accessible work area for splicing. Verify that the mounting surface or pedestal has adequate support, drainage, and clearance for the six splice trays and associated cable management components.

2) Mount the enclosure: Secure the dome enclosure to its designated surface or pedestal per manufacturer guidance. Ensure the installation provides proper weather sealing and strain relief for incoming and outgoing cables to prevent movement that could stress splices.

3) Access and organize splices: Open the enclosure and lay out the six splice trays. Route incoming fibers into the trays with careful attention to bend radii and fiber integrity. Maintain clear labeling and separation of fibers to simplify future maintenance and troubleshooting.

4) Splice and terminate: Perform fiber splicing within the trays using your preferred fusion or mechanical splice methods. Verify each terminated fiber for continuity and attenuation, then secure splices within the trays to prevent movement or abrasion. Use proper sealing to maintain the enclosure’s IP68 integrity.

5) Seal, test, and close: After splicing is complete, re-check all connections, secure all cabling, and confirm seals are intact to preserve waterproof performance. Close the dome and perform a final weatherproof test if required. Label cables and maintain a clean, documented splicing map for future maintenance and upgrades.

Tips for long-term reliability: Use appropriate cable glands and grommets to seal ingress points, follow bend radius guidelines for all fibers, and keep spare fibers organized near the trays for rapid reconfiguration. Regularly inspect seals and gaskets, especially after severe weather, to ensure continued IP68 protection.

Frequently asked questions

• What is the purpose of the IP68 rating on this enclosure? The IP68 rating indicates a high level of protection against water and dust intrusion, making the enclosure suitable for outdoor use and immersion-prone environments where robust sealing is essential.
• How many fibers can the enclosure hold, and how is capacity organized? The enclosure supports up to 144 fibers across six splice trays, allowing on-site splicing of numerous fiber strands while keeping organization and accessibility intact.
• Can this dome enclosure be installed both underground and above ground? Yes. It is designed for versatile deployments, including underground pedestals or above-ground mounting in cabinets or on poles, depending on project requirements.
• What makes this enclosure suitable for on-site splicing? With six splice trays and a configurable interior, technicians can perform splicing and adjustments on site, reducing the need for remote terminations and enabling faster network deployment or upgrades.
• Where can I find more detailed specifications or installation instructions? Detailed specifications and installation guidelines are typically available from the manufacturer’s datasheet or official product pages. For the most accurate information related to model N600D-0144-6, consult the product documentation or supplier specifications.
