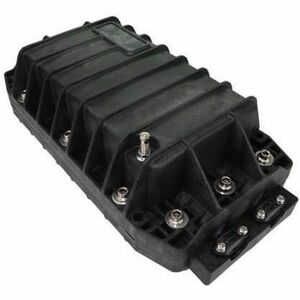

Eaton Tripp Lite Series Fiber Splice Horizontal Enclosure - 4 Splicing Trays, 96 Fiber Capacity, IP68 Rated

Tripp Lite by EatonSKU: 9611535

Price:
Sale price$368.55

Description

Eaton Tripp Lite Series Fiber Splice Horizontal Enclosure - 4 Splicing Trays, 96 Fiber Capacity, IP68 Rated

Engineered for rugged outdoor fiber deployments, the Eaton Tripp Lite Series Fiber Splice Horizontal Enclosure provides durable protection and flexible on-site splicing capability. With four splice trays and a total fiber capacity of up to 96 fibers, this enclosure makes it easy to manage long cable runs, perform repairs, and adapt to changing network layouts without taking your system offline. The IP68 rating signifies complete dustproof protection and water ingress resistance, ensuring reliable performance in rain, snow, and direct exposure to the elements. Whether you're building a new fiber network, expanding an existing one, or replacing an aging outdoor splice enclosure, the N600H-009 model is designed to simplify installation and maintenance while delivering long-lasting protection and performance.

  • 4-tray design provides scalable on-site splicing and cable management: Each tray accommodates up to 24 unterminated cables, enabling you to stage connections, adapt to field changes, and keep splices organized for easy future upgrades. This modular arrangement reduces downtime during maintenance, allowing you to pre-terminate and label cables while keeping the live network protected. The trays are designed for quick access, so you can reconfigure connections and re-bundle fibers without removing the enclosure from its mounted position.
  • High fiber density and space efficiency: The four-tray configuration supports up to 96 fibers, giving your network the capacity to handle growth while maintaining a compact footprint in outdoor environments. The interior layout minimizes fiber crossings, simplifies testing and labeling, and preserves fiber bend radii to prevent signal loss. With thoughtful tray spacing and standardized tray adapters, you can streamline inventory management and field upgrades for large-scale deployments.
  • IP68 weatherproof protection for harsh environments: The enclosure's sealing and rugged construction keep out dust, moisture, and debris, preserving splice integrity and reducing maintenance cycles in outdoor installations. Seals and gaskets are specified to maintain performance across temperature swings, and gland entries are designed to preserve IP68 integrity while allowing multiple conduit or cable entries for flexible routing in complex installations.
  • User-friendly, serviceable design: Access splices and pigtails quickly, reconfigure connections on-site, and perform field upgrades without removing the enclosure from its mounting location. The design emphasizes straightforward tray handling, clear labeling, and intuitive layout, which helps technicians locate and service individual splices fast. This practicality translates to lower field labor costs and faster restoration of service when changes are needed.
  • Flexible mounting and integration options: Suitable for wall or pole mounting, compatible with standard fiber routing practices, and designed to withstand vibration and impact in outdoor telecom and data networks. The enclosure supports organized cable routing with built-in cable management features and strain relief for long-term reliability, ensuring that delicate fiber connections stay protected in challenging environments.

Technical Details of Eaton Tripp Lite Series Fiber Splice Horizontal Enclosure

  • SKU/Model: N600H-009
  • Enclosure type: Fiber Splice Horizontal Enclosure
  • Splice Trays: 4
  • Fiber Capacity: Up to 96 fibers (24 fibers per tray)
  • IP Rating: IP68
  • Application: Outdoor fiber optic network protection and on-site splicing
  • Mounting: Wall or pole mounting options
  • Sealing/Gland entries: Sealed design with glands to maintain IP68 integrity
  • Protection level: Weatherproof, dust-tight and resistant to moisture intrusion

how to install Eaton Tripp Lite Series Fiber Splice Horizontal Enclosure

  • Plan and select an installation site with adequate clearance for access, cable management, and service workflows; verify that the mounting surface can support the enclosure and any additional weight from spliced cables.
  • Mount the enclosure on the chosen wall or pole using secure hardware appropriate for the substrate and environment; ensure the unit is level and firmly fixed to withstand outdoor conditions and wind loads.
  • Install sealing glands for each cable or conduit entry and route incoming and outgoing fiber cables with careful attention to bend radius and slack; secure cables to minimize movement and strain at entry points.
  • Open the enclosure, place the four splice trays, and organize unterminated cables within their respective trays; label fibers to ensure clear identification for future maintenance or re-splicing.
  • Perform the fiber splicing and termination according to your network plan, then reseal the enclosure, close the cover securely, and conduct continuity and loss testing to verify performance before putting the system back into service.

Frequently asked questions

  • Q: How many fibers can the enclosure hold? A: Up to 96 fibers across four trays (24 fibers per tray), enabling dense outdoor splicing in a single enclosure.
  • Q: Is this enclosure suitable for outdoor use? A: Yes. It carries an IP68 rating, offering dust-tight protection and resistance to water ingress in harsh outdoor environments.
  • Q: Can the enclosure be mounted on a wall or a pole? A: Yes. It is designed for versatile mounting options to fit different installation scenarios in telecom and data networks.
  • Q: Does the package include the splice trays? A: Yes. The enclosure ships with four splice trays pre-sized to accommodate up to 96 fibers in total.
  • Q: What is the model/SKU and where can I find specifications? A: Model N600H-009. For exact dimensions, materials, and compliance details, refer to the manufacturer’s specifications.
